Circuit Diagram-without Defogger

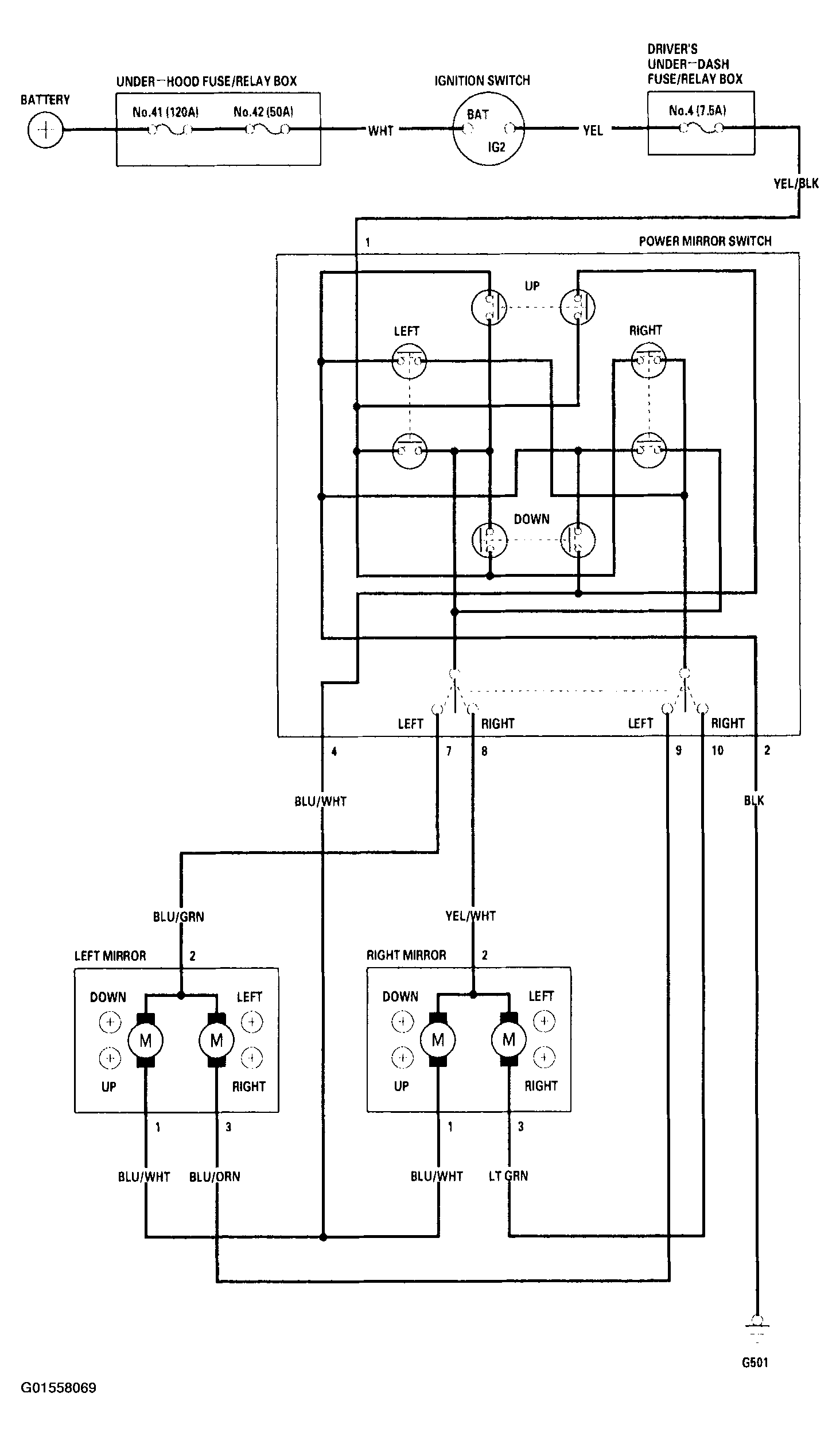

Fig 1: Power Mirror Circuit Diagram (Without Defogger)
G01558069Courtesy of AMERICAN HONDA MOTOR CO., INC.
