Front Toe Inspection/Adjustment
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow the equipment manufacturer's instructions.
- Check the tire pressure.
- Center the steering wheel spokes and install a steering wheel holder tool.
- Check the toe with the wheels pointed straight ahead.
Front toe-in: 0+/-2 mm (0+/-1/16 in.)
- If adjustment is required, go to step 4.
- If no adjustment is required, remove the alignment equipment.

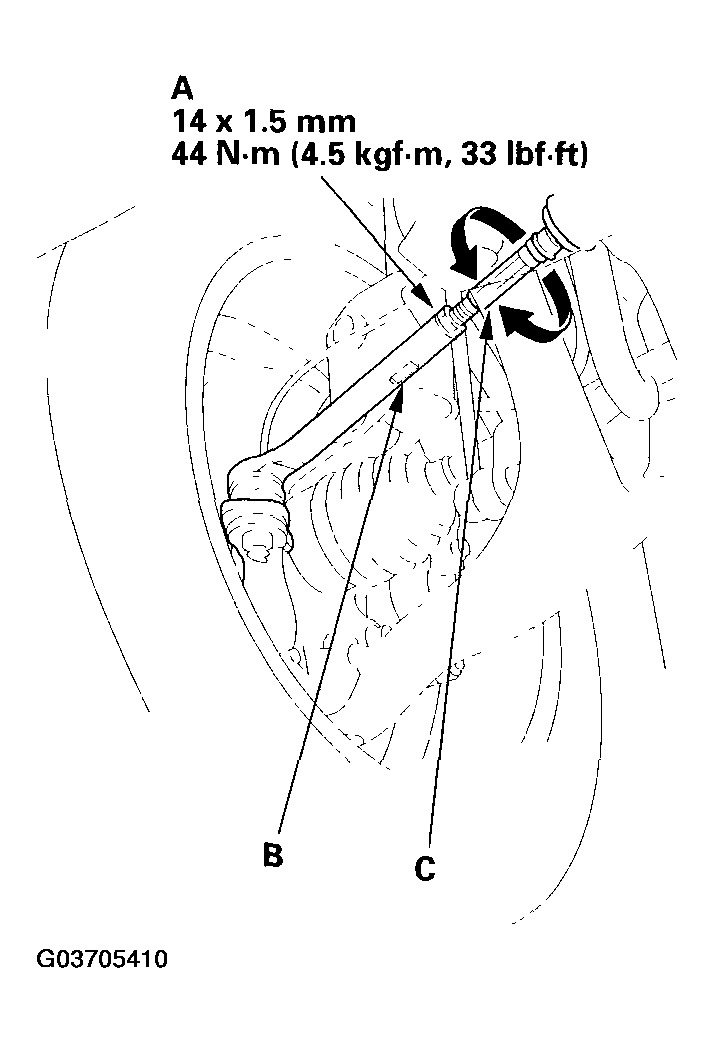

- Loosen the tie-rod locknuts (A) while holding the flat surface sections (B) of the tie-rod end with a wrench. Turn both tie-rods (C) until the front toe is within specifications.
- After adjusting, tighten the tie-rod locknuts. Reposition the rack-end boot if it is twisted or displaced.
