Climate Control Unit Removal and Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box housing (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the connector (A) from the climate control unit (B), then remove the self-tapping screws and the climate control unit.

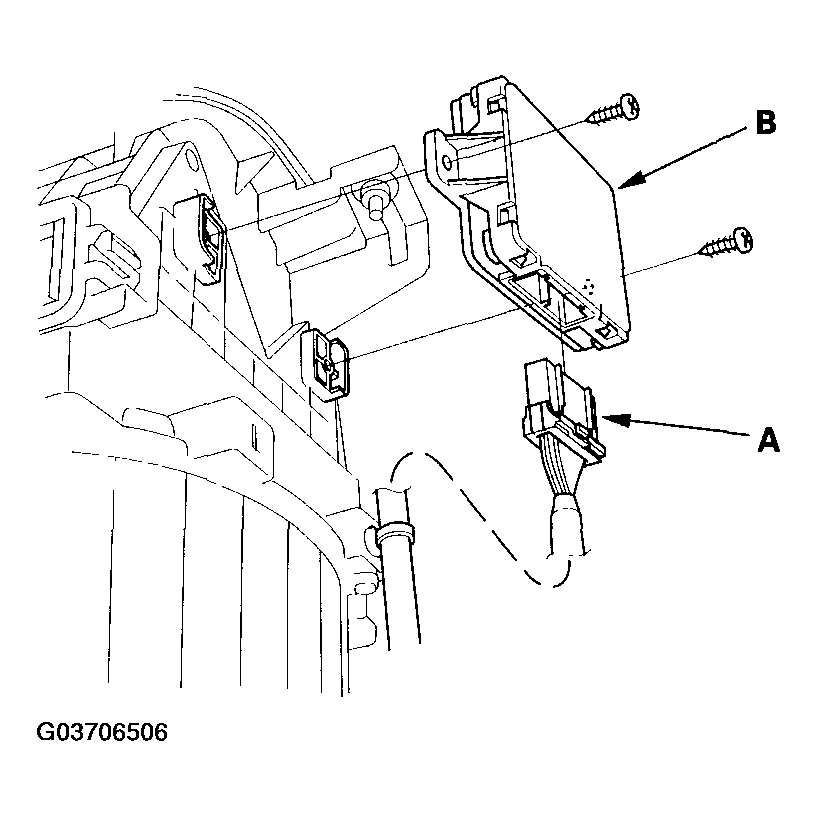

Fig 1: Removing Self-Tapping Screws And Climate Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. After installation, operate the various functions to see whether works properly.
Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
