Active Noise Control Unit Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.
Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the audio unit (with navigation) (see AUDIO UNIT REMOVAL/INSTALLATION ) or center pocket (without navigation) (see CENTER POCKET REMOVAL/INSTALLATION ).
Disconnect the connector (A), then remove the bolts and the active noise control unit (B).

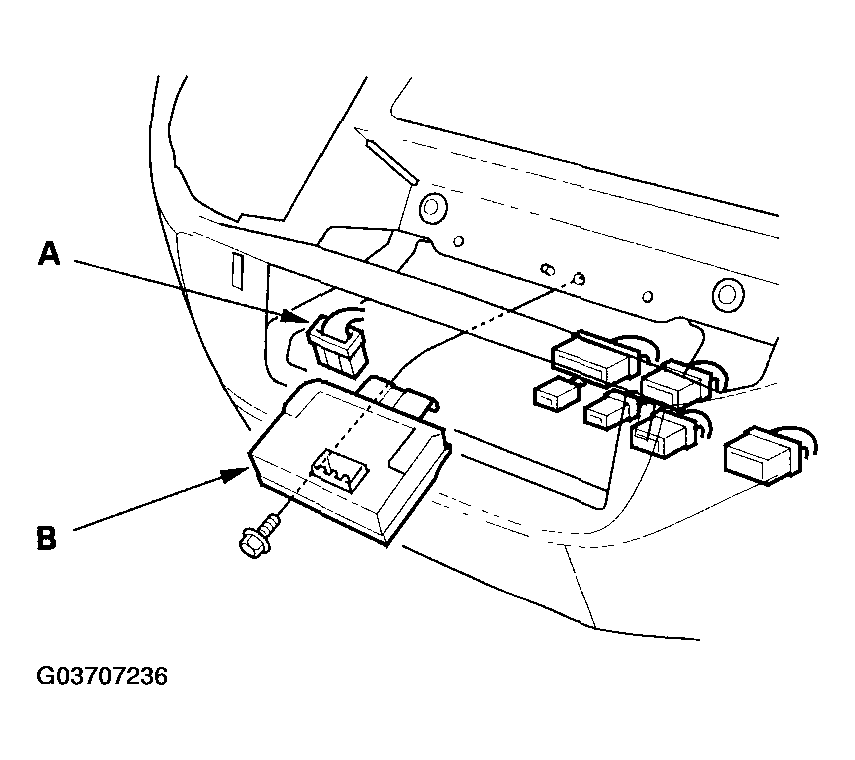

Fig 1: Removing Active Noise Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
