Log Data: Notes

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This screen allows the factory to collect log data to troubleshoot navigation system issues.

Normally there is no card in the "PC Card Slot", and the PC slot door should always be closed. The screen should look like Fig 1 .

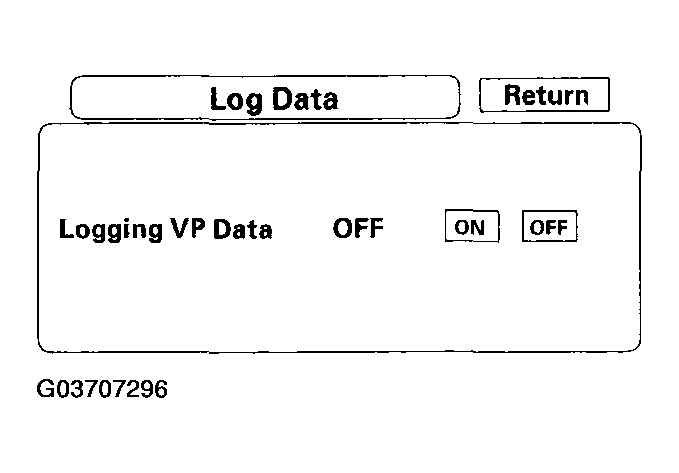

Fig 1: Log Data Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
However, if the factory provides a PC card, insert it into the card slot (label side up), and then slide the PC Card door shut. If instructed by the factory, select "Gyro. Sensor Logs ON". Follow the factory procedure for gathering test data and properly ending the test.

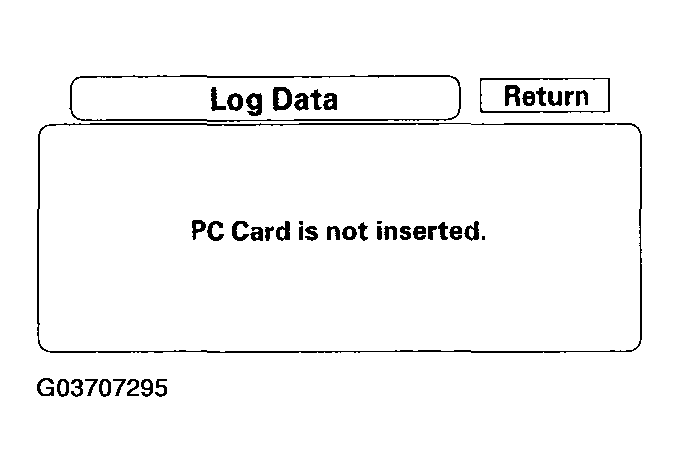

Fig 2: Log Data Return Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
