Component location Index

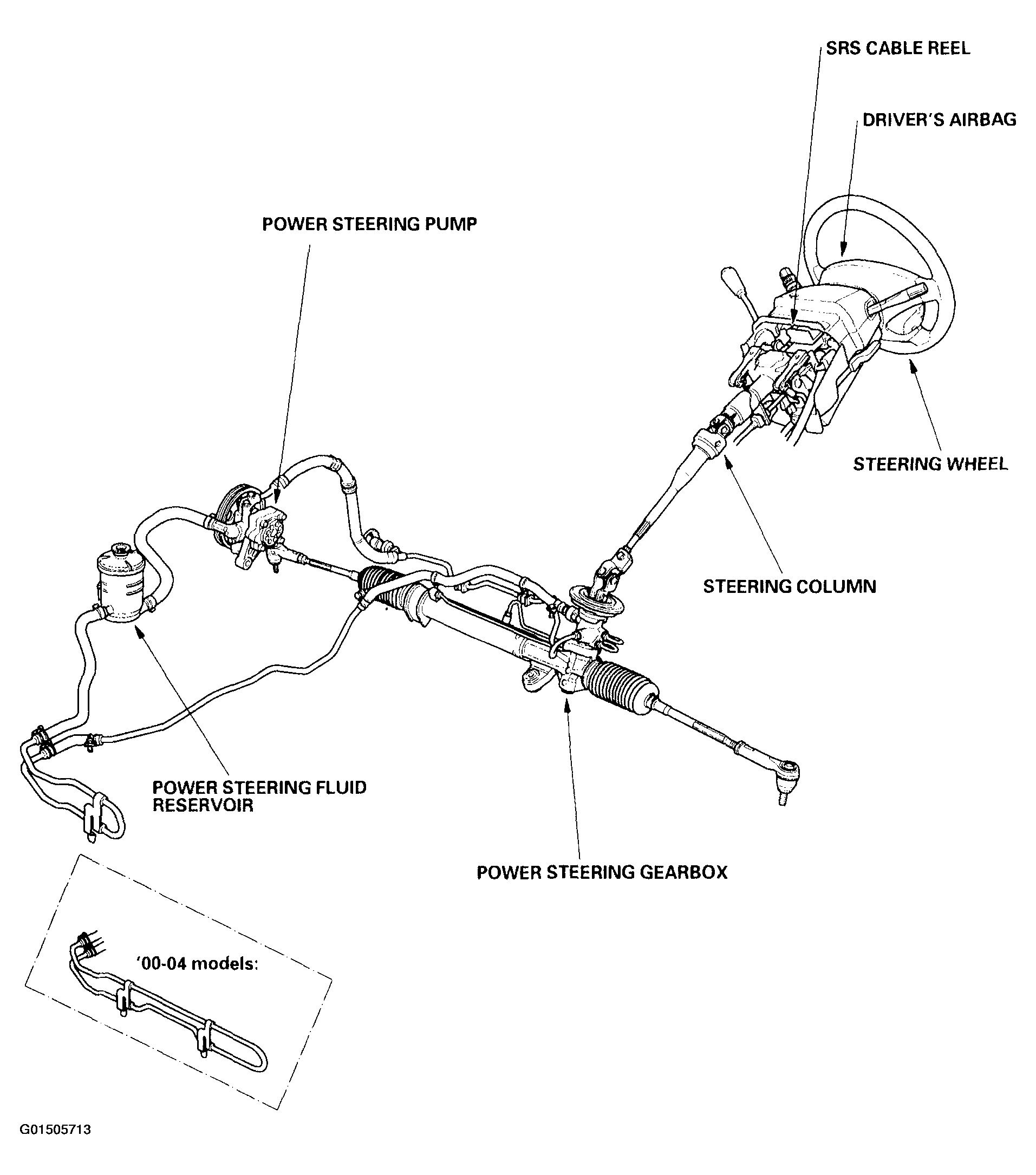

Fig 1: Identifying Power Steering Components
G01505713Courtesy of AMERICAN HONDA MOTOR CO., INC.
