Caster Adjustment: S2000

If caster needs adjustment, raise and support front of vehicle. Hold flange bolt on rear of lower arm and loosen self-locking nut. Turn adjusting cam collar until caster is correct. See Fig 1 . After adjusting, tighten self-locking nut while holding flange bolt. See TORQUE SPECIFICATIONS  .

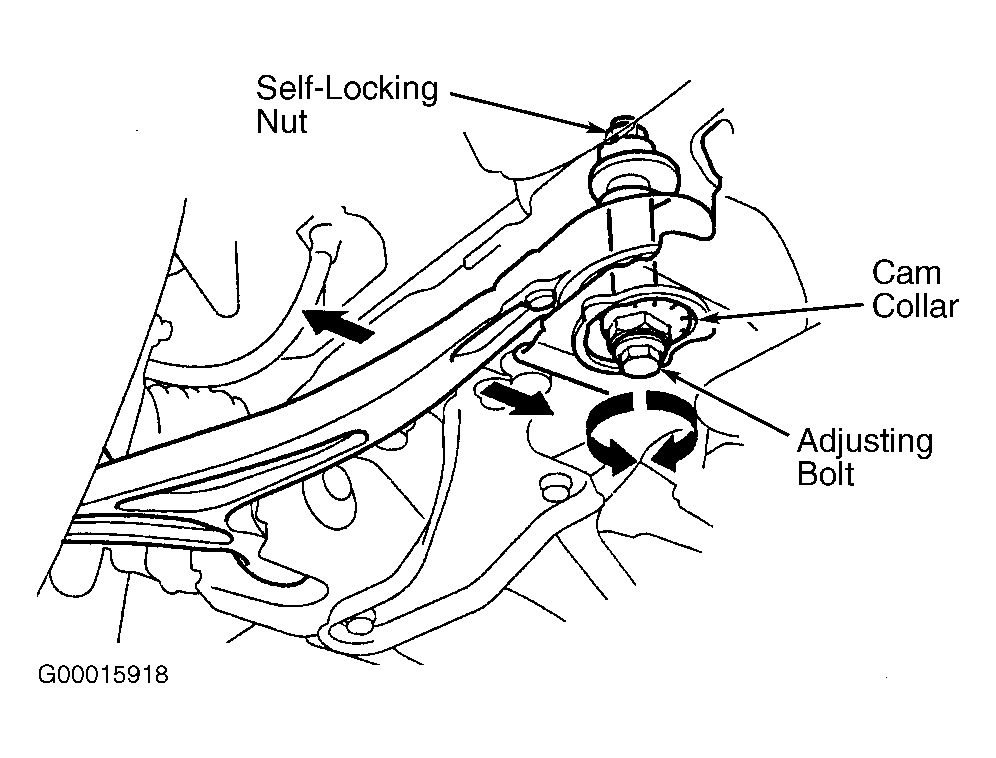

Fig 1: Adjusting Caster (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
