ECM/PCM Terminal Values

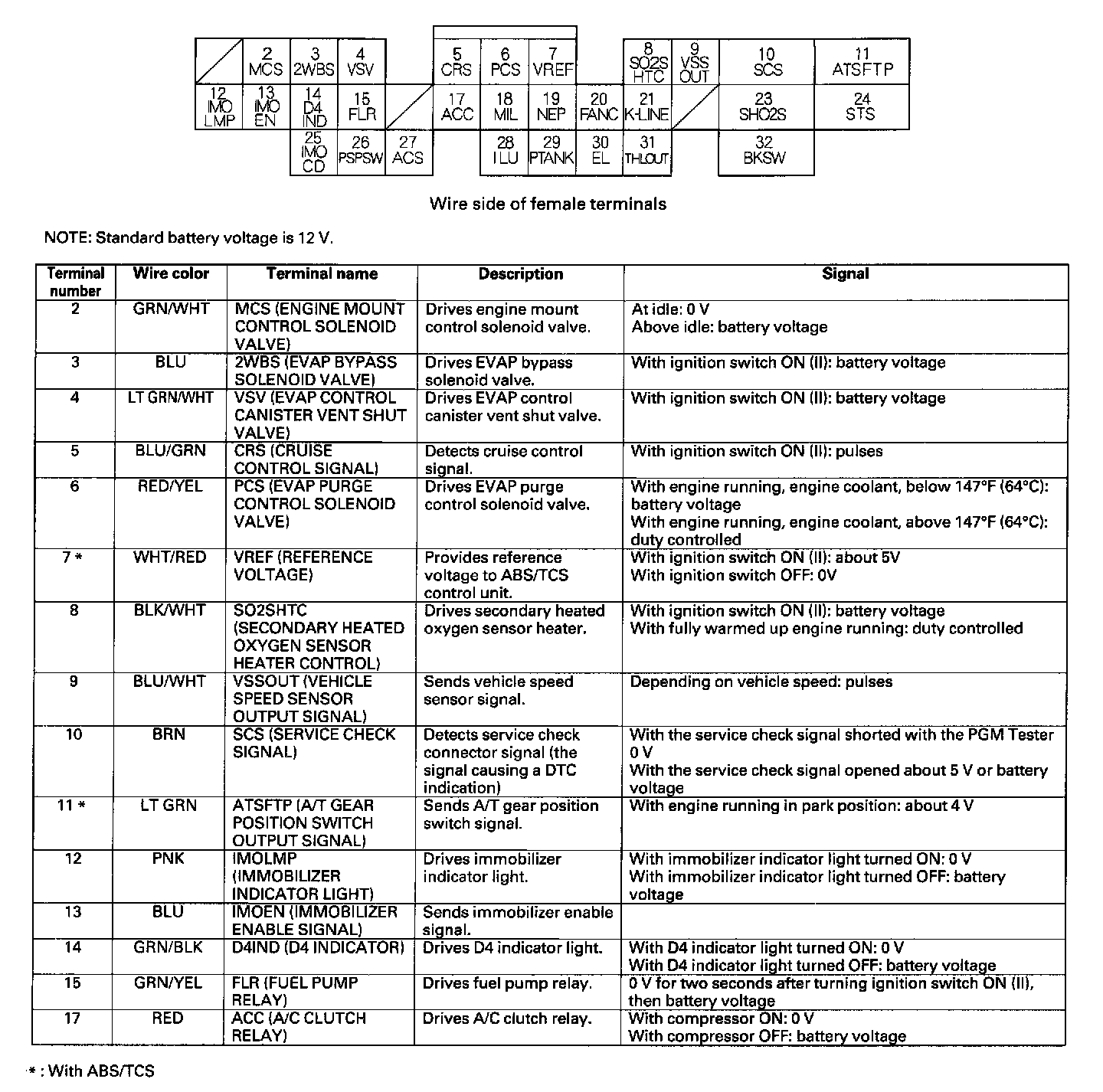

PCM CONNECTOR A (32P) (PART 1 OF 2):

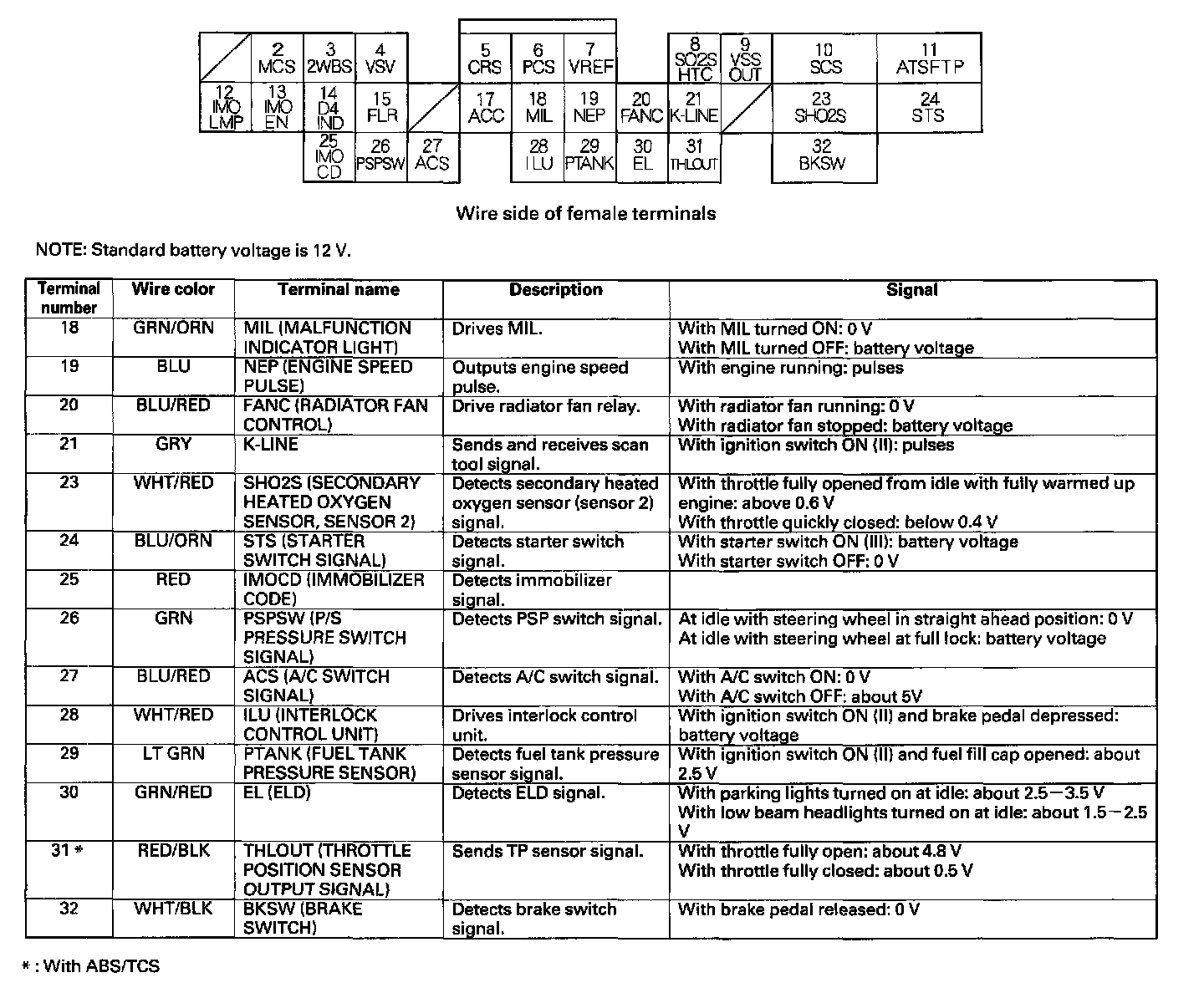

PCM CONNECTOR A (32P) (PART 2 OF 2):

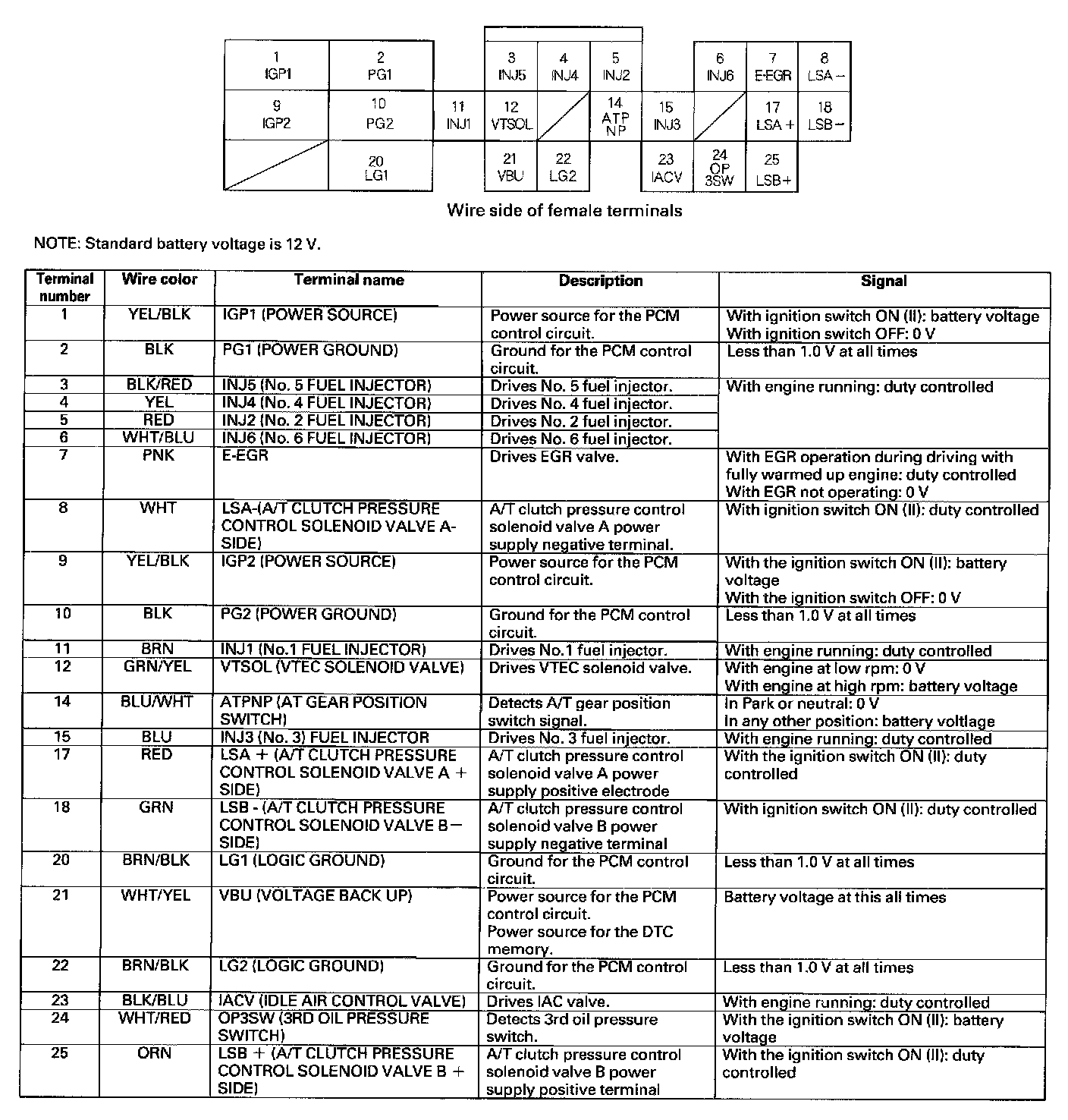

PCM CONNECTOR B (25P):

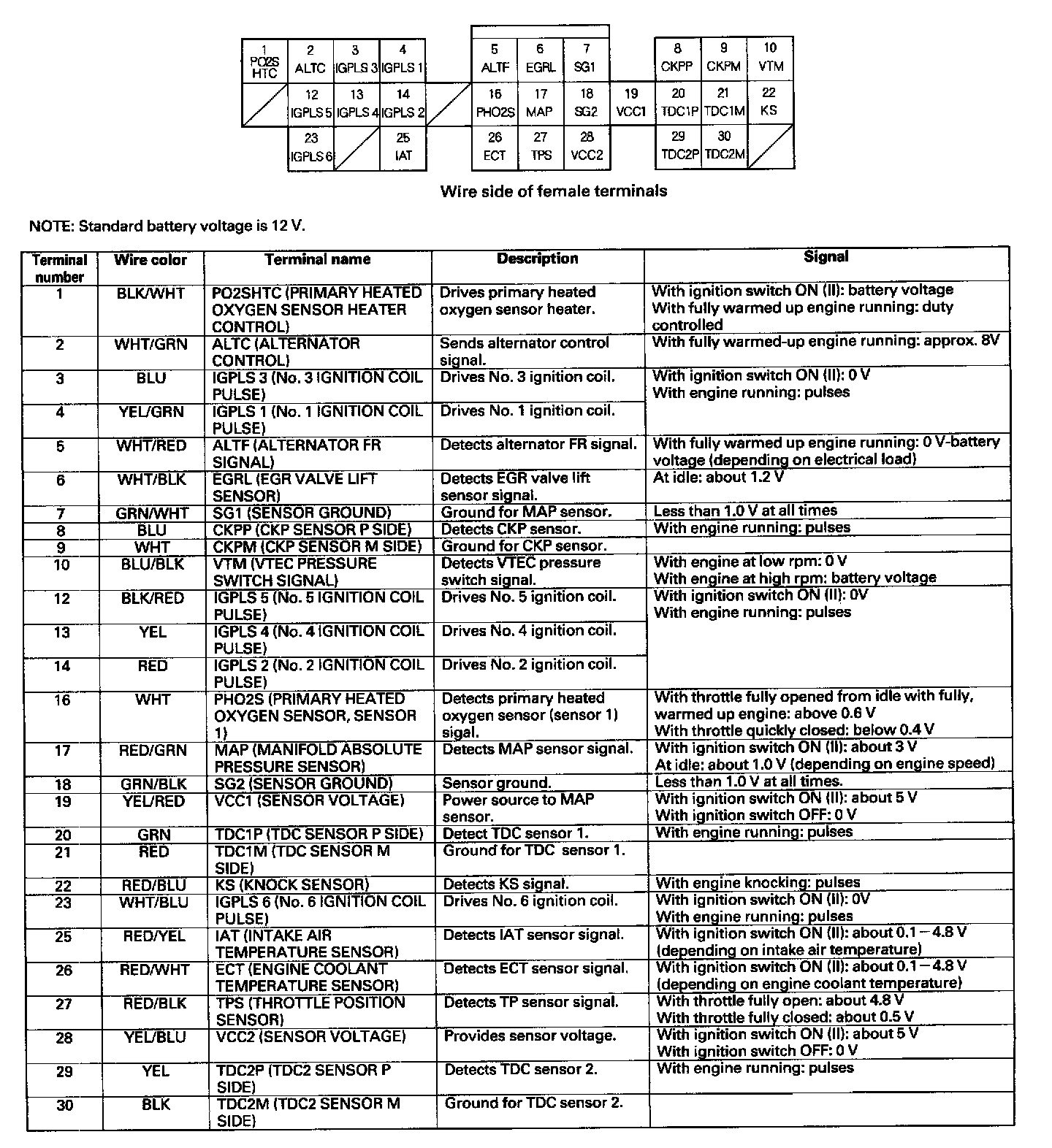

PCM CONNECTOR C (31P):

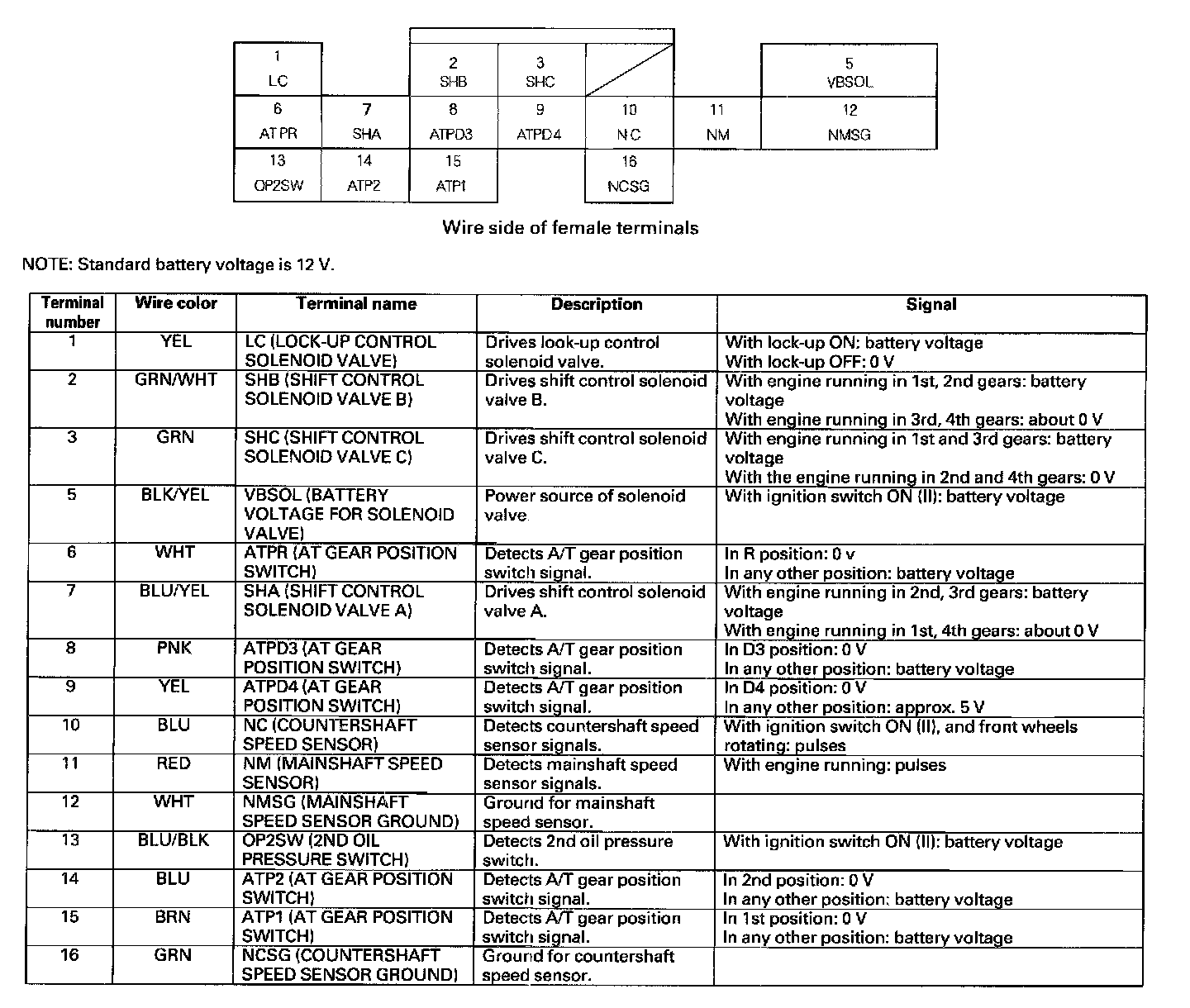

PCM CONNECTOR D (16P):

PCM CONNECTOR E (12P) (With ABS/TCS):
