Antenna Module Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the 3P connector (A) from the antenna module (B).

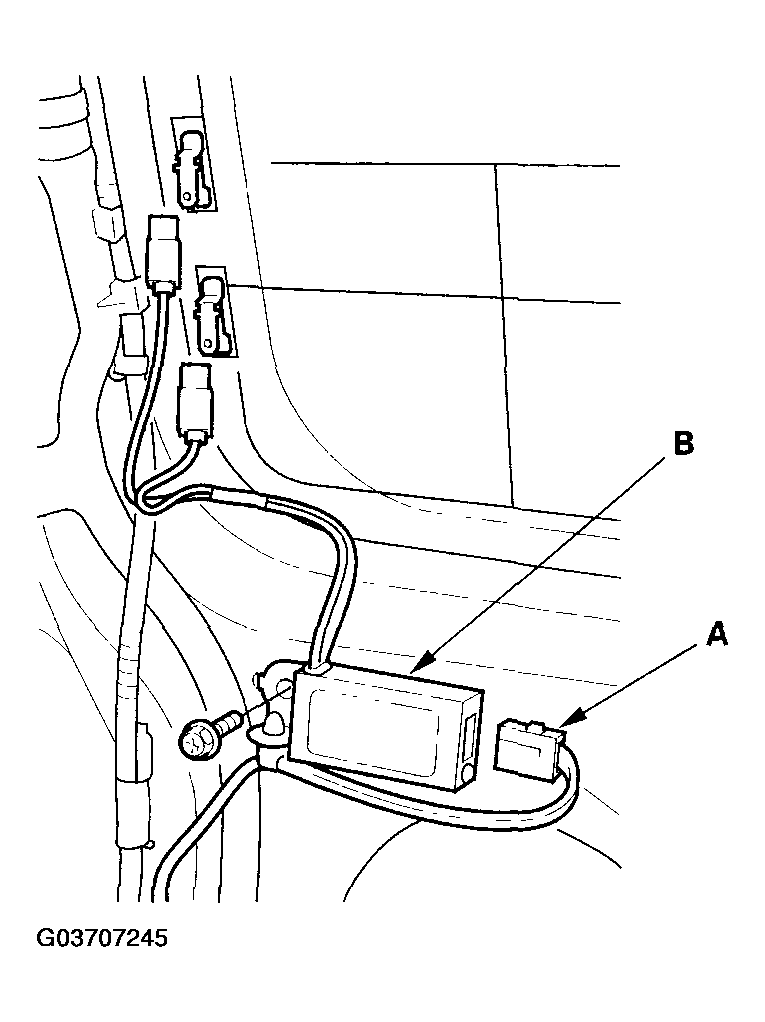

Fig 1: Disconnecting 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the all connectors, then remove the bolt and antenna module.
Install in the reverse order of removal.
