Radio Remote Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

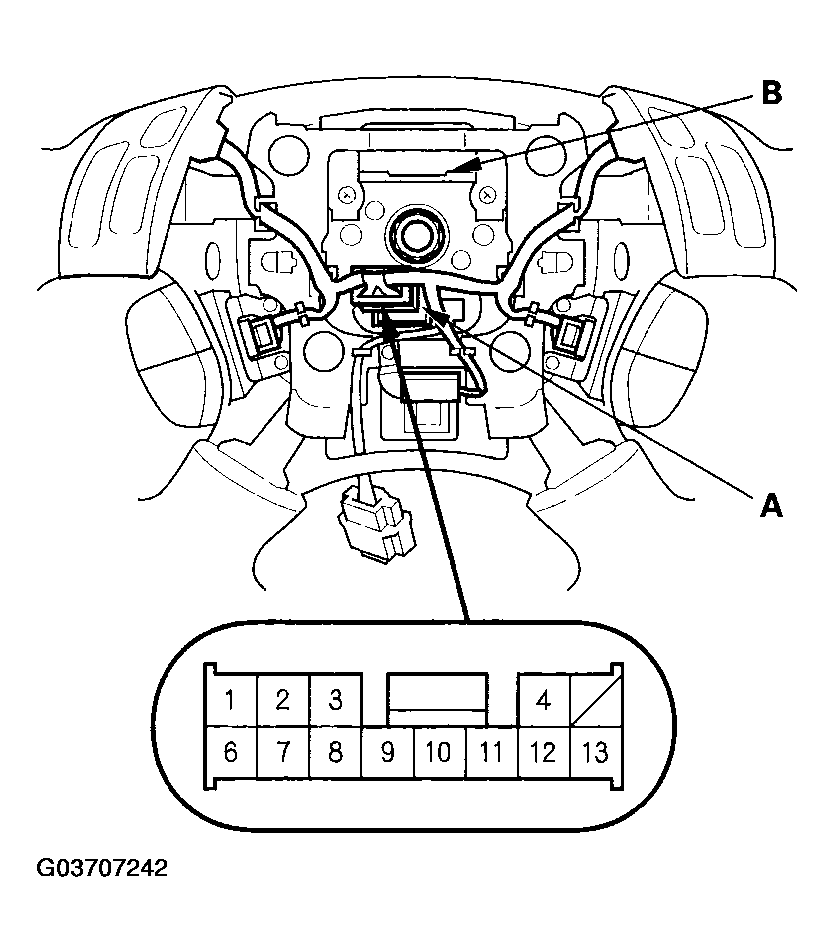

Disconnect the 13P connector (A) from the cable reel (B).

Fig 1: Disconnecting 13P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure resistance between the No. 11 and No. 12 terminals in each switch position according to the table shown in Fig 2 .

Fig 2: Measuring Resistance Between No. 11 And 12 Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the resistance is not as specified, replace the radio remote switch.
Check for continuity between the terminals in each switch position according to the table shown in Fig 3 .

Fig 3: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the switch.
