S2000 (Front)

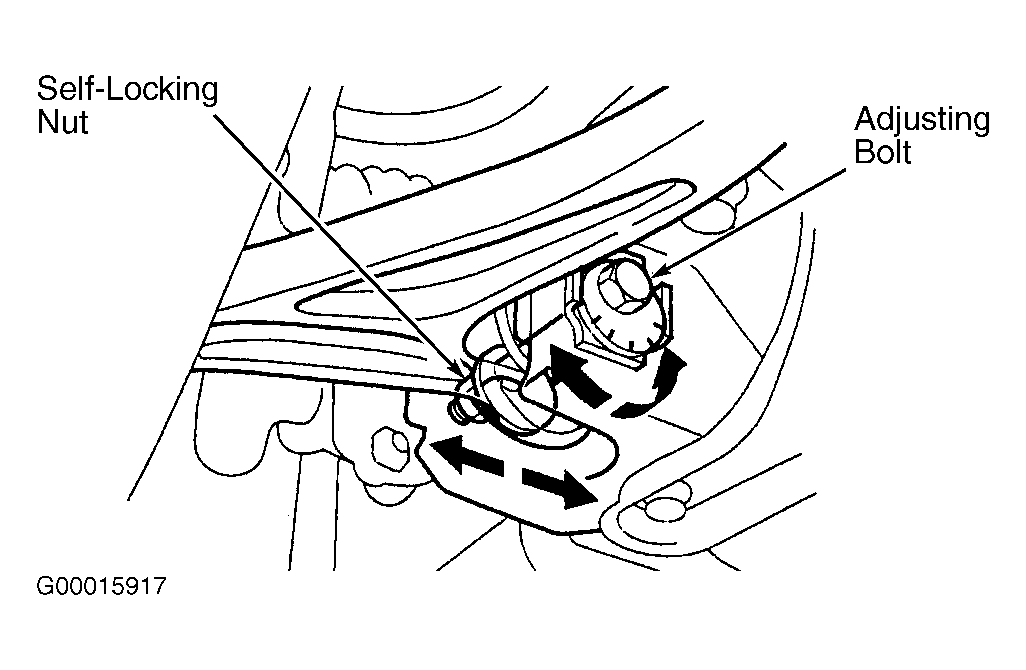

Compare camber settings with vehicle manufacturer recommendations. See WHEEL ALIGNMENT SPECIFICATIONS . If camber is incorrect, check for bent or damaged suspension components. Replace faulty components. Recheck camber. If camber is still incorrect, hold adjusting bolt on front lower arm and loosen self-locking nut. Turn adjusting bolt until camber is correct. See Fig 1 . After adjusting, tighten self-locking nut while holding adjusting bolt. See TORQUE SPECIFICATIONS .
