Component Location Index

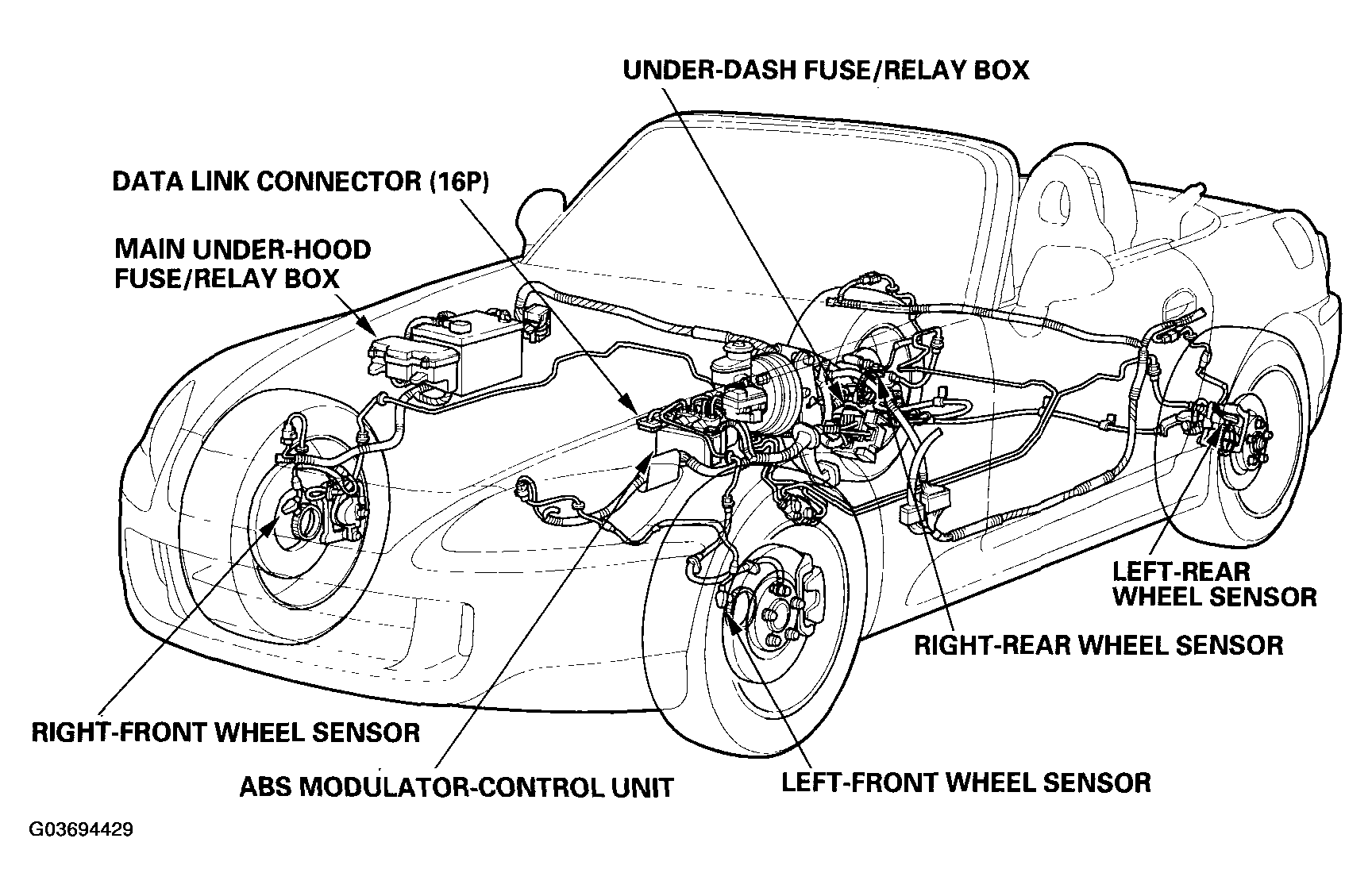

Fig 1: ABS (Anti - Lock Brakes System) Components ('00-05) Models) Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
