Accessory Power Socket Test/Replacement
- Remove the rear console (see REAR CONSOLE REMOVAL/INSTALLATION
).

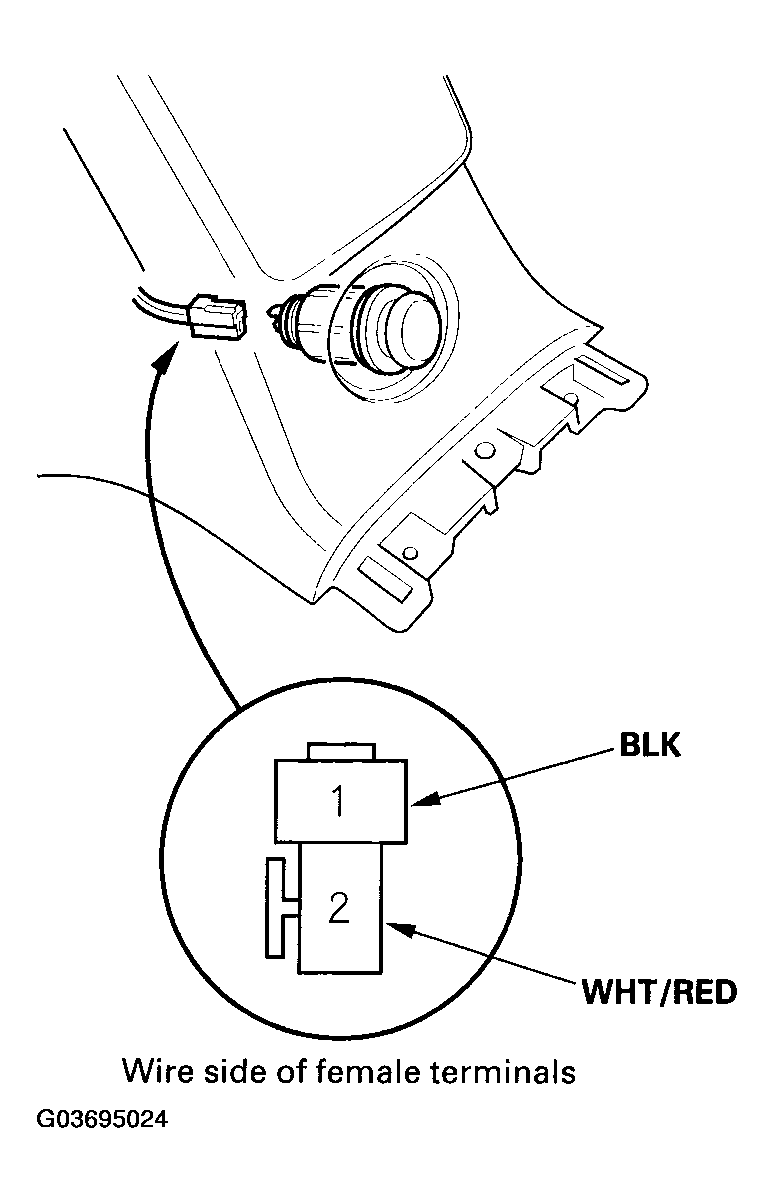

- Disconnect the 2P connector.
- Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Turn the ignition switch ACC (I), and check for voltage between the No. 1 and No. 2 terminals.
- There should be battery voltage.
- If there is no battery voltage, check for:
- Blown No. 9 (10 A) fuse in the under-dash fuse/relay box
- Blown No. 53 (20 A) fuse in the main underhood fuse/relay box (CR model)
- Faulty ACC cut relay
- Faulty accessory power socket relay (CR model)
- Poor ground (G 401) (CR model)
- An open in the wire
- Check for continuity between accessory power socket 2P connector terminal No. 2 and body ground. There should be continuity.
- If there is continuity, replace the power socket; go to step 6.
- If there is no continuity, check for:
- Poor ground (G 601)
- An open in the wire

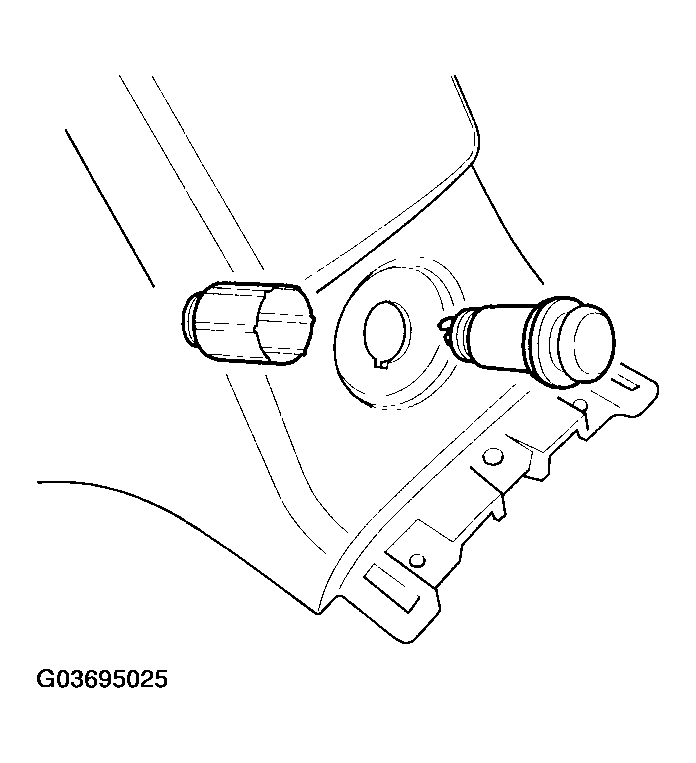

- Remove the housing and socket.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the power accessory socket in the reverse order of removal.
