2000-2005 Models

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Hold the exhaust camshaft with an open-end wrench, then loosen the bolt.
    NOTE: This bolt has left hand threads.

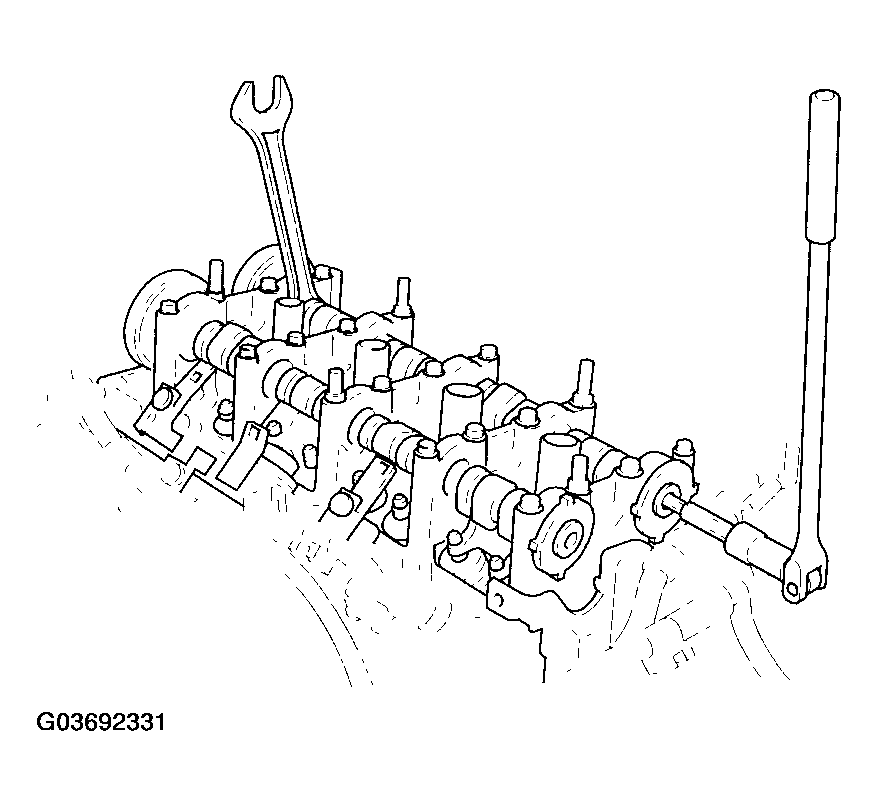

    Fig 1: Holding Exhaust Camshaft With Open-End Wrench And Loosening Bolt
    G03692331Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the camshaft position (CMP) pulse plate B.

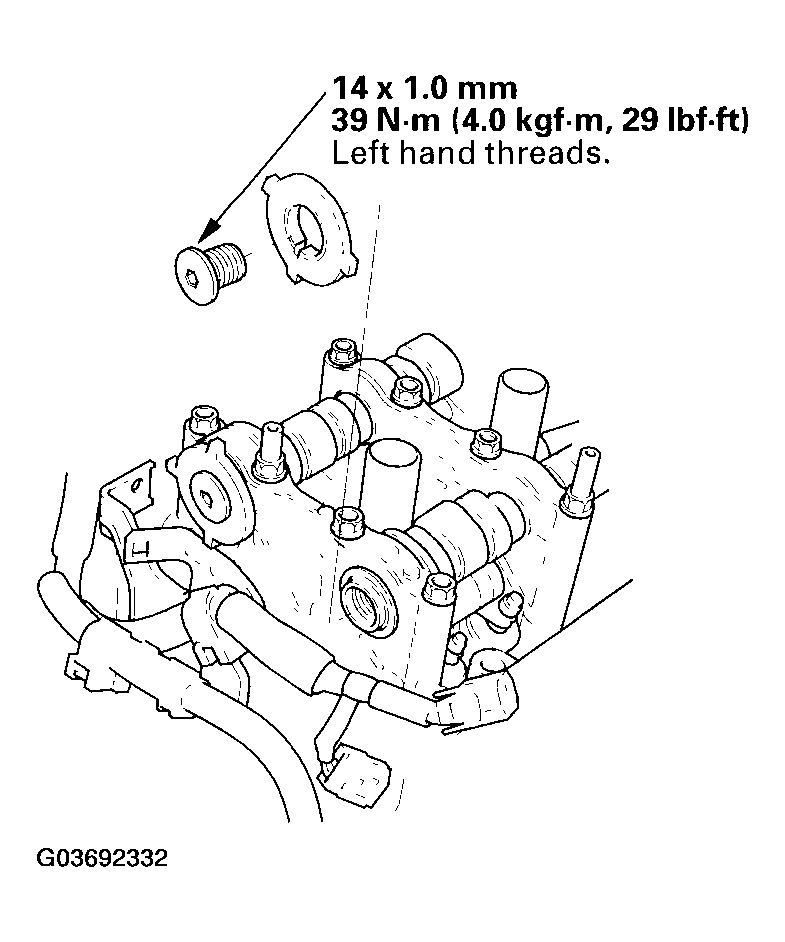

    Fig 2: Removing Camshaft Position (CMP) Pulse Plate B With Torque Specifications
    G03692332Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Clean the bolt, then apply new engine oil to the threads.
  5. Align the CMP pulse plate B groove with the pin on the camshaft end, then install the CMP pulse plate B.
  6. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION  ).
