VSA NO valve open, VSA NC valve closed, inlet valve closed, rear outlet valve open, pump motor ON.
Caliper fluid flows through the outlet valve to the reservoir.

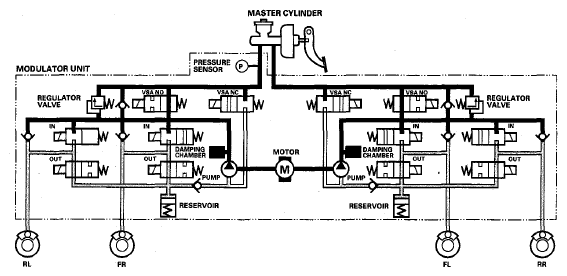

Fig 1: Pressure Reducing Mode Communication Diagram
