Distributor Replacement: Removal

  1. Disconnect the connector (A) from the distributor.

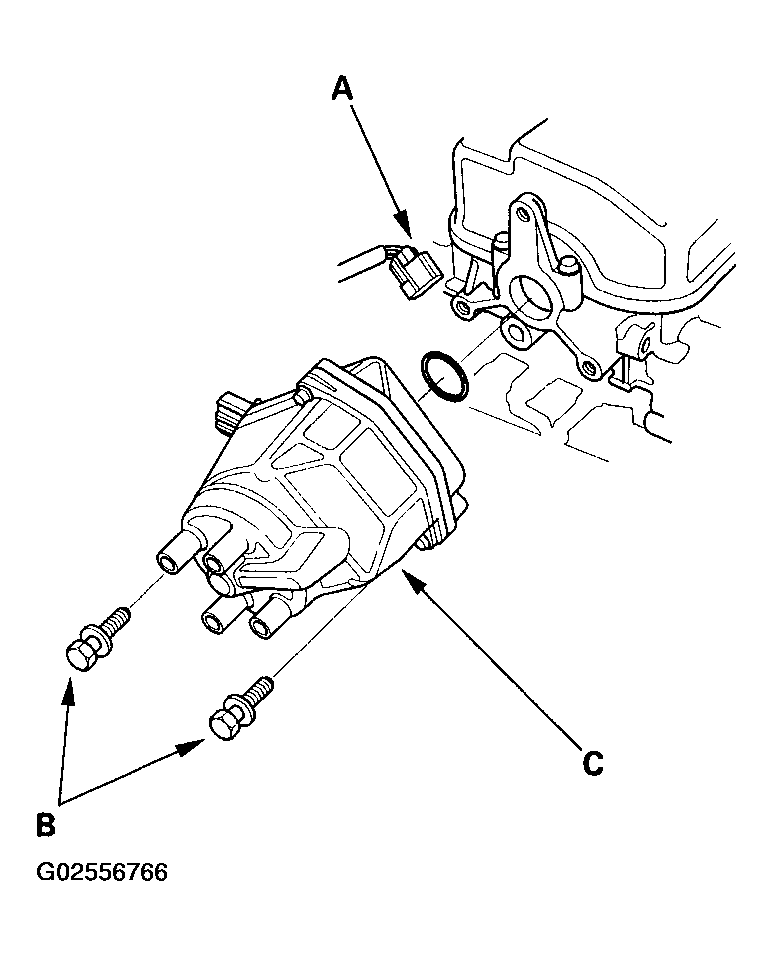

    Fig 1: Disconnecting Connector From Distributor (F23A1 & F23A4 Engines)
    G02556766Courtesy of AMERICAN HONDA MOTOR CO., INC.

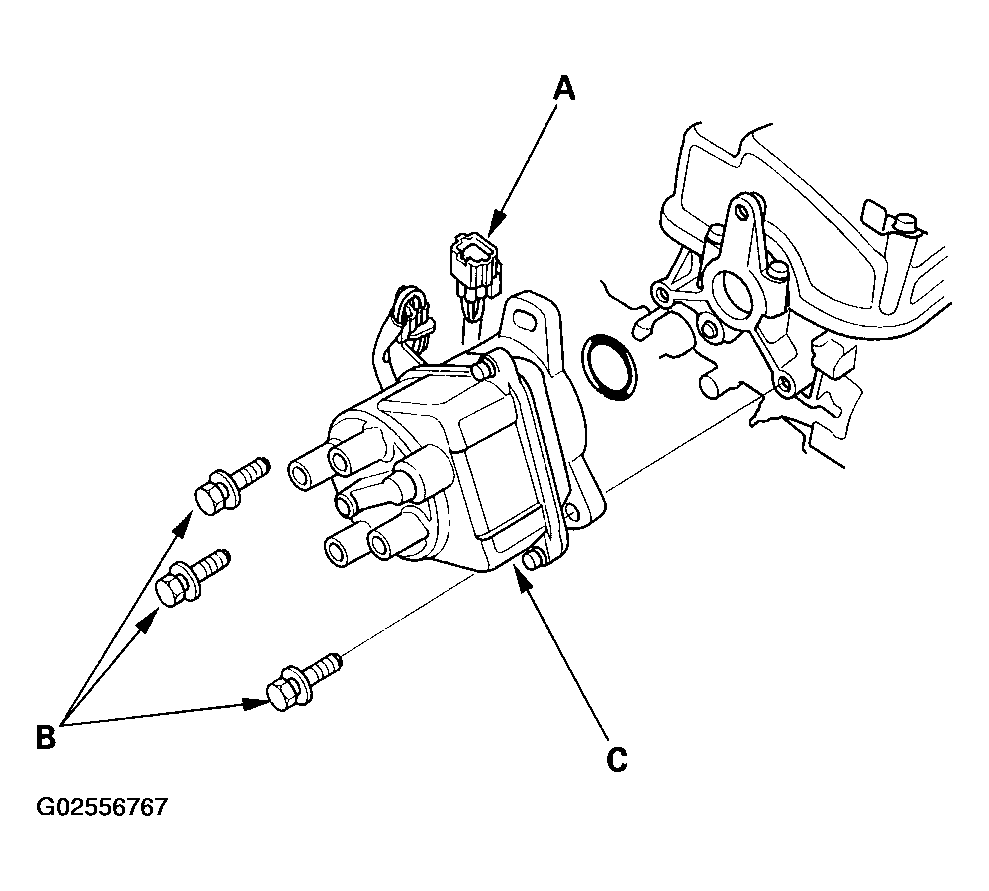

    Fig 2: Disconnecting Connector From Distributor (F23A5 Engine)
    G02556767Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the ignition wires from the distributor cap.
  3. Remove the distributor mounting bolts (B) then remove the distributor (C) from the cylinder head.
