PSP Switch Signal Circuit Troubleshooting
- Turn the ignition switch ON (II).

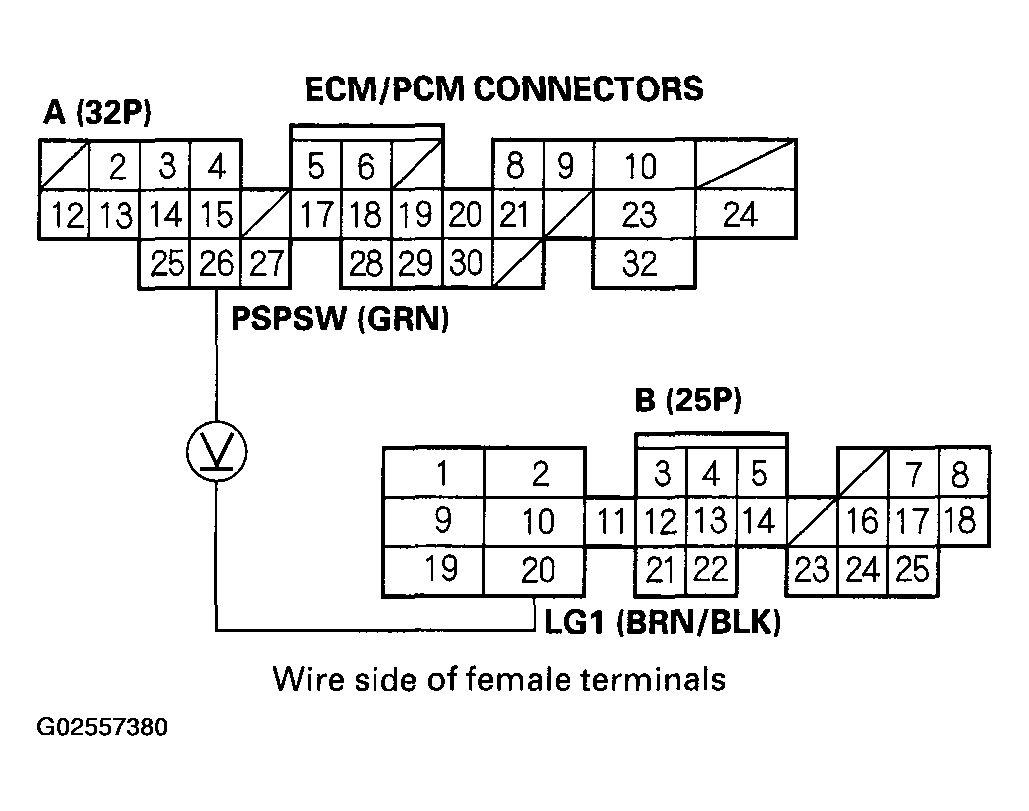

- Measure voltage between ECM/PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there less than 1.0 V?
- YES - Go to step 3.
- NO - Go to step 6.
- Start the engine.
- Turn the steering wheel to full lock position.
- Measure voltage between ECM/PCM connector terminals A26 and B20.
Is there battery voltage?
- YES - The PSP switch signal is OK.
- NO - Go to step 11.
- Turn the ignition switch OFF.
- Disconnect the PSP switch 2P connector.
- Turn the ignition switch ON (II).

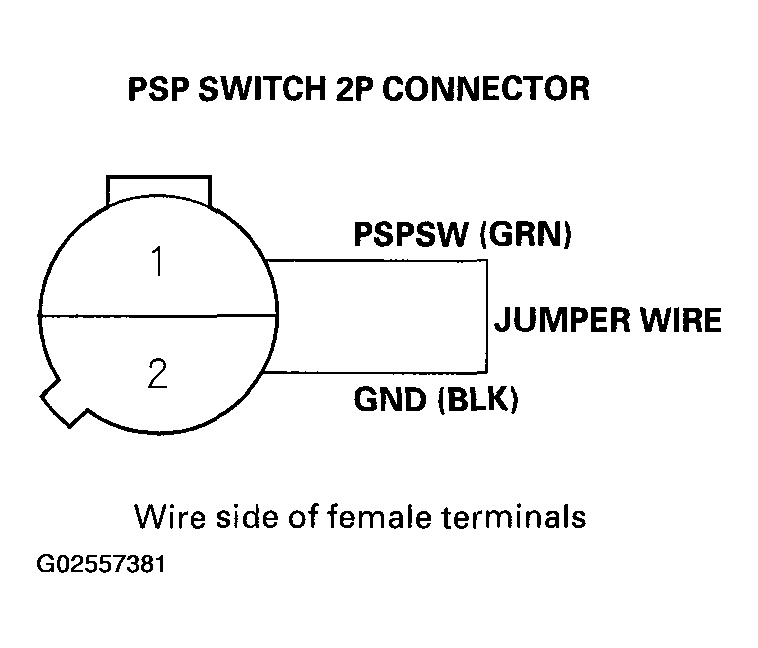

- At the harness side, connect PSP switch 2P connector terminals No. 1 and No. 2 with a jumper wire.
- Measure voltage between ECM/PCM connector terminals A26 and B20.
Is there less than 1.0 V?
- YES - Replace the PSP switch.
- NO - Check for an open in the wire between the ECM/PCM (A26) and the PSP switch, or an open in wire between the PSP switch and G302.
- Turn the ignition switch OFF.
- Disconnect the PSP switch 2P connector.
- Turn the ignition switch ON (II).

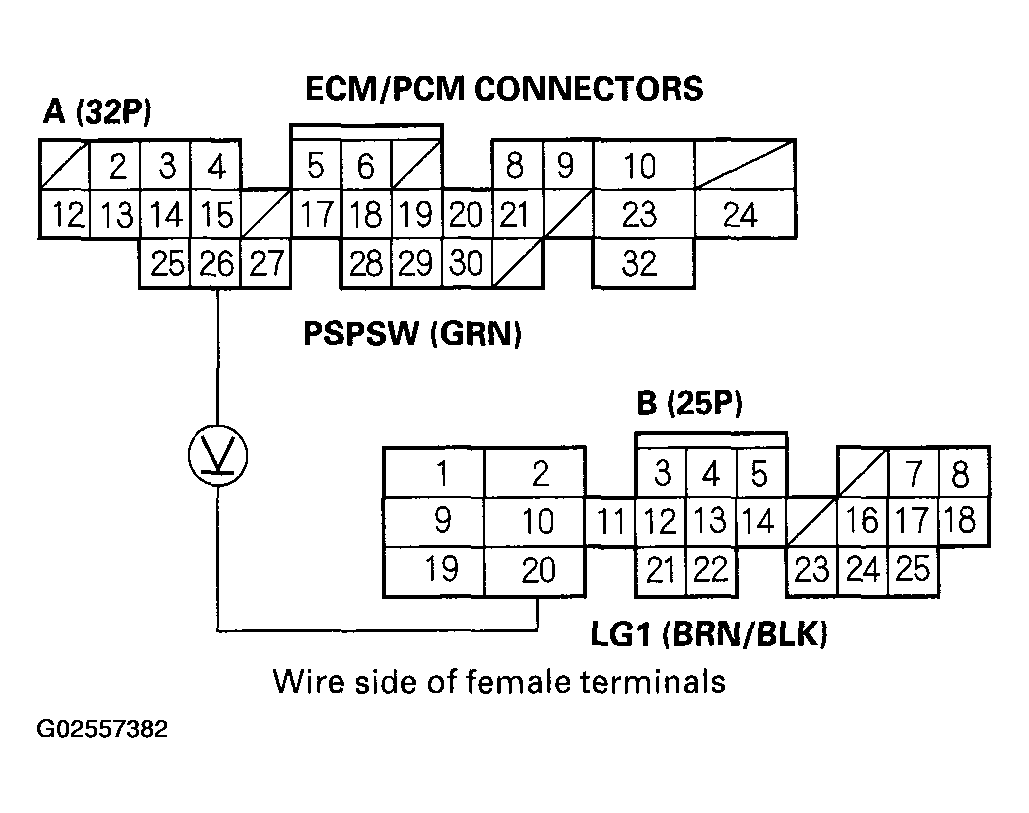

- Measure voltage between ECM/PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
- YES - Replace the PSP switch.
- NO - Go to step 15.
- Turn the ignition switch OFF.
- Disconnect ECM/PCM connector A (32P).

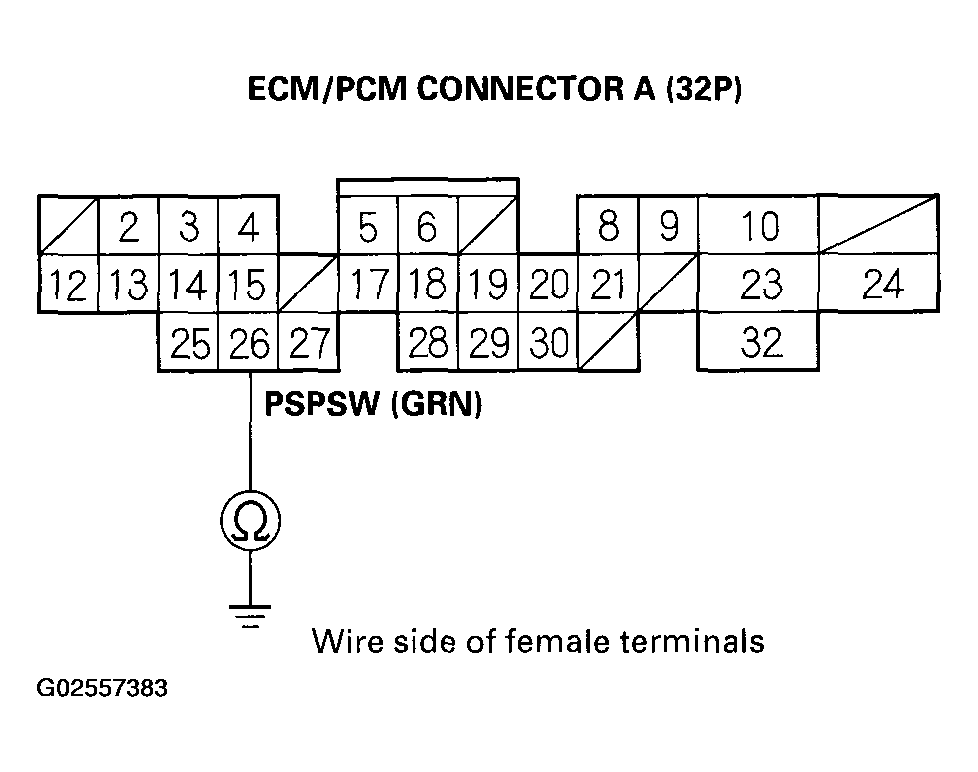

- Check for continuity between body ground and ECM/PCM connector terminal A26.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Repair short in the wire between the ECM/PCM (A26) and the PSP switch.
- NO - Substitute a known-good ECM/PCM and recheck (see HOW TO SUBSTITUTE THE ECM/PCM FOR TESTING PURPOSES ). If the prescribed voltage is now available, replace the original ECM/PCM.
