Toe-In Adjustment: Cr-V
- Secure steering wheel in straight-ahead position. Measure front wheel toe-in. See WHEEL ALIGNMENT SPECIFICATIONS
. If adjustment is needed, loosen tie rod lock nuts. Turn both tie rods equally in same direction until front wheels are in straight-ahead position and toe-in reading is correct. Tighten tie rod lock nuts. Reposition tie rod boots if twisted.

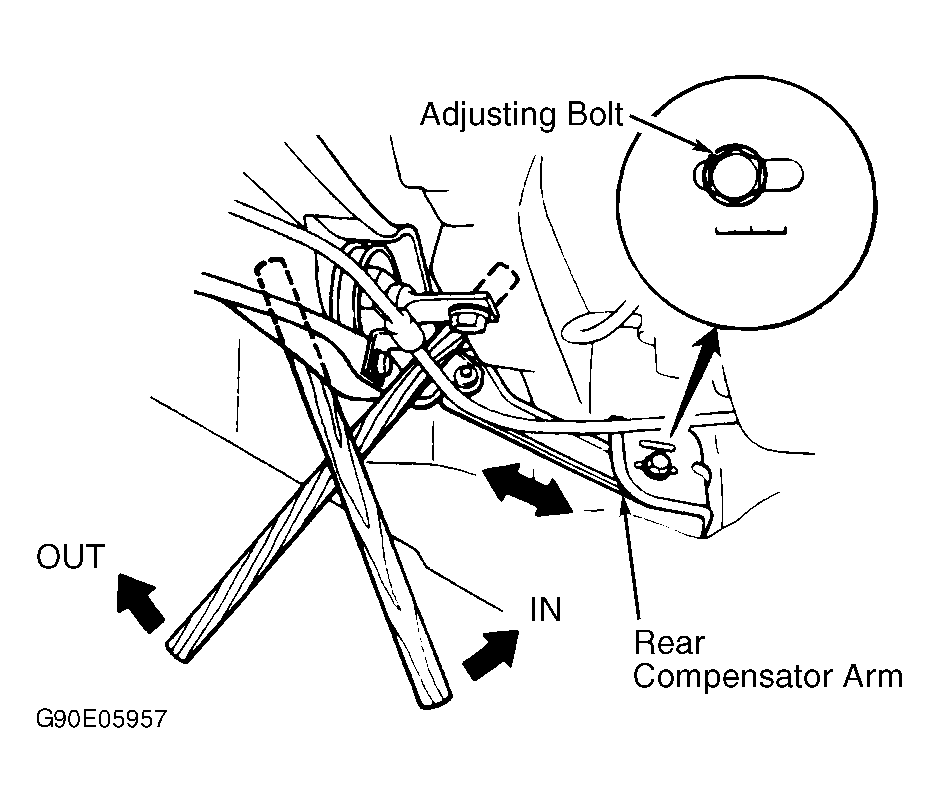

- Ensure parking brake is released. Check rear wheel toe-in. If adjustment is needed, hold adjusting bolt on rear compensator arm and loosen lock nut. See Fig 1
. Adjust rear toe-in by sliding rear control arm until rear toe-in is correct. Install NEW lock nut, and tighten it while holding adjusting bolt.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
