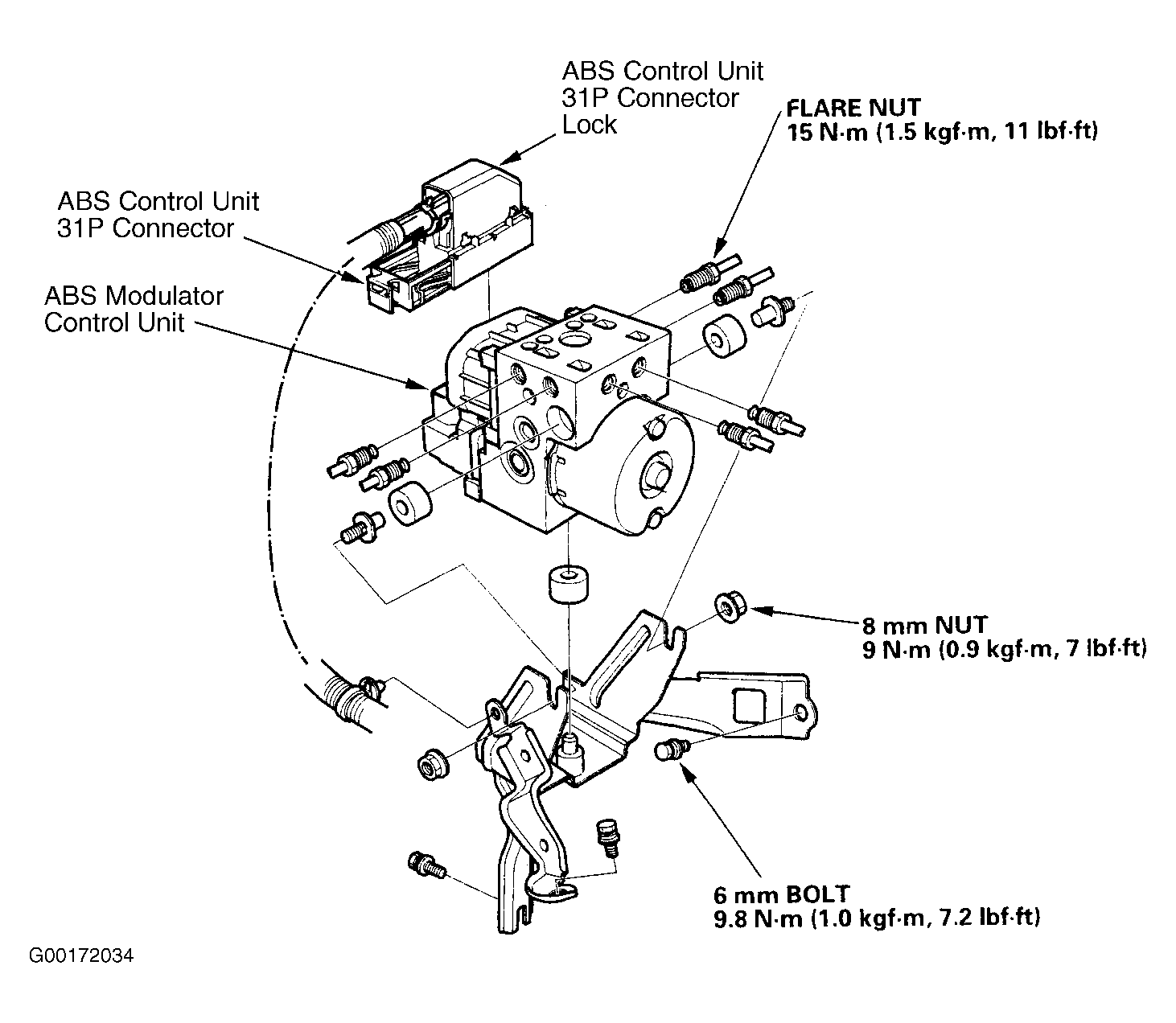

Abs Modulator-Control Unit: Installation
- Install the ABS modulator-control unit, then tighten the two 8 mm nuts.
- Align the connecting surface of the ABS control unit 31P connector.
- Push in the lock of the ABS control unit 31P connector until you hear it click into place, then connect the connector.
- Bleed the brake system, starting with the front wheels.
- Start the engine, and check that the ABS indicator goes off.
- Test-drive the vehicle, and check that the ABS indicator does not come on.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
