Abs Indicator Circuit
See
Fig 1
and
Fig 2
for trouble shooting flow charts.

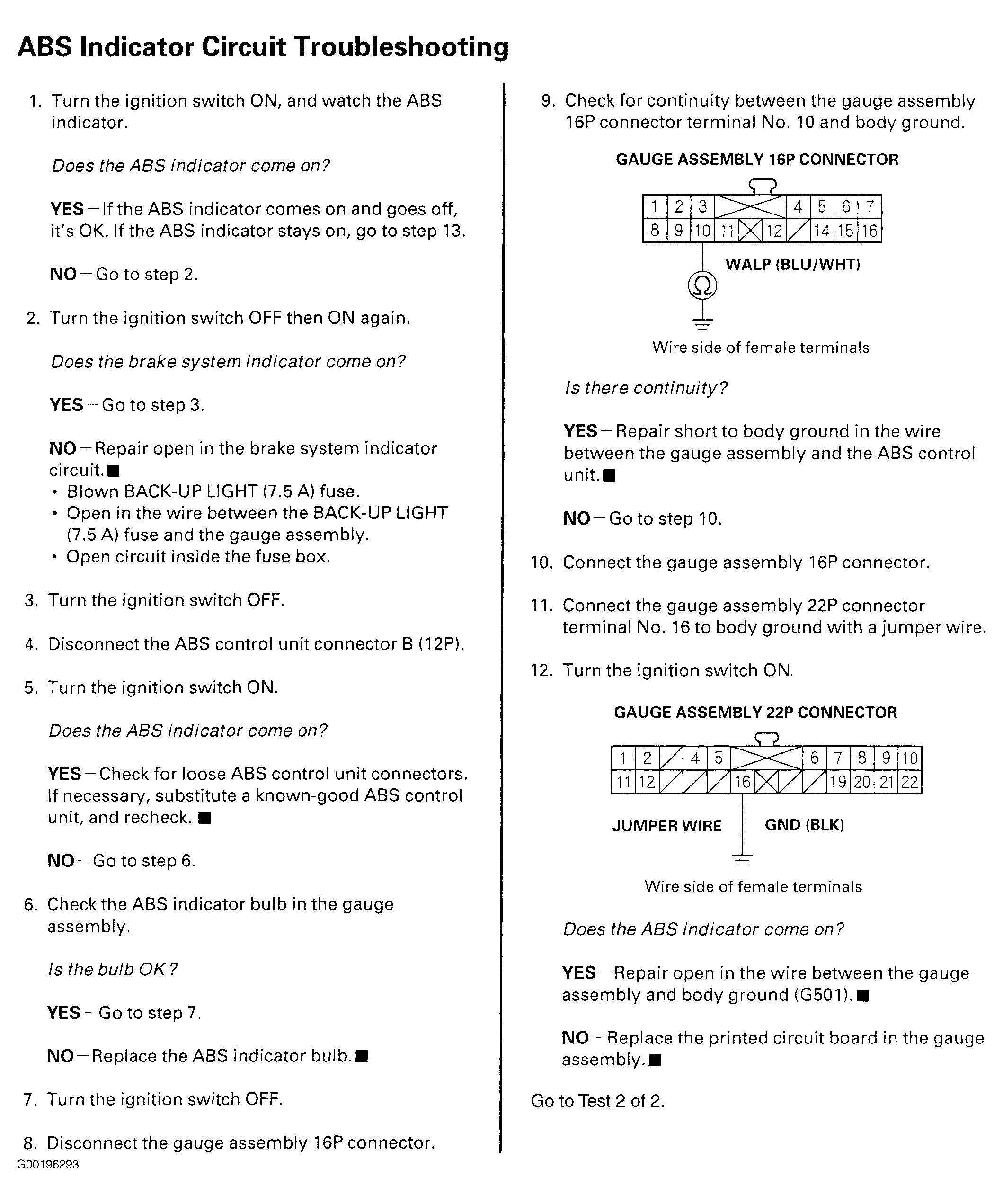

Fig 1: ABS Indicator Circuit Trouble Shooting Flow Chart (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

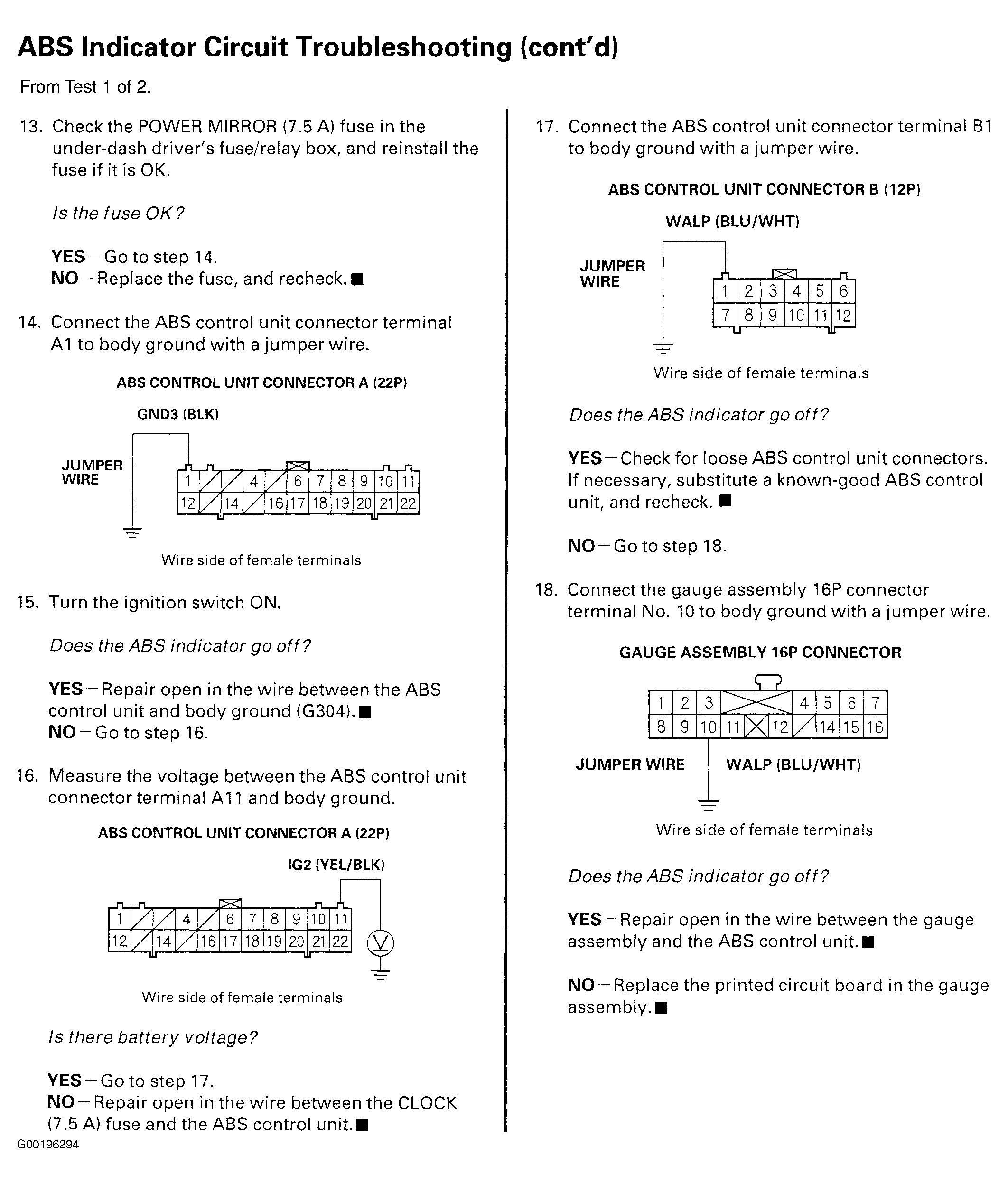

Fig 2: ABS Indicator Circuit Trouble Shooting Flow Chart (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
