Windows
>>
Multiplex Control System
>>
Circuit Diagram (Power, Ground, Communication Lines)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (Power, Ground, Communication Lines)

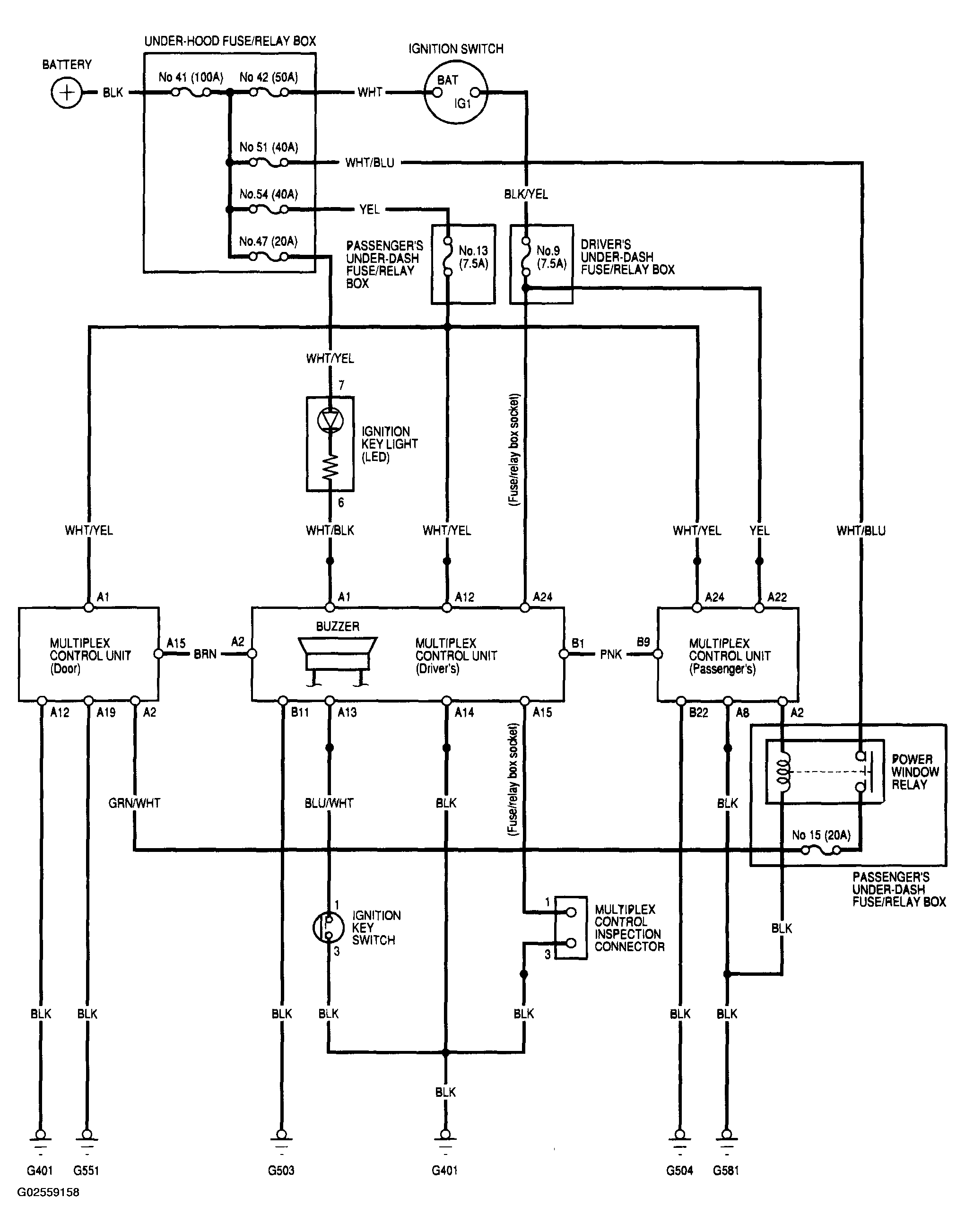

Fig 1: Multiplex Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
