Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

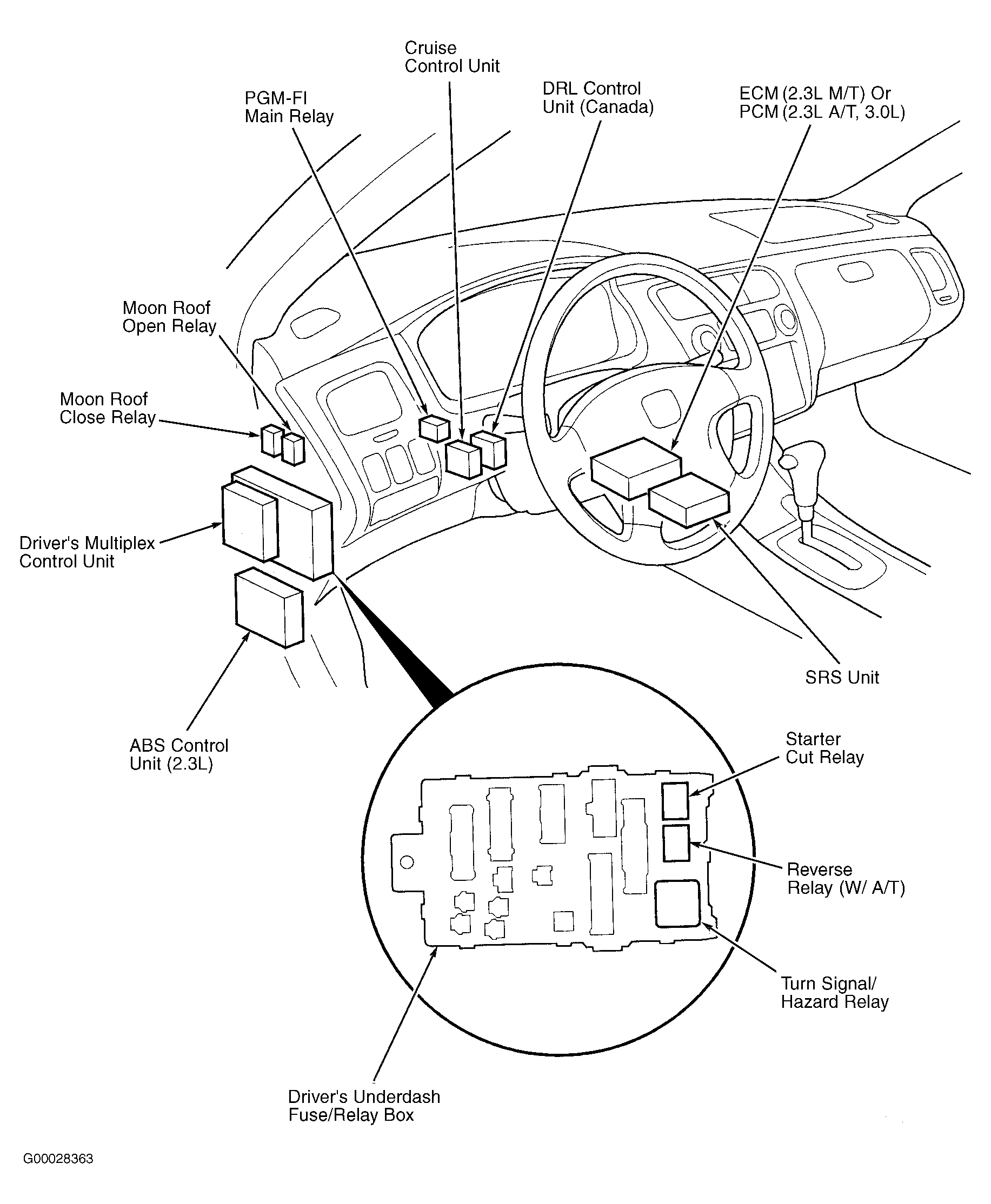

Driver's Underdash Fuse/Relay Box Behind left side of dash, behind left fuse box cover. See Figure.
Foglight In-Line Fuse Attached to battery bracket.
In-Line Fuse 1 Behind driver's lower dashboard cover.
In-Line Fuse 2 Behind driver's lower dashboard cover.
In-Line Fuse 3 Behind driver's lower dashboard cover.

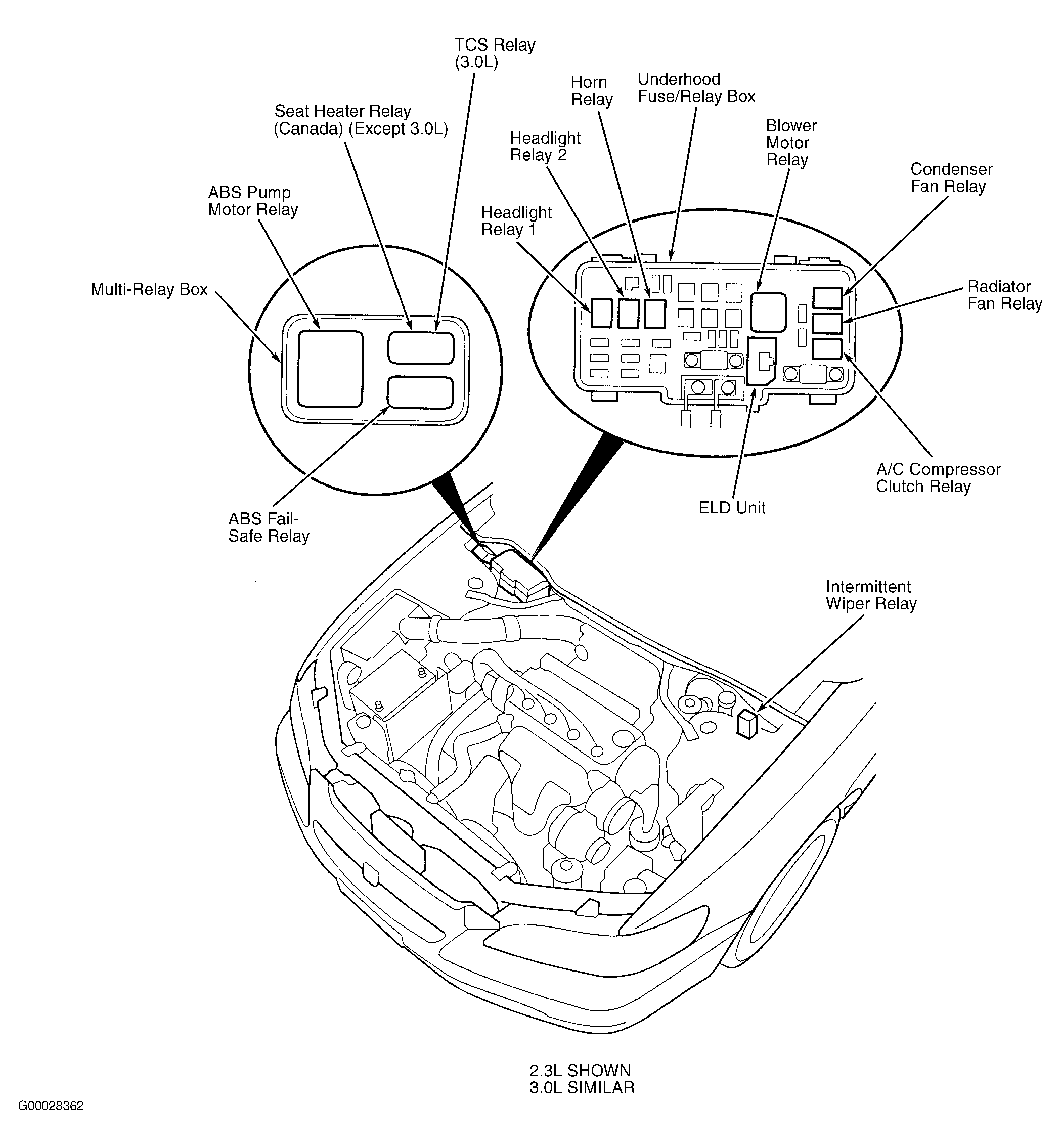

Multi-Relay Box On right side of engine compartment, on strut tower. See Figure.

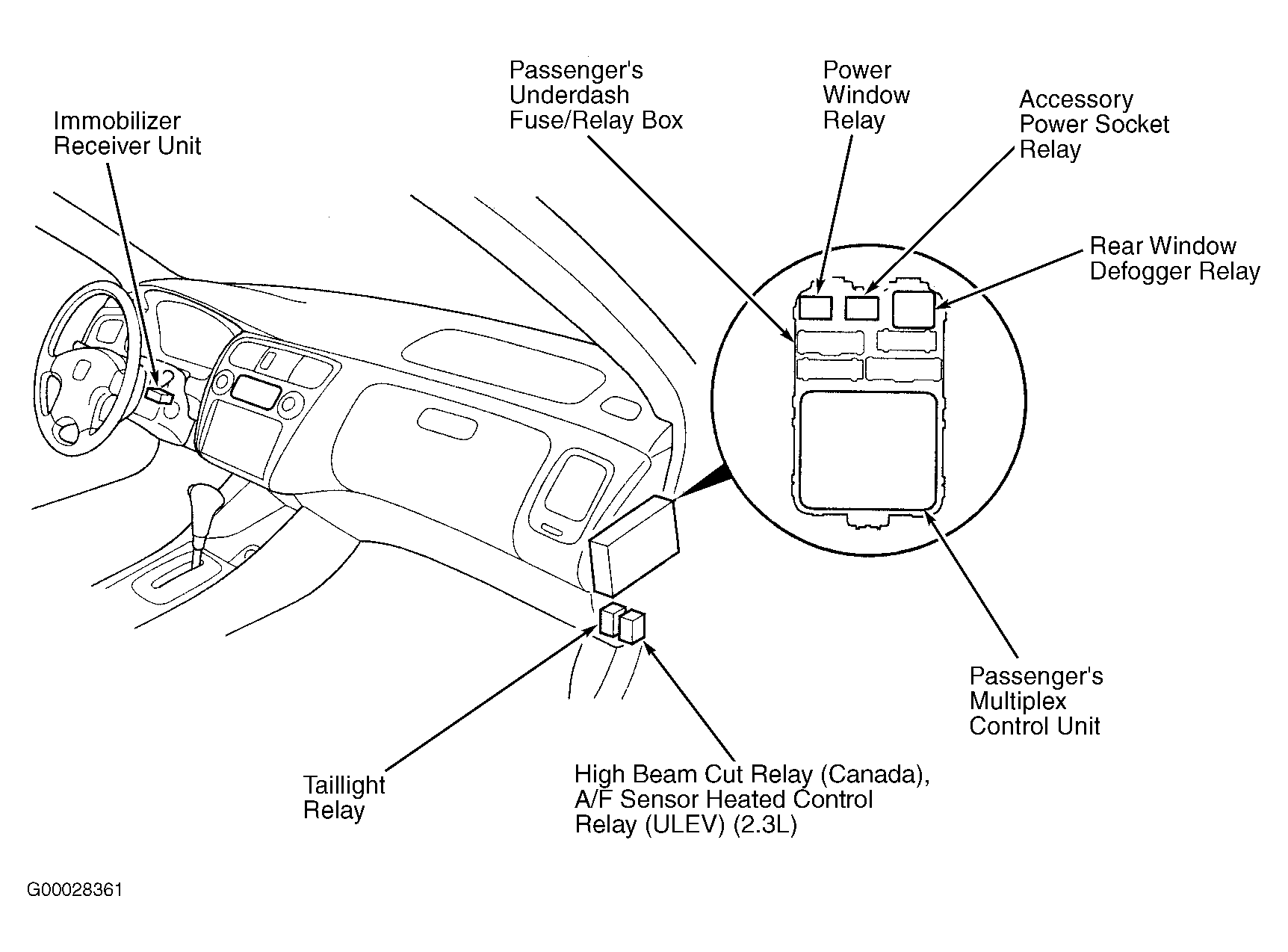

Passenger's Underdash Fuse/Relay Box Behind right side of dash, behind right fuse box cover. See Figure.
Underhood Fuse/Relay Box On right rear corner of engine compartment, behind strut tower. See Figure.
