Component Location Index - Sedan

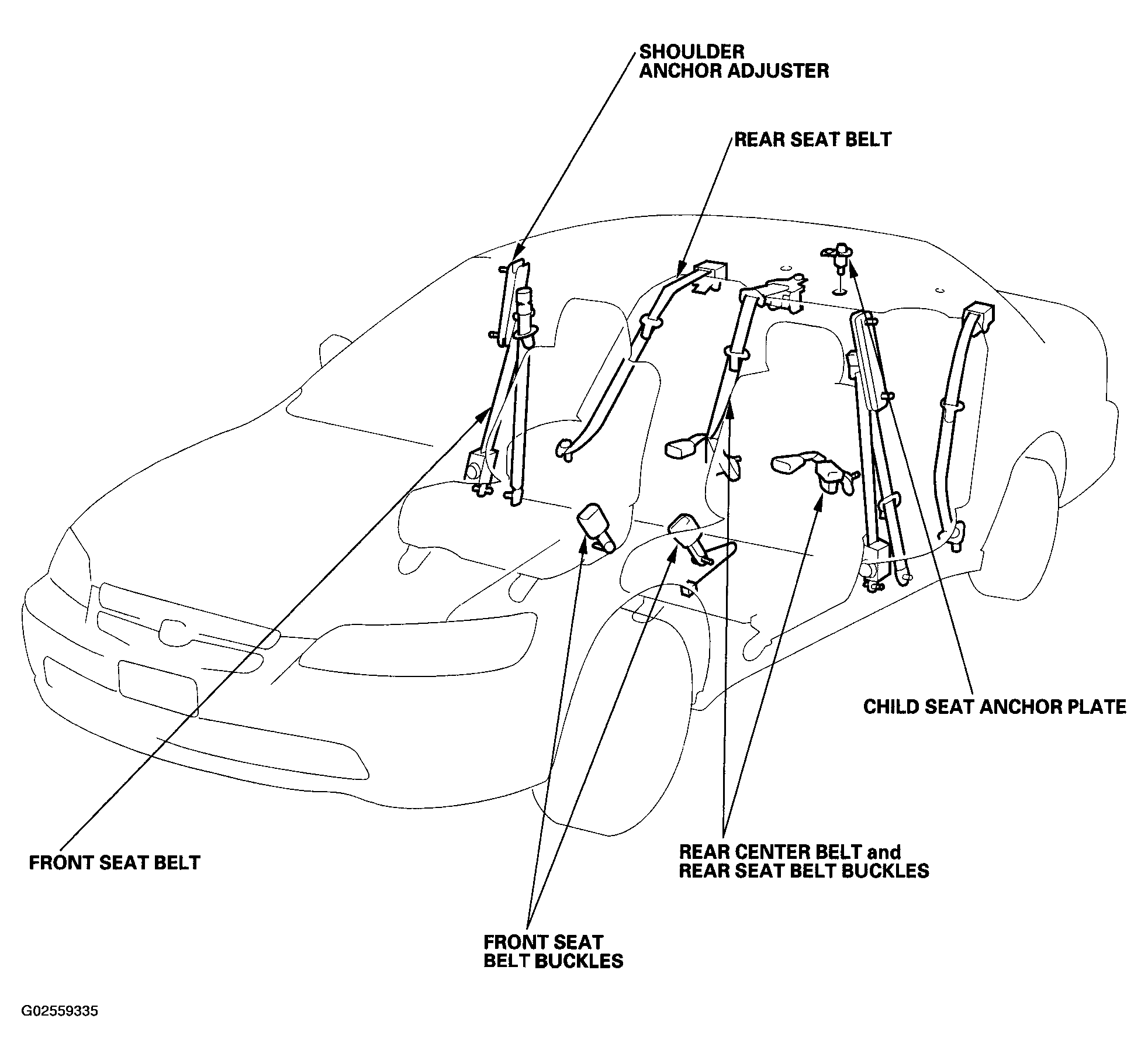

Fig 1: Locating Seat Belt Components - Sedan
Courtesy of AMERICAN HONDA MOTOR CO., INC.
