Wiper/Washer Switch Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the combination light switch 12P connector (A) and dashboard wire harness 8P connector (B) from the wiper/washer switch (C).

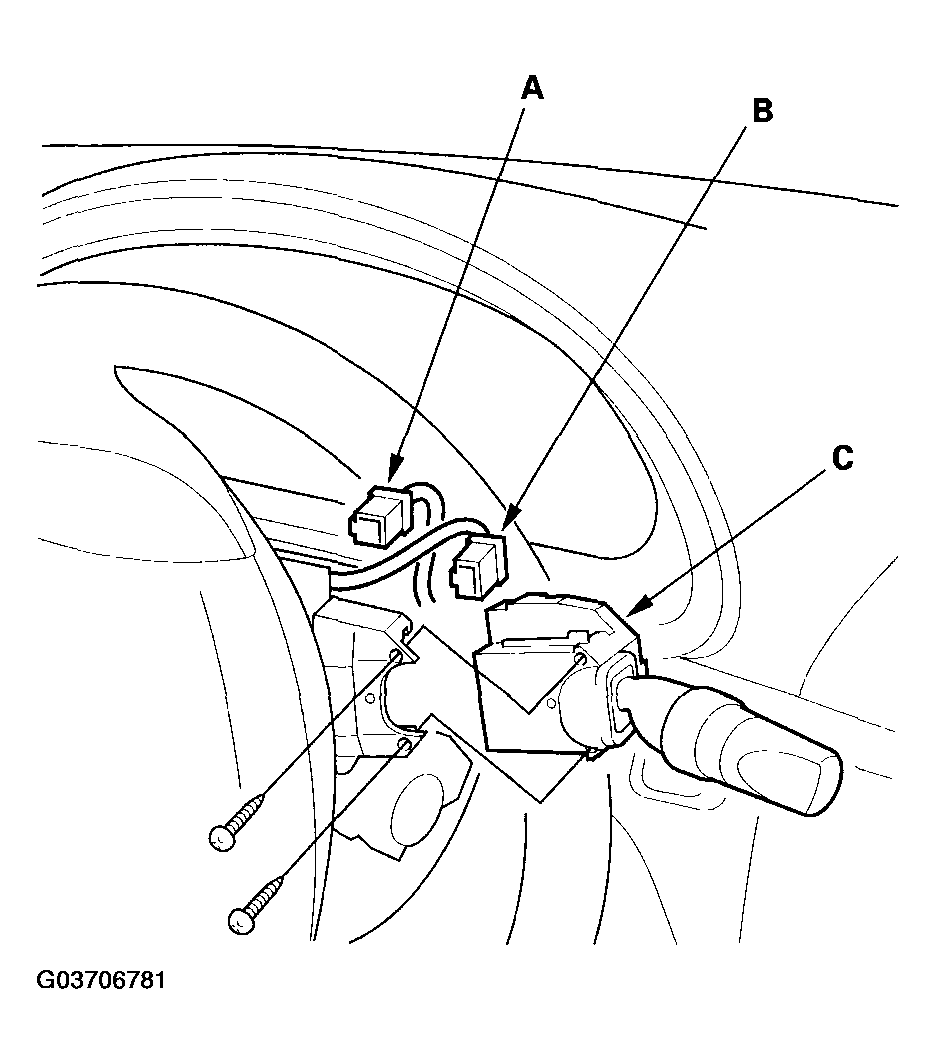

    Fig 1: Disconnecting Combination Light Switch 12P Connector And Dashboard Wire Harness 8P Connector
    G03706781Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws, then slide out the wiper/washer switch.
