Component Locations

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT LOCATIONS

Component	Location
Door Multiplex Unit	On Back Of Driver's Door Switch Plate
Driver's Multiplex Unit	On Underdash Fuse/Relay Box
Driver's Underdash Fuse/Relay Box	Below Left Side Of Instrument panel
Intermittent Relay	In Multi-Fuse/Relay Box
Multi-Fuse/Relay Box	On Left Front Of Engine Compartment
Passenger's Multiplex Unit	Behind Passenger's Underdash Fuse/Relay Box
Passenger's Underdash Fuse/Relay Box	Behind Right Kick Panel

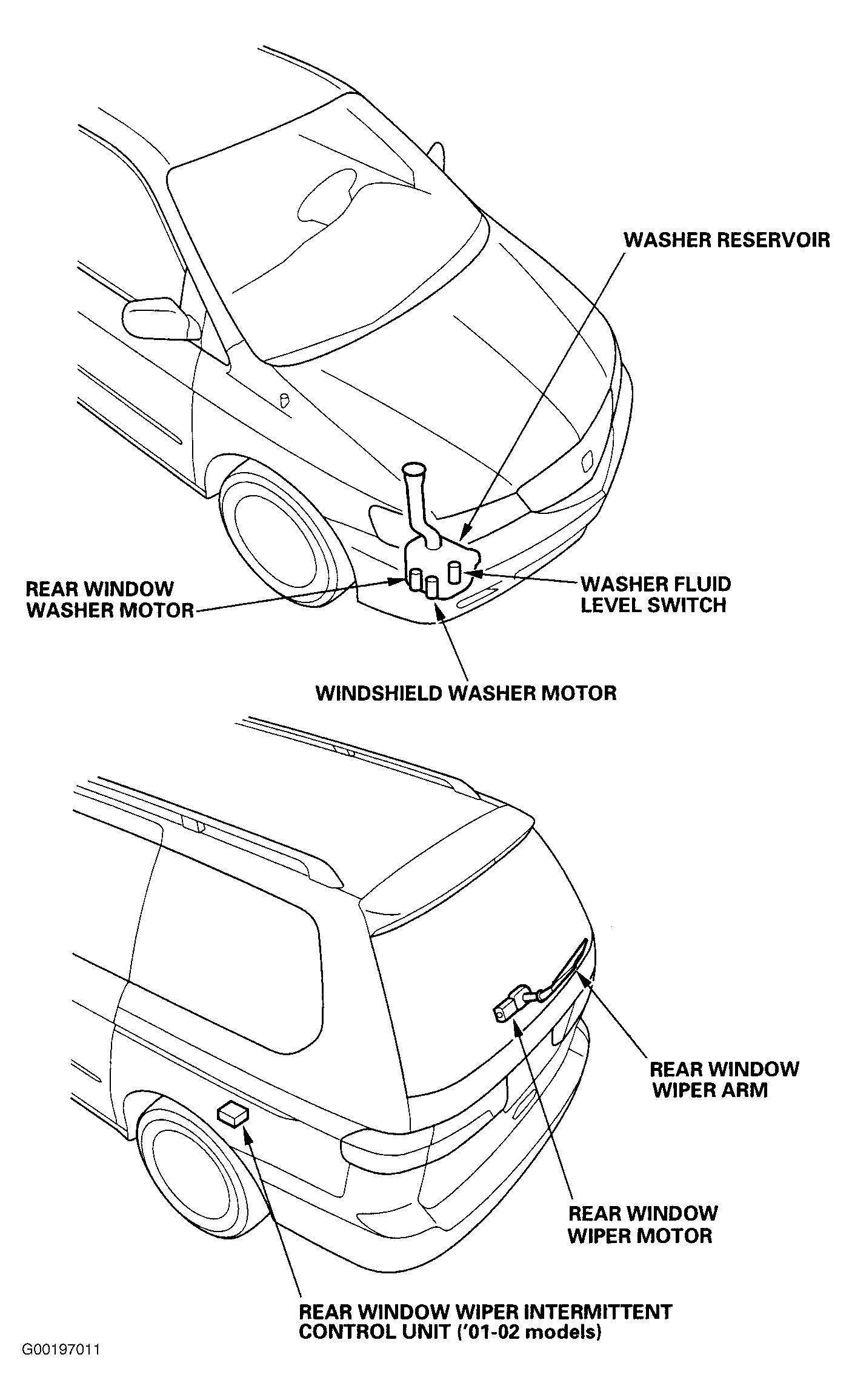

Fig 1: Identifying Wiper/Washer Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

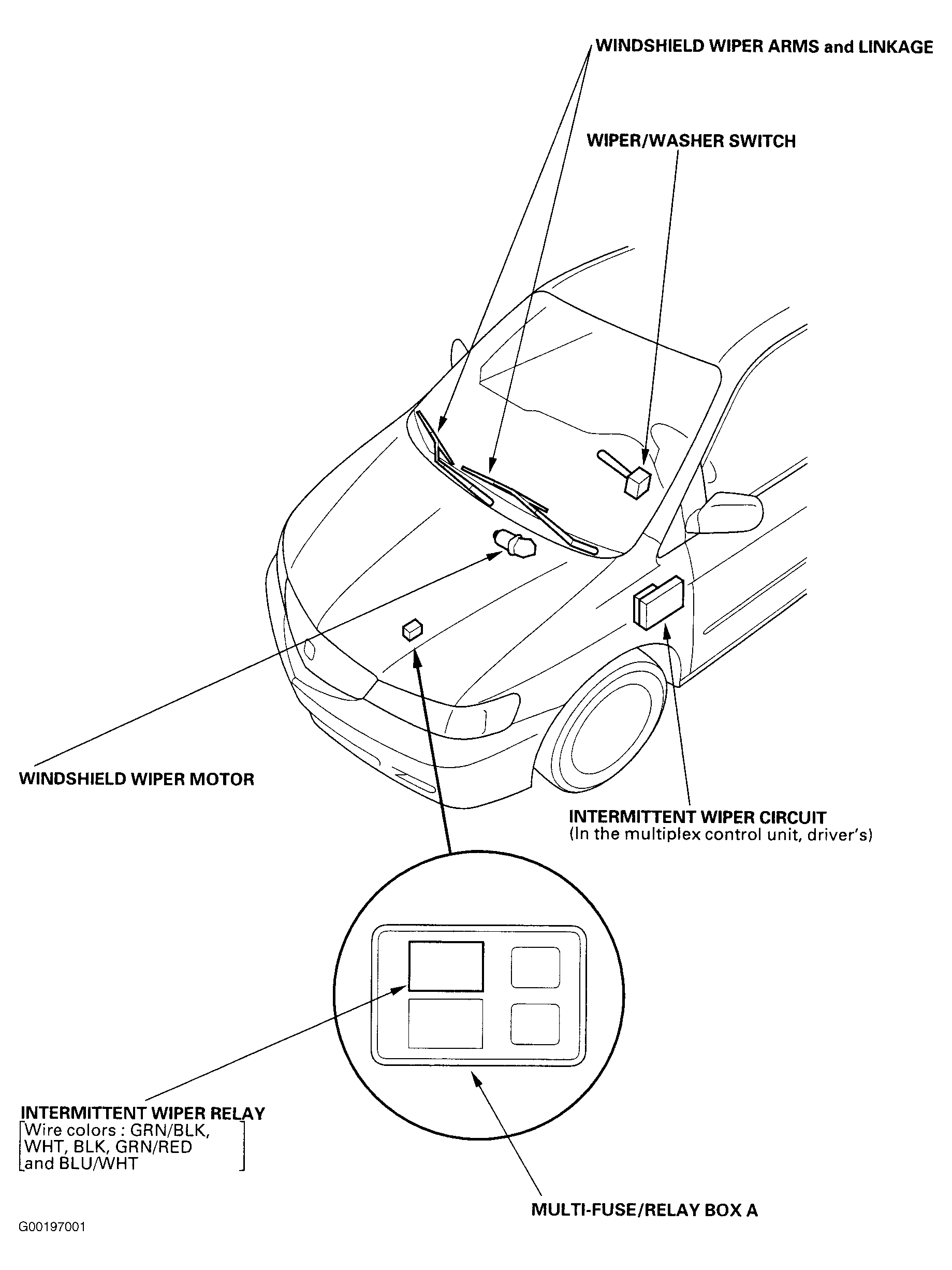

Fig 2: Identifying Wiper/Washer Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
