Audio Unit Connector for Inputs and Outputs: Notes
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

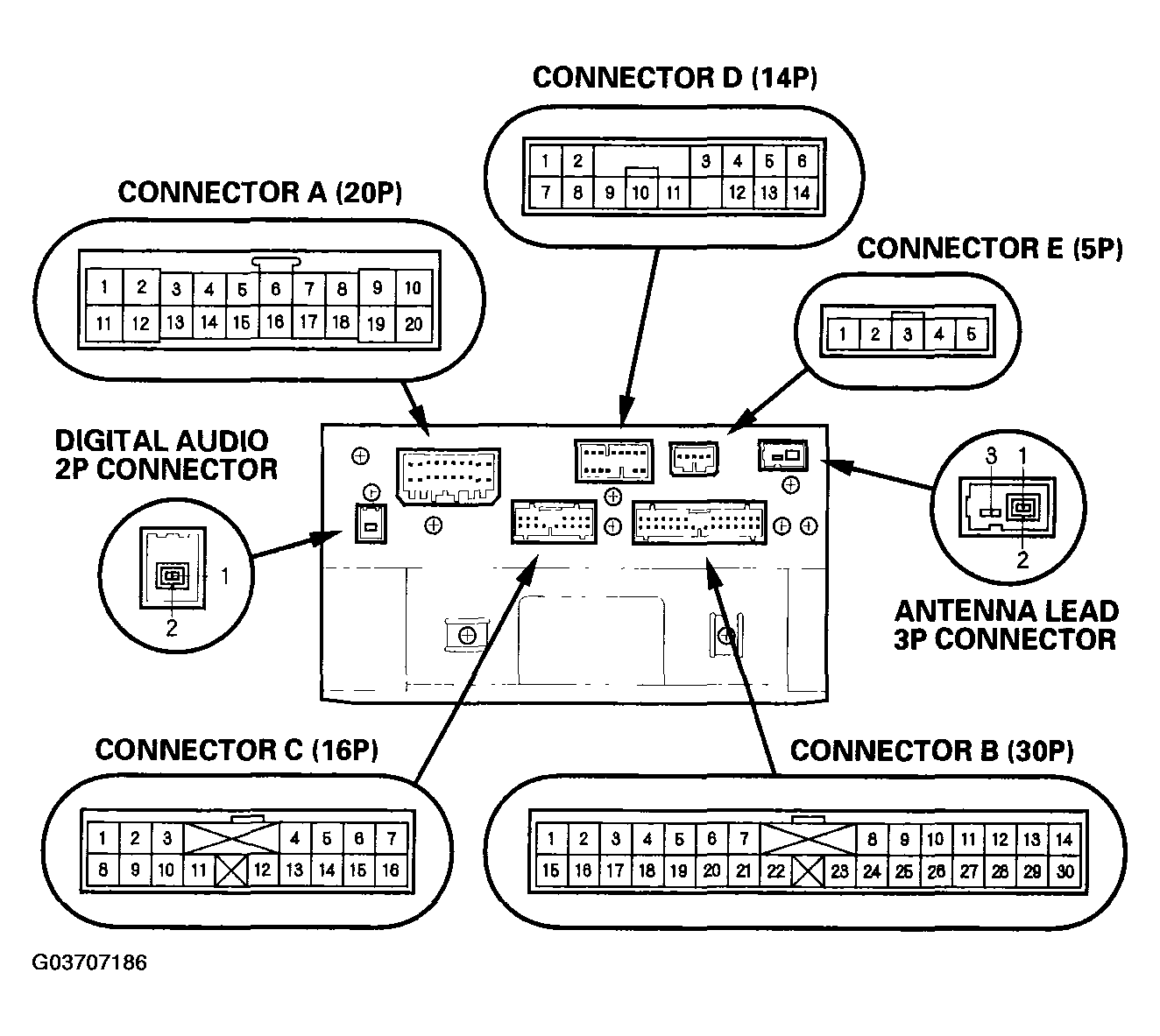

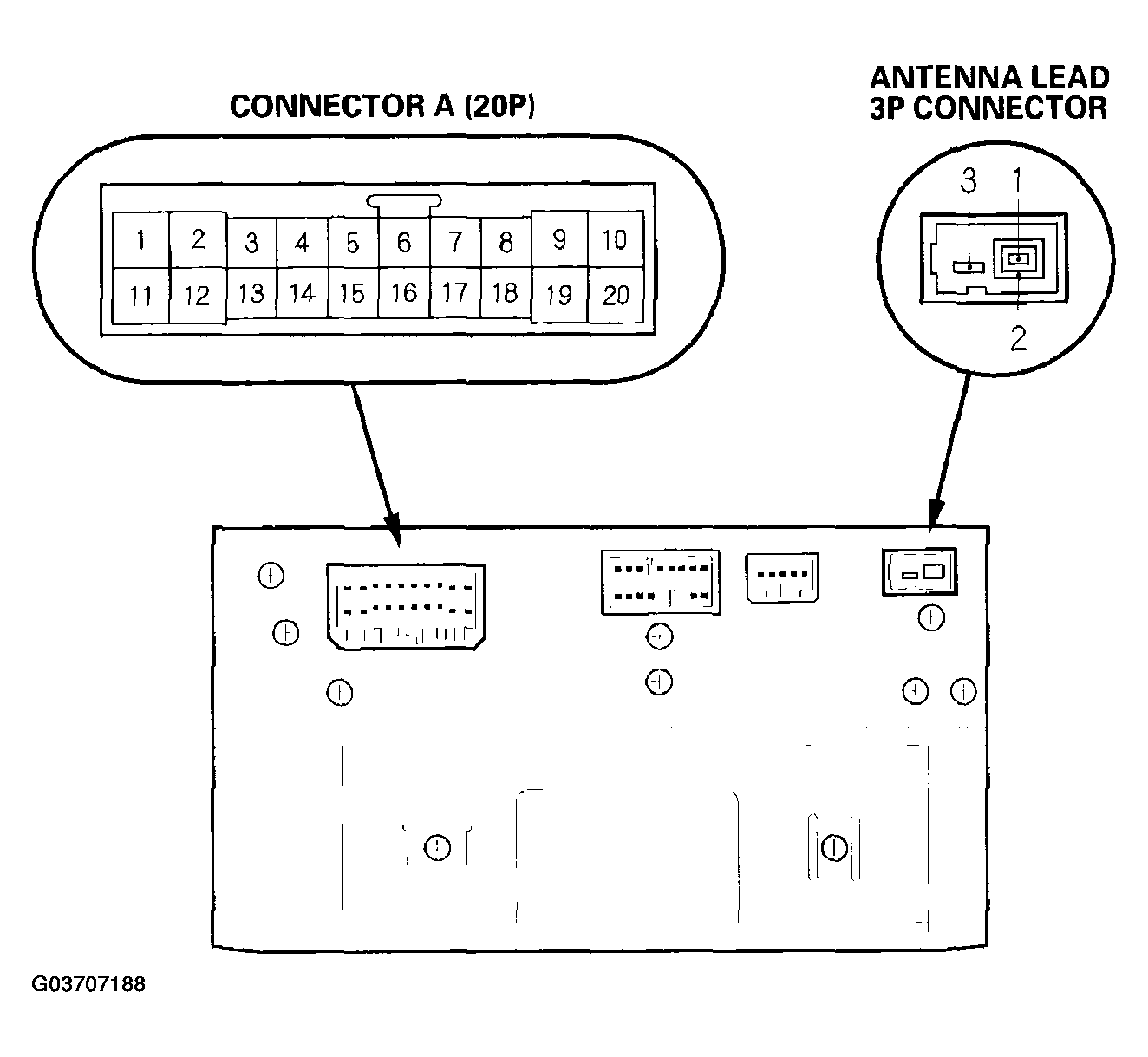

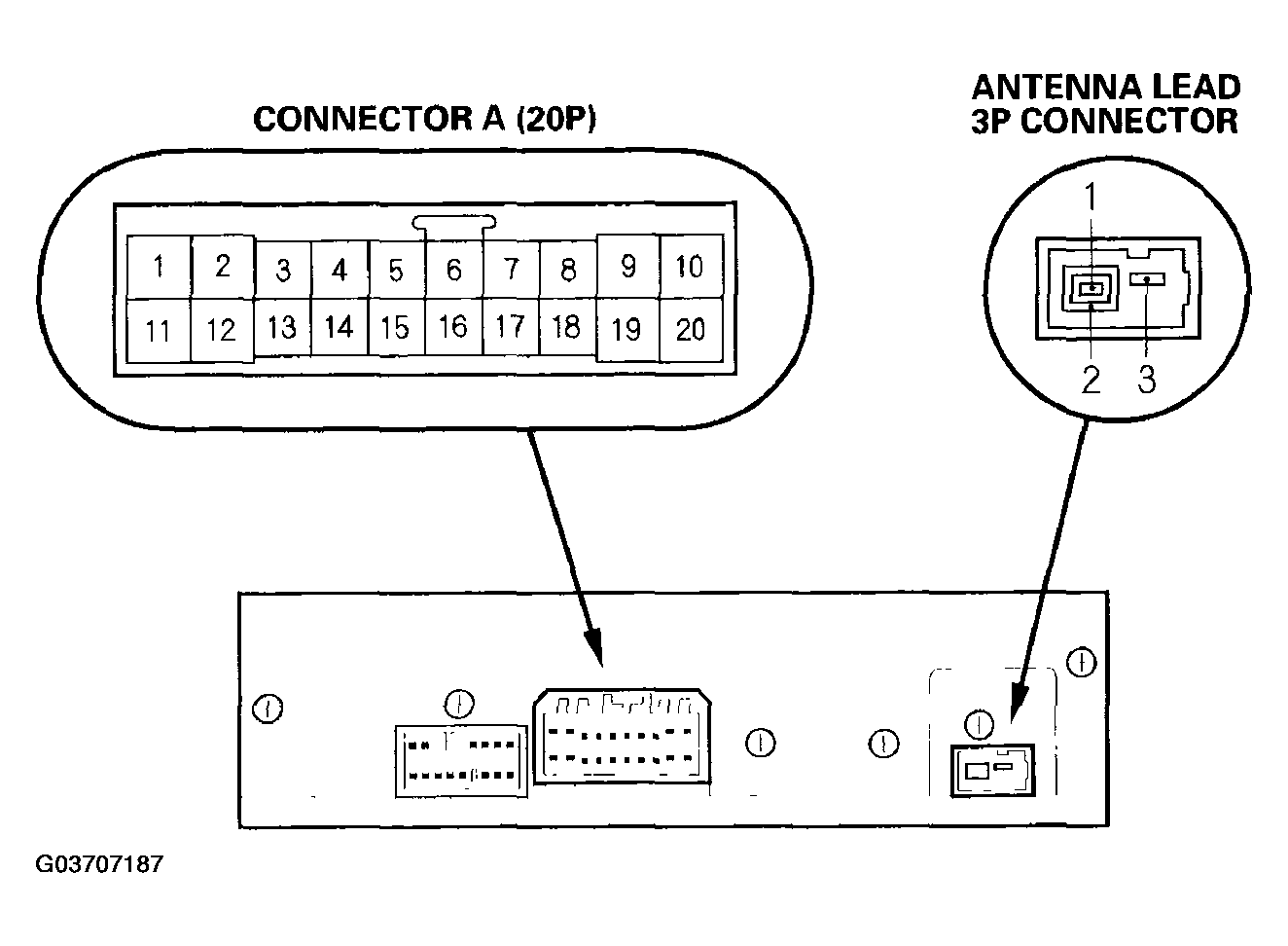

When replacing an audio unit connector, match the wires to the cavities listed in the table shown in Figure , with navigation/with entertainment system & Figure , without navigation/with rear entertainment system.
