Audio Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations, (see AIR BAG RESTRAINT SYSTEMS , and the precautions and procedures (see AIR BAG RESTRAINT SYSTEMS ) in the SRS before performing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.

Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION )
Disconnect the audio unit connector (A) and the antenna lead (B) from the audio unit.
Remove the screws (A) and the audio unit (B).

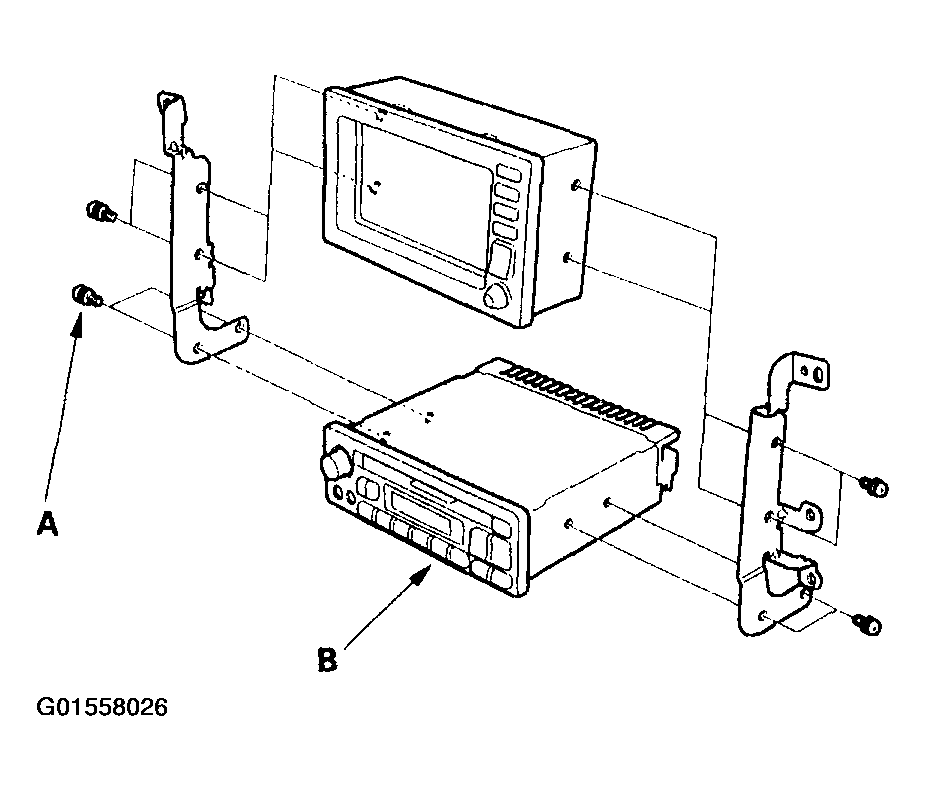

Fig 1: Removing Screws & Audio Unit (With Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

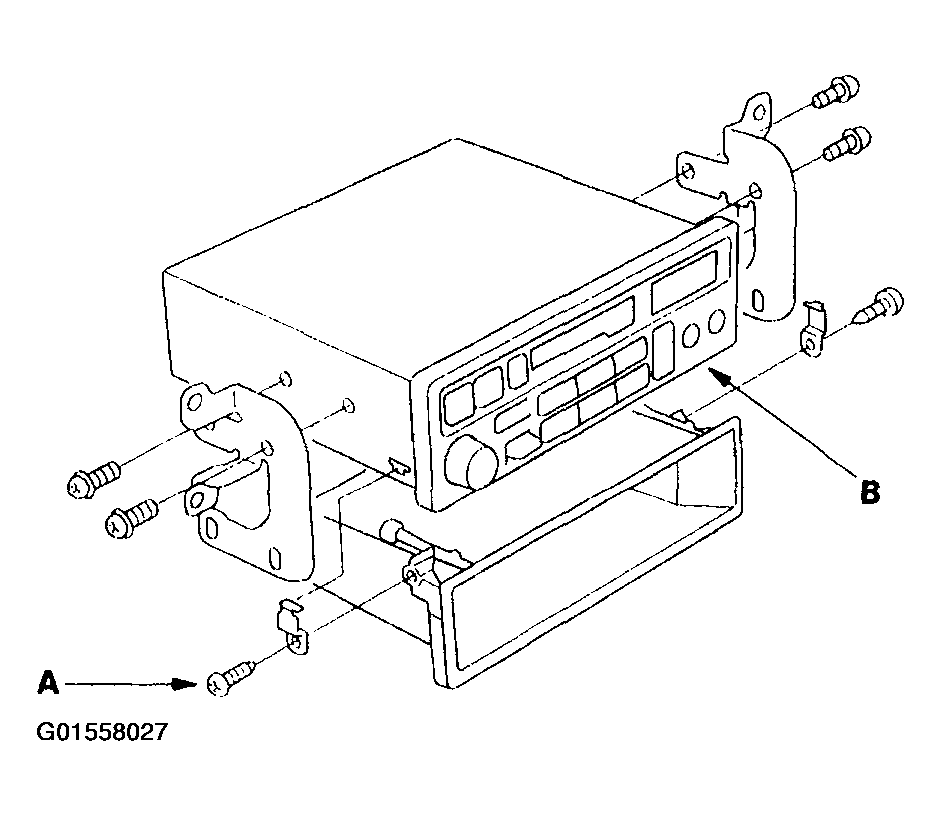

Fig 2: Removing Screws & Audio Unit (Without Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Make sure the audio unit connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft codes for the radio and the navigation system, then enter the customer's radio station presets.
