Radio Remote Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

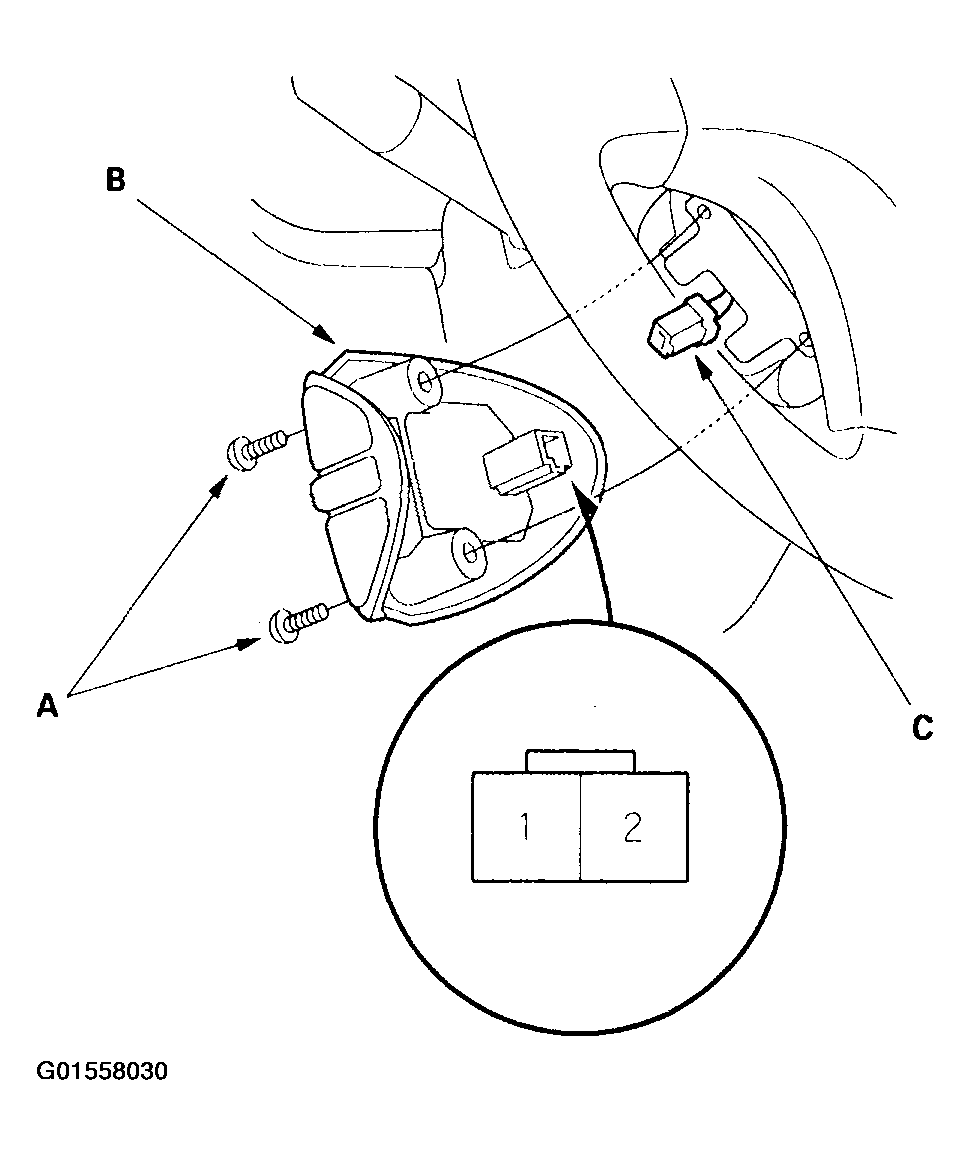

Remove the two screws (A) from the radio remote switch (B).

Fig 1: Removing Screws From Radio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the radio remote switch from the steering wheel and disconnect the 2P connector (C).
Measure resistance between the No. 1 and No. 2 terminals in each switch position according to the table.

Fig 2: Measuring Resistance Between No. 1 & No. 2 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the resistance is not as specified, replace the remote switch.
