Audio Unit Connector Inputs and Outputs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When replacing an audio unit connector, match the wires to the cavities listed in the following table. Cavity 1 is not used.

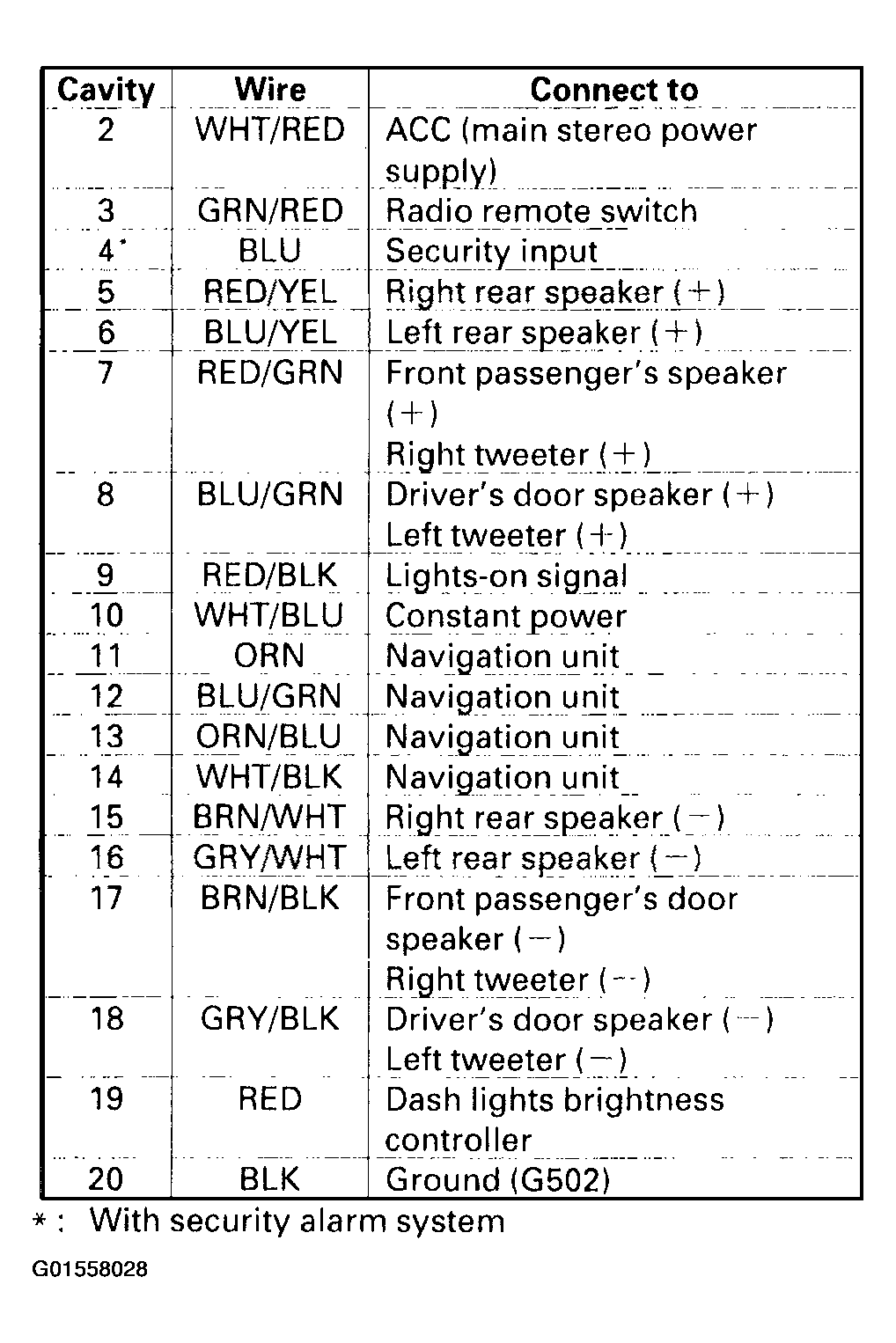

Fig 1: Audio Unit Connector Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.

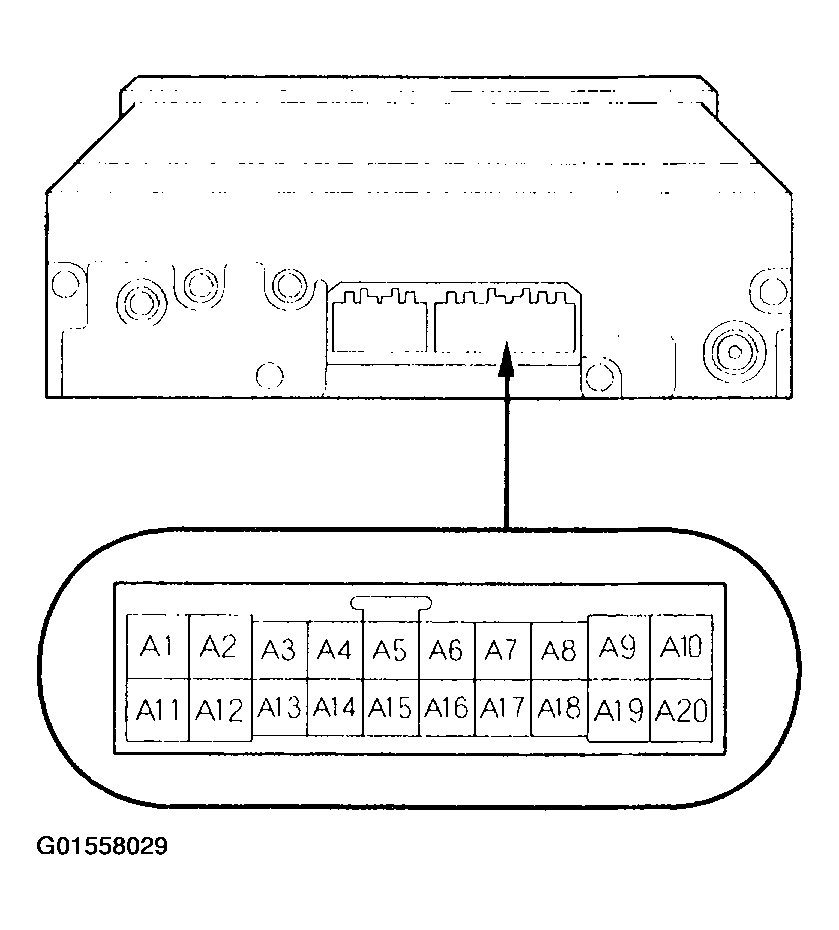

Fig 2: Identifying Audio Unit Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
