Keyless Receiver Unit Input Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the 14P connector (A) from the keyless receiver unit (B).

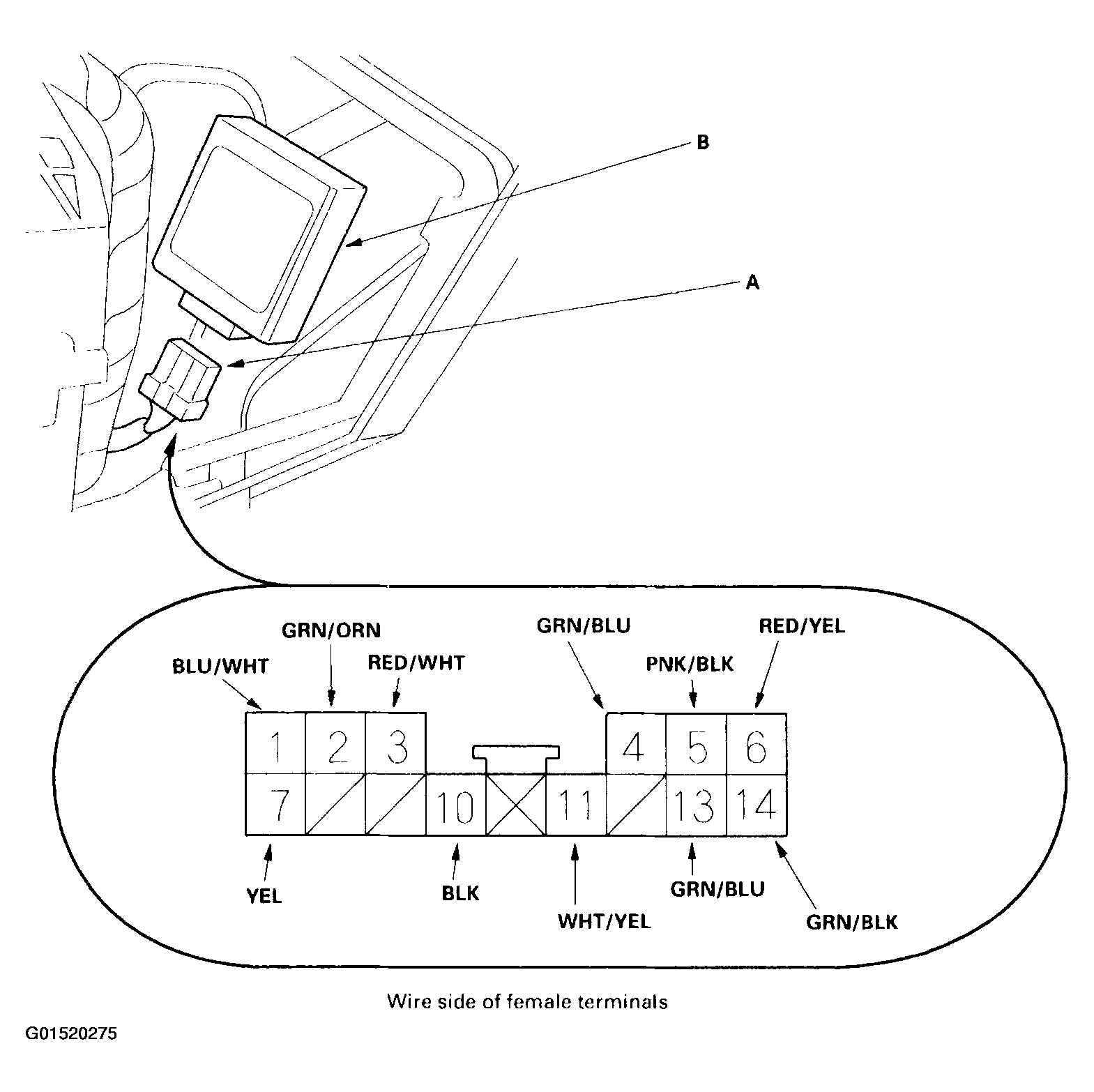

    Fig 1: Disconnecting 14P Connector From Keyless Receiver Unit
    G01520275Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the all connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. Make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 5.

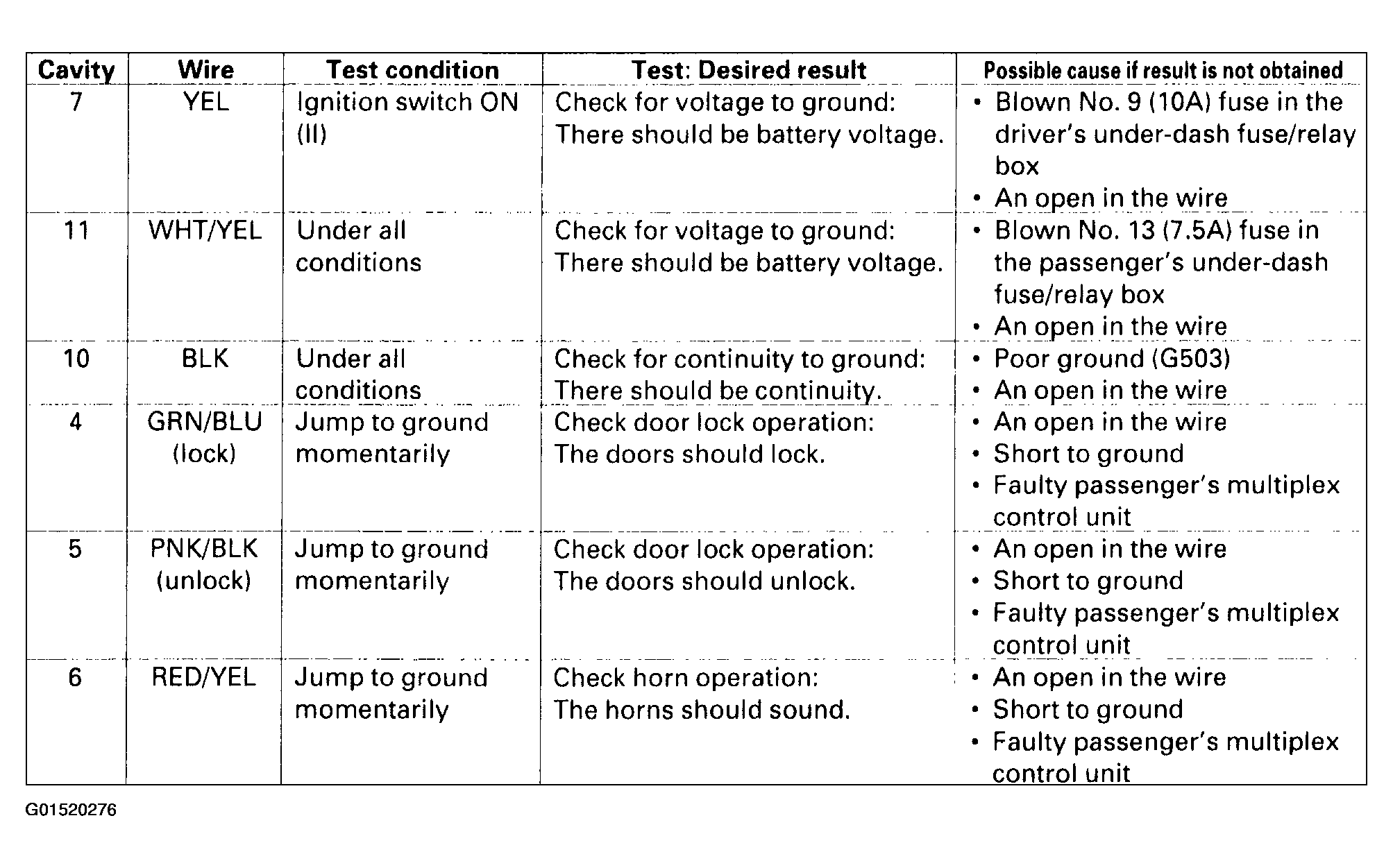

    Fig 2: Keyless Receiver Unit Input Test (Keyless Receiver Unit Disconnected)
    G01520276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Reconnect the connector to the control unit, and perform the following input tests at the keyless receiver unit connector.
    • If any test indicates a problem, find and correct the cause then recheck the system.
    • If all the input tests prove OK, the keyless receiver unit must be faulty; replace it.

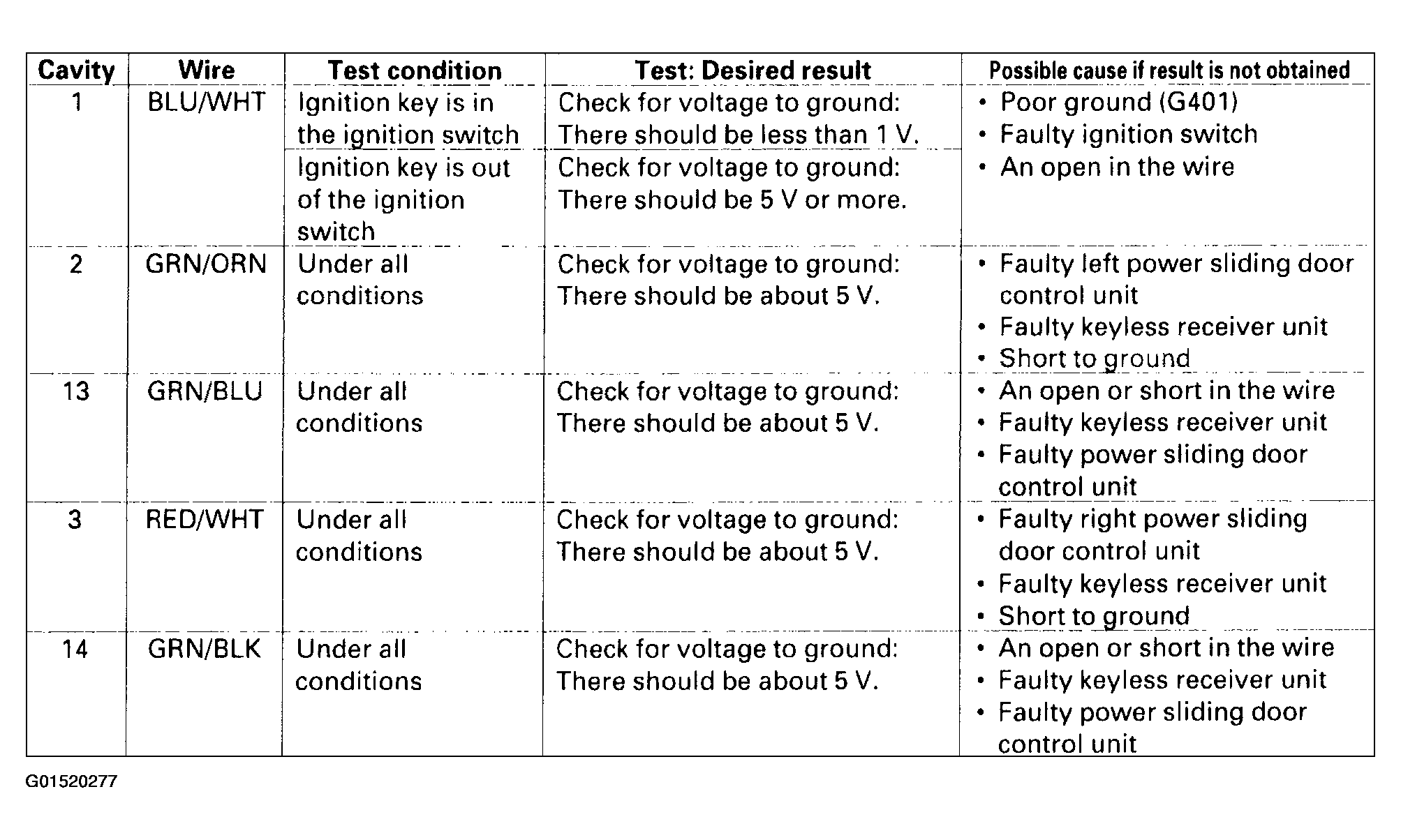

Fig 3: Keyless Receiver Unit Input Test (Keyless Receiver Unit Connected)
G01520277Courtesy of AMERICAN HONDA MOTOR CO., INC.
