With Navigation System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the No. 3 (7.5A) fuse in the driver's under-dash fuse/relay box.

    Is the fuse OK?

    1. YES  - Go to step 2.
    2. NO  - Replace the fuse and recheck.
  2. Disconnect the climate control panel 16P connector.
  3. Turn the ignition switch ON (II).
  4. Measure the voltage between the No. 6 terminal of the climate control panel 16P connector and body ground.
    Fig 1: Measuring Voltage Between No. 6 Terminal Of Climate Control Panel 16P Connector & Body Ground
    G01520131Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    1. YES  - Go to step 5.
    2. NO  - Repair open in the wire between the No. 3 fuse in the driver's under-dash fuse/relay box and the climate control panel.
  5. Turn the ignition switch OFF.
  6. Disconnect climate control unit connectors A (16P) and B (26P).
  7. Check for continuity between the following terminals of climate control panel 16P connector and climate control unit connectors A (16P) and B (26P).
    CLIMATE CONTROL PANEL CONNECTOR-TO-CLIMATE CONTROL CONNECTORS CONTINUITY CHART

    Climate Control Panel 16P Connector Terminal Climate Control Unit Connectors A (16P) Terminal
    No. 4 No. 11
    No. 5 No. 13
    No. 13 No. 12
    CLIMATE CONTROL PANEL CONNECTOR-TO-CLIMATE CONTROL CONNECTORS CONTINUITY CHART

    Climate Control Panel 16P Connector Terminal Climate Control Unit Connectors B (26P) Terminal
    No. 7 No. 2
    No. 11 No. 160

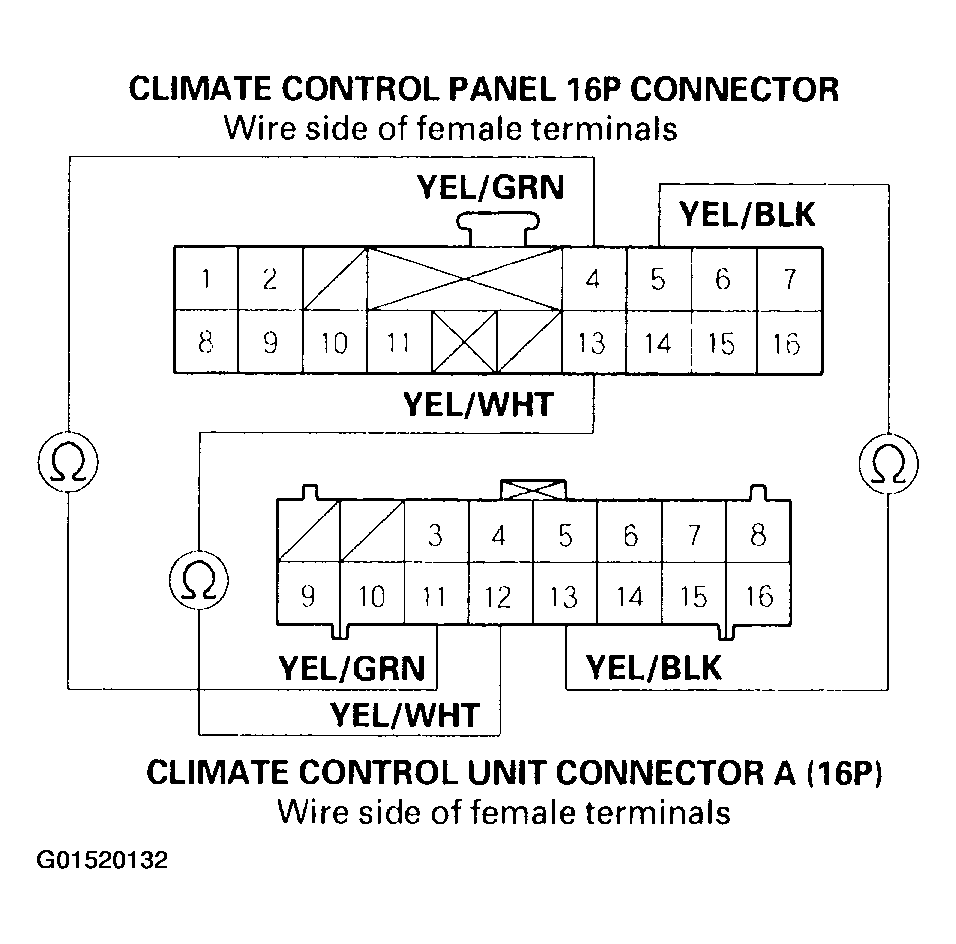

    Fig 2: Checking Continuity Between Following Terminals Of Climate Control Panel 16P Connector & Climate Control Unit Connectors A (16P).
    G01520132Courtesy of AMERICAN HONDA MOTOR CO., INC.

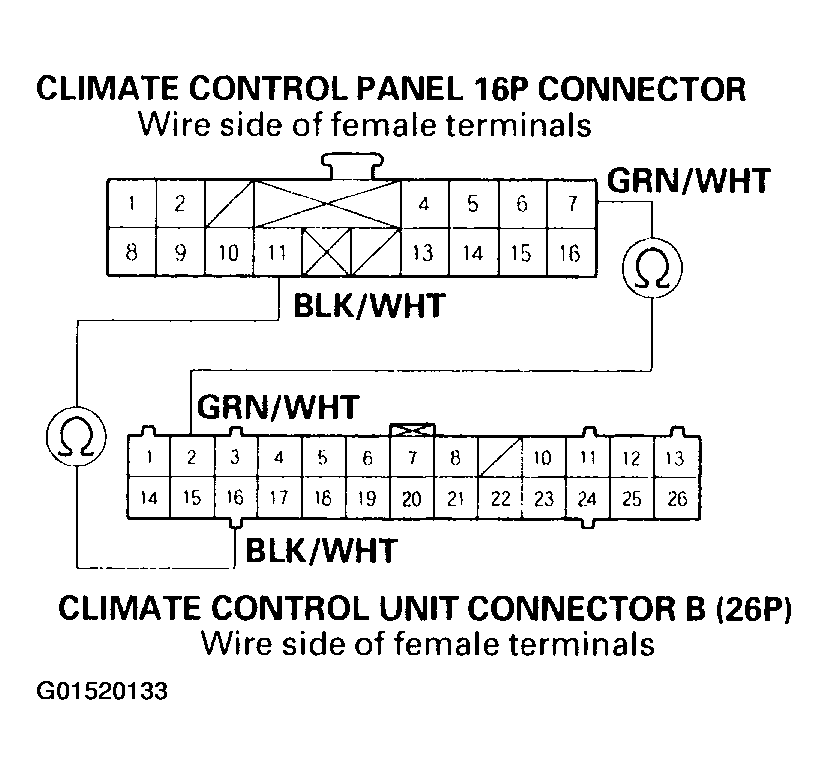

    Fig 3: Checking Continuity Between Following Terminals Of Climate Control Panel 16P Connector & Climate Control Unit Connectors B (26P)
    G01520133Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Go to step 8.
    2. NO  - Repair any open in the wire(s) between the climate control panel and climate control unit.
  8. Check for continuity between the No. 4, 5, 7, 11 and 13 terminals of the climate control panel 16P connector and body ground individually.

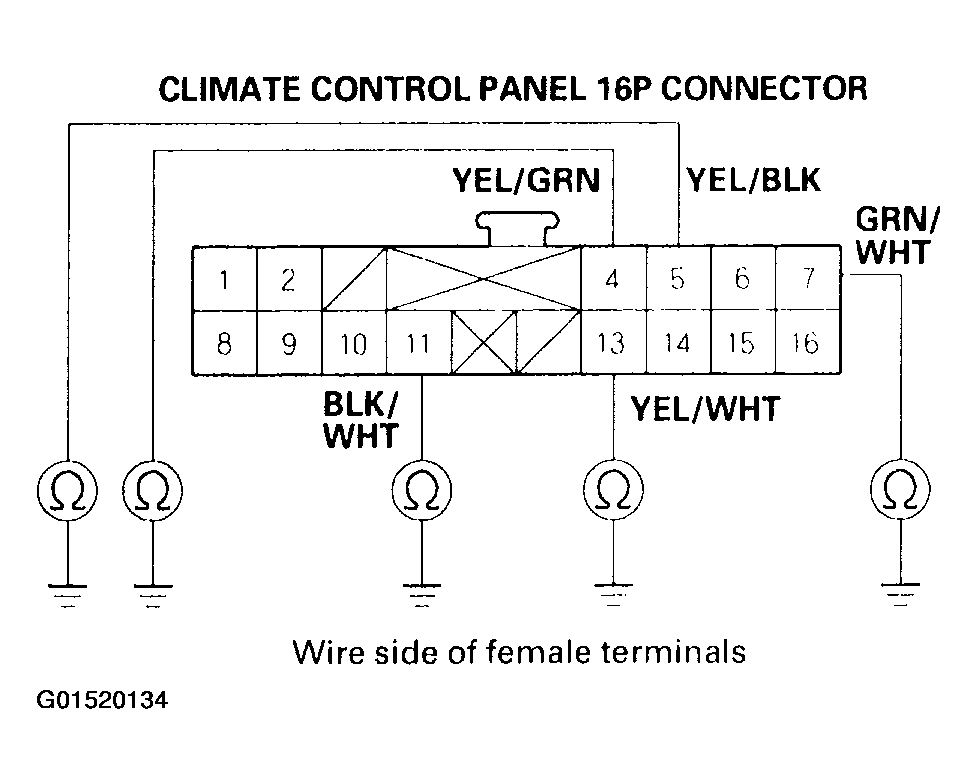

    Fig 4: Checking Continuity Between No. 4, 5, 7, 11 & 13 Terminals Of Climate Control Panel 16P Connector & Body Ground Individually
    G01520134Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  - Repair any short to body ground in the wire(s) between the climate control panel and the climate control unit.
    2. NO  - Check for loose wires or poor connections at the climate control panel 16P connector, If the connections are good substitute a known-good, climate control panel and go to step 9.
  9. Reconnect the climate control panel 16P connector.
  10. Reconnect climate control unit connectors A (16P) and B (26P).
  11. Turn the ignition switch ON (II) and check the climate control panel display.

    Does the climate control panel display work?

    1. YES  - Repair is complete.
    2. NO  - Check for loose wires or poor connections at climate control unit connectors A (16P) and B (26P) If the connections are good, substitute a known good climate control unit, and recheck, If the symptom/indication goes away, replace the original climate control unit.
