Without Navigation System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

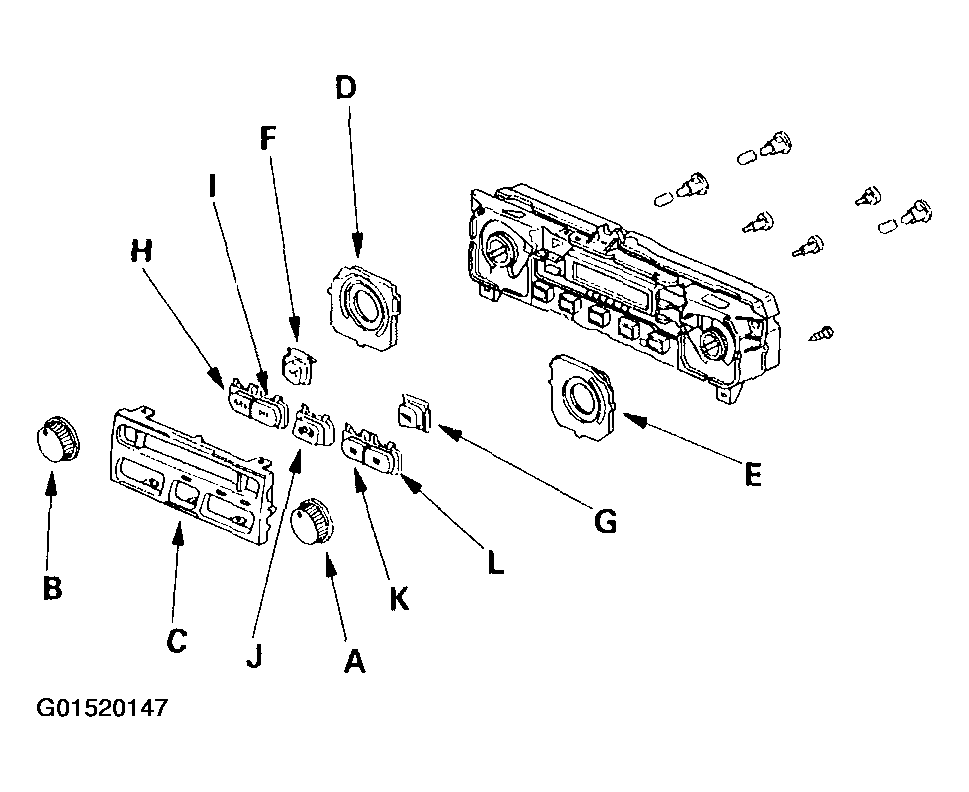

- Remove the fan switch (A) and temperature control dials (B), then remove the front (C), temperature control (D) and fan switch (E) panels, Remove the A/C switch (F), MODE control switch (G), AUTO switch (H), OFF switch (I), recirculation control switch (J), front defroster switch (K) and rear defogger switch (L) buttons.
- Reassemble the control unit in the reverse order of removal.
