Climate Control Unit Inputs and Outputs (With Navigation System)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

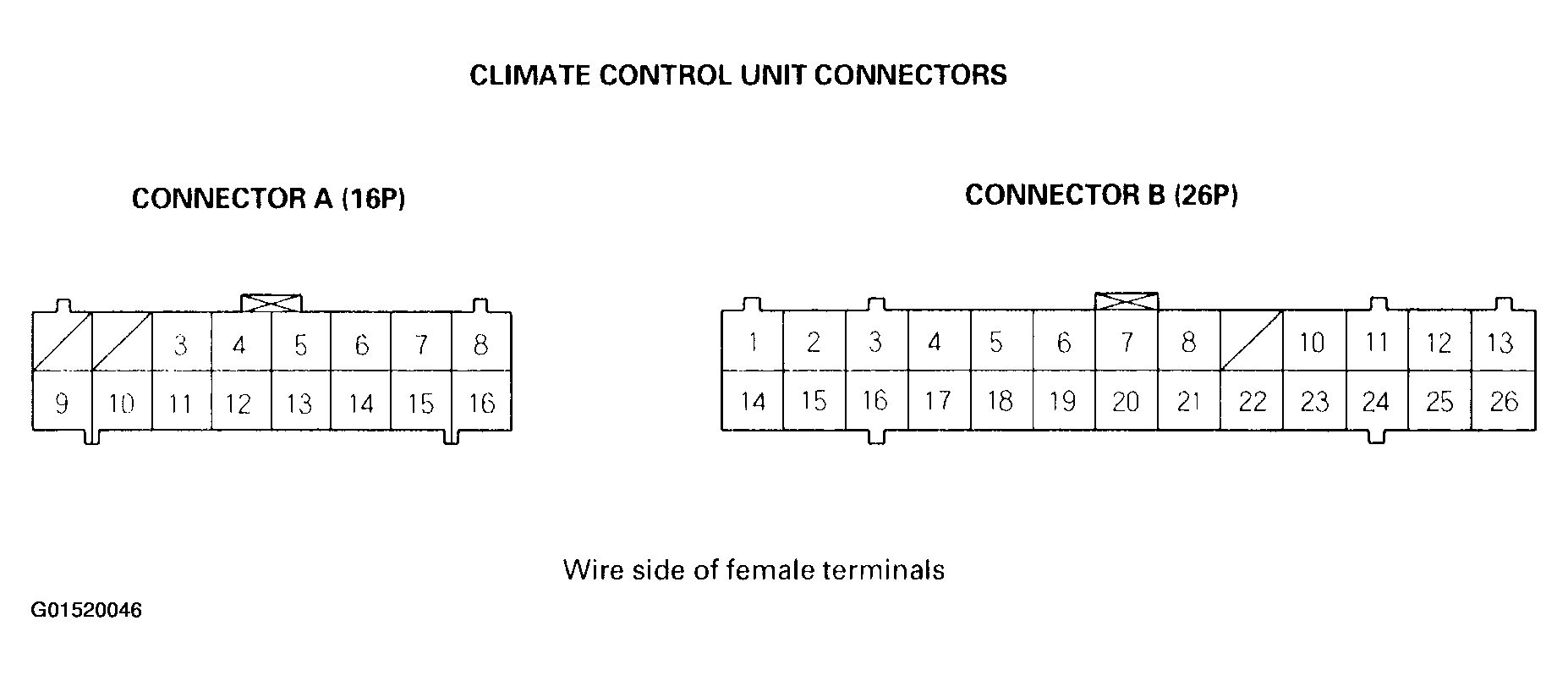

Fig 1: Identifying Climate Control Unit Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.

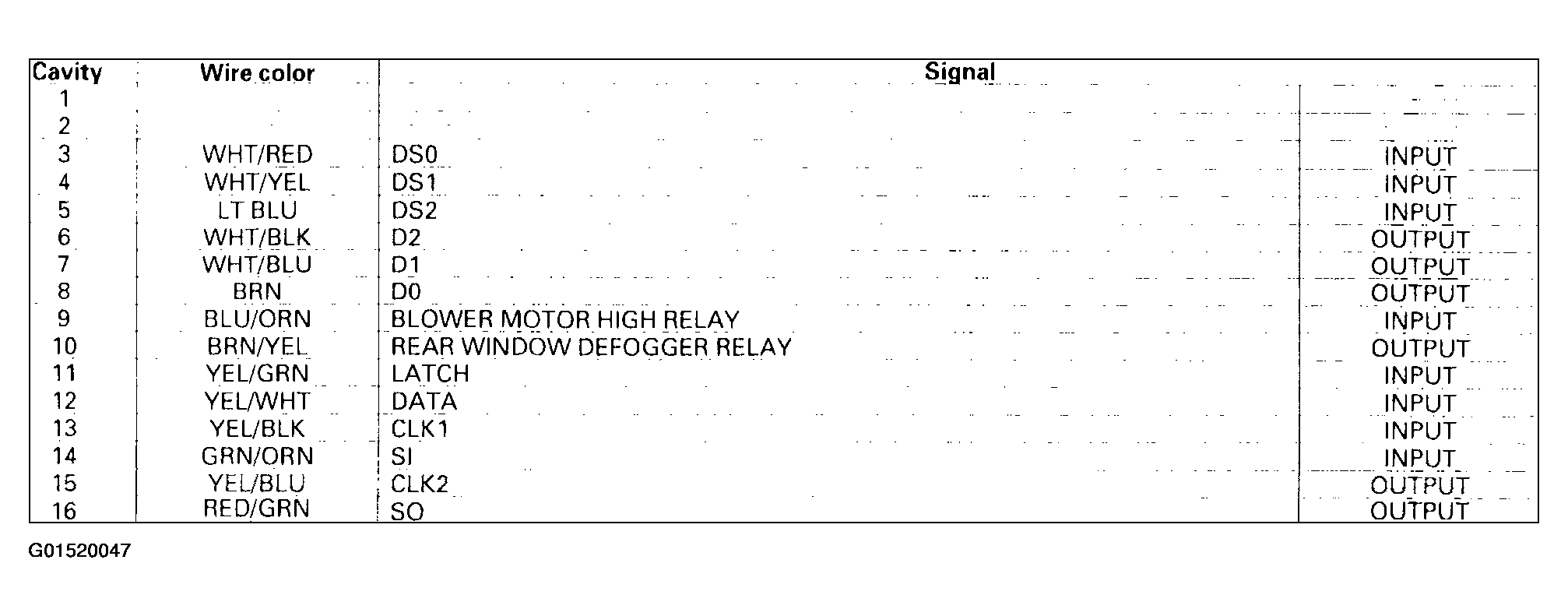

Fig 2: Climate Control Unit Inputs and Outputs (With Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

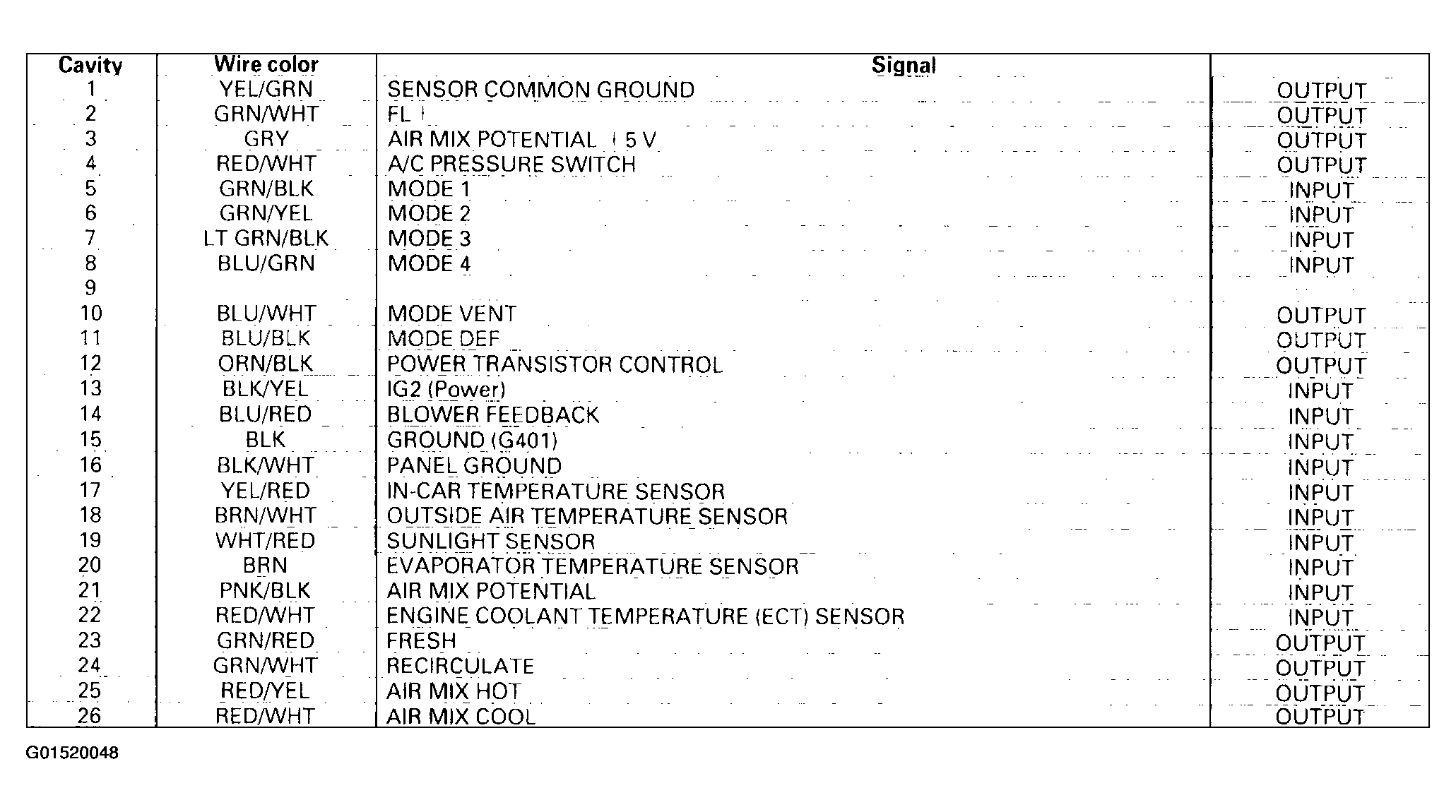

Fig 3: Climate Control Unit Inputs and Outputs (With Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
