Keyless Entry: Locations

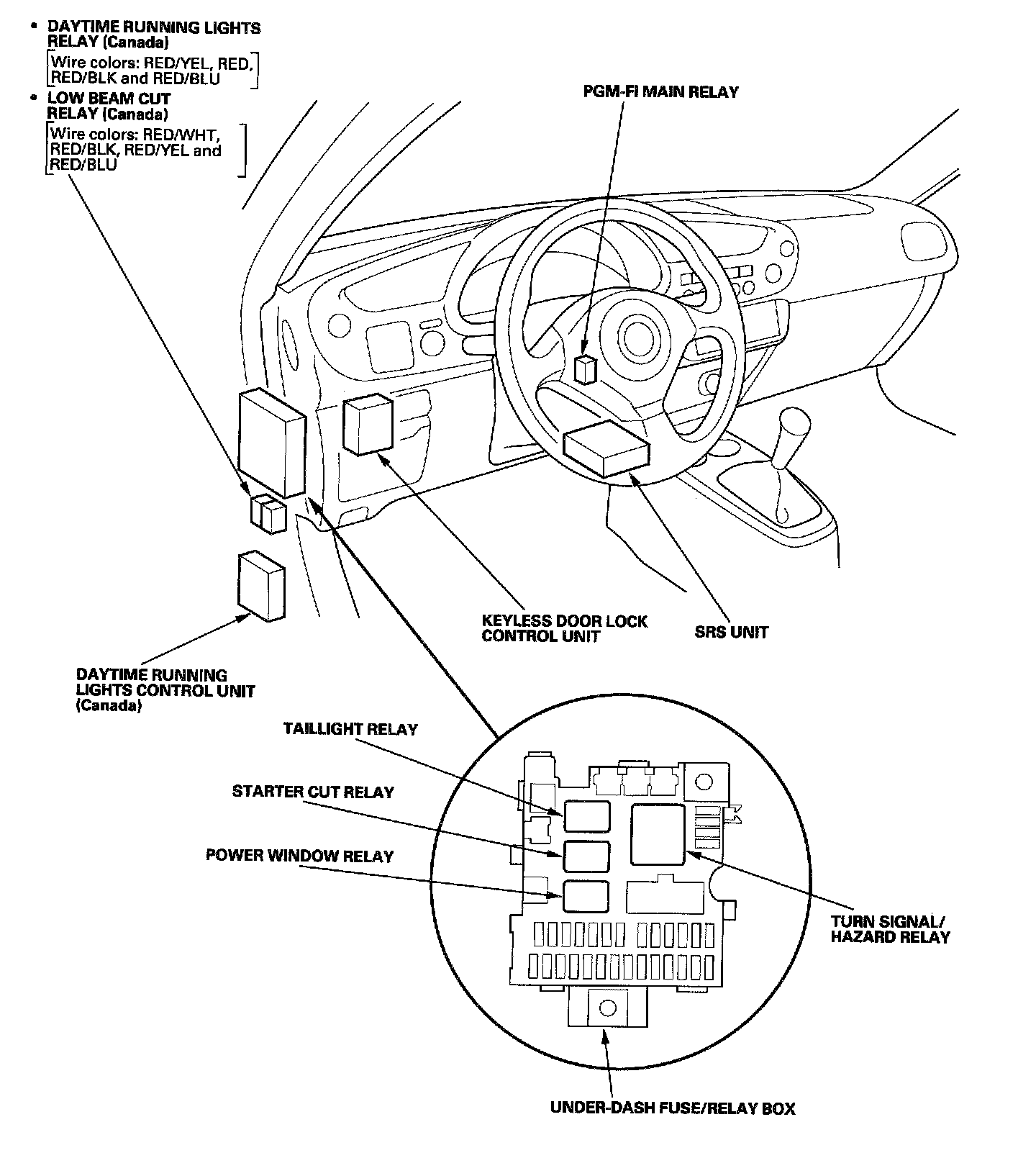

Under Dash Relay Box View:



Starting System - Component Location Index:

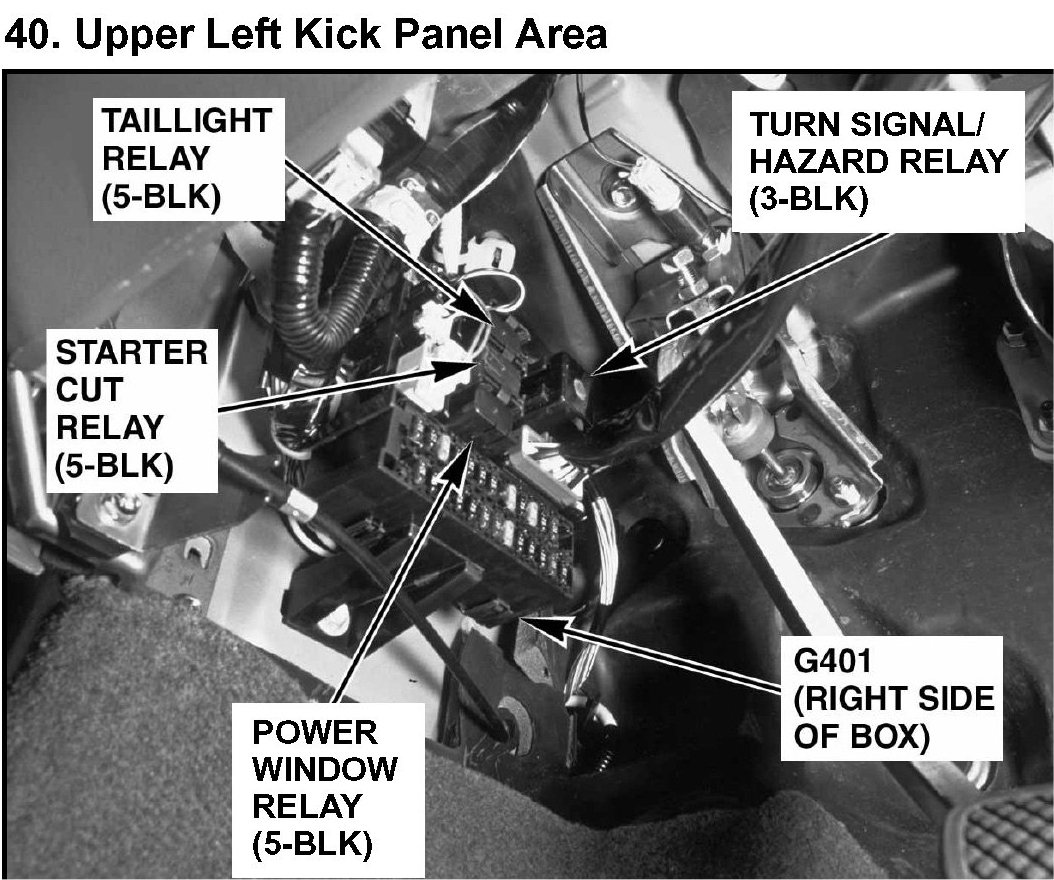

40. Upper Left Kick Panel Area:
