Right Power Sliding Door Control Unit Input Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove right rear side trim panel. See REAR SIDE TRIM PANEL under REMOVAL & INSTALLATION.
Disconnect right power sliding door control unit 26-pin harness connector "A" and 5-pin harness connector "B". Inspect all the connectors and socket terminals to be sure the are all making good contact. See Fig 1.

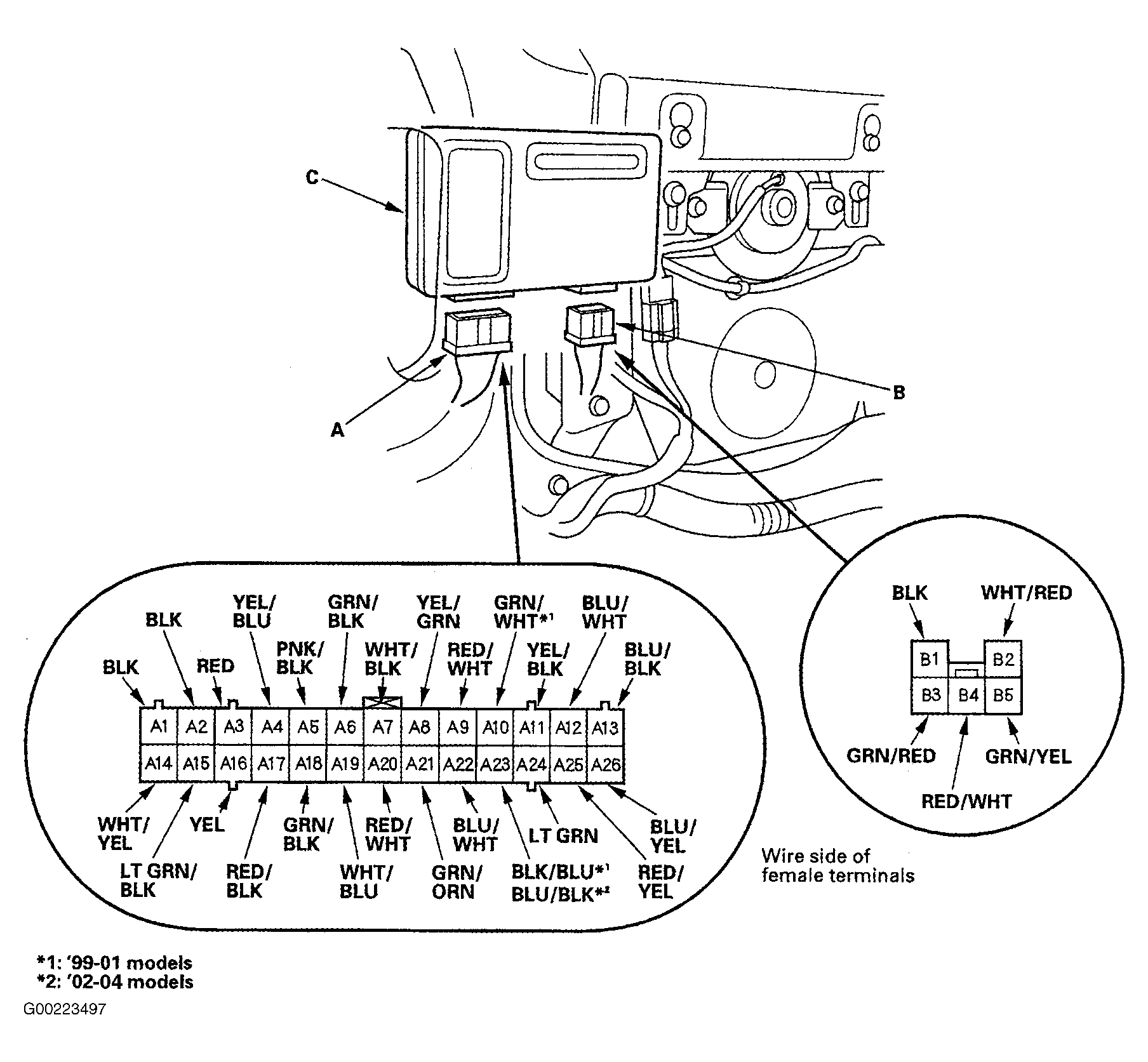

Fig 1: Inspecting Connectors And Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If problem exists, repair harness connector(s) as necessary and retest system. If problem does not exist, perform right power sliding door control unit input tests. See Fig 2-Fig 4 .
If any input test is not as specified, repair indicated fault and retest system. See WIRING DIAGRAMS .

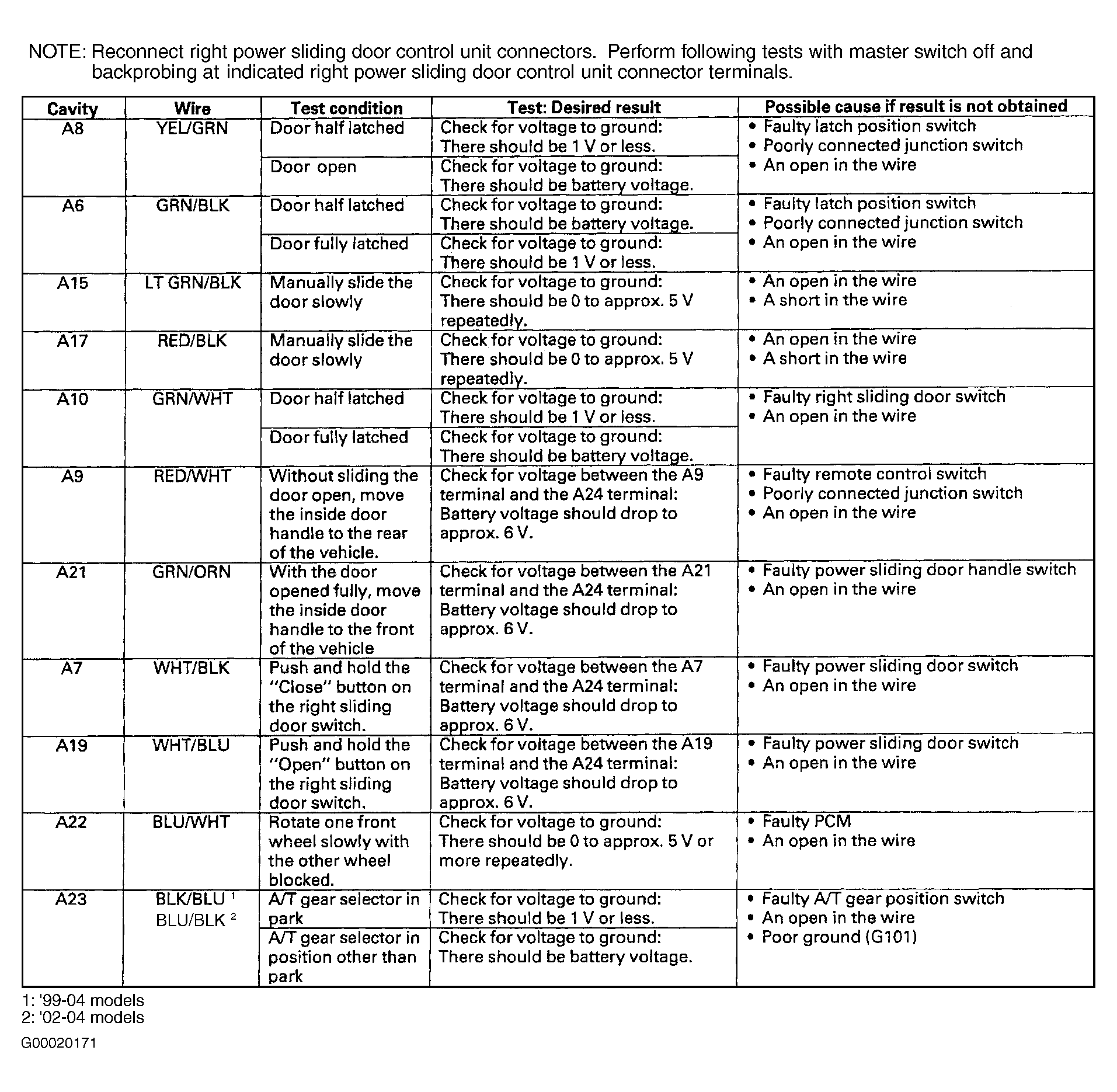

Fig 2: Right Power Sliding Door Control Unit Input Tests (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

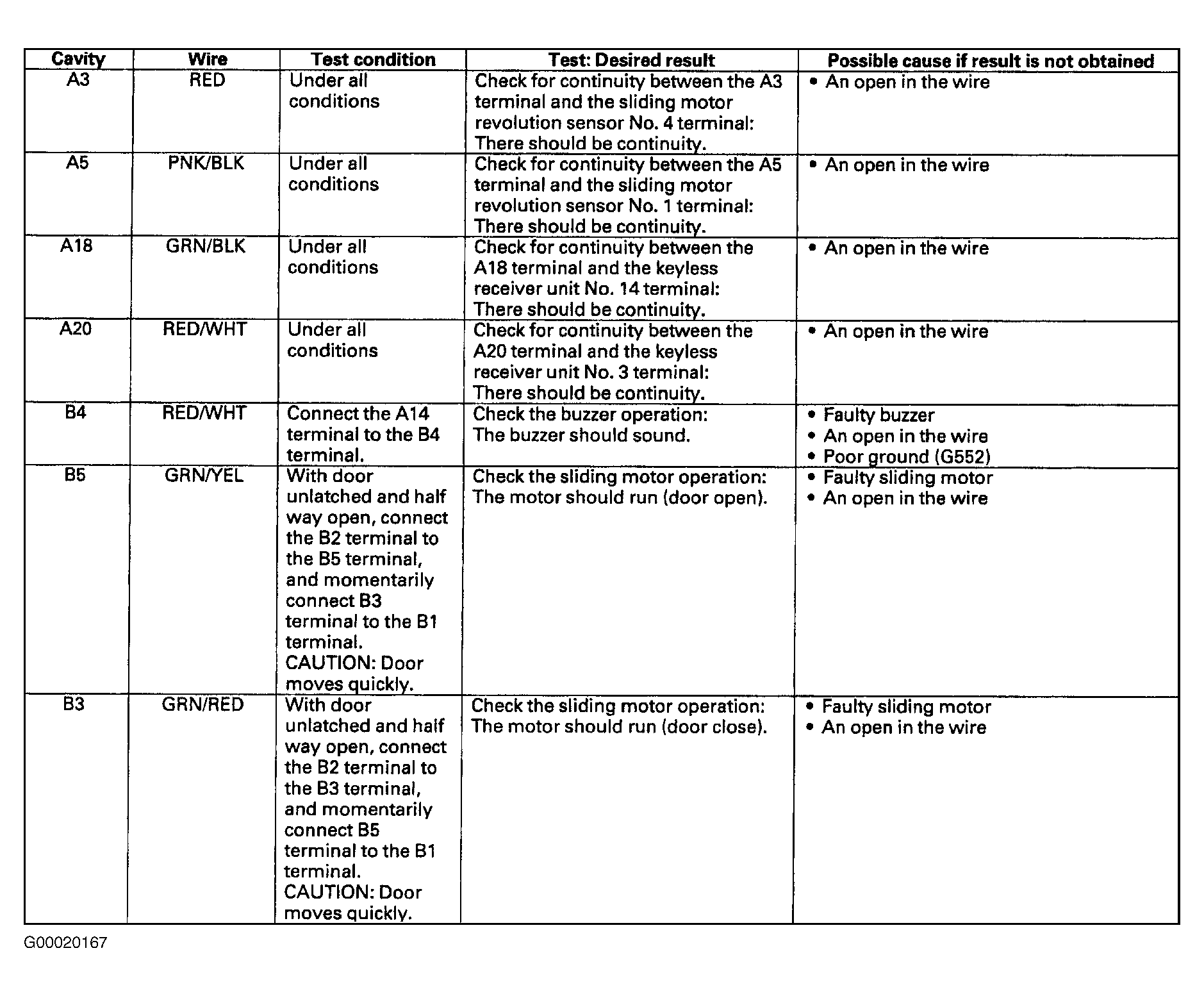

Fig 3: Right Power Sliding Door Control Unit Input Tests (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

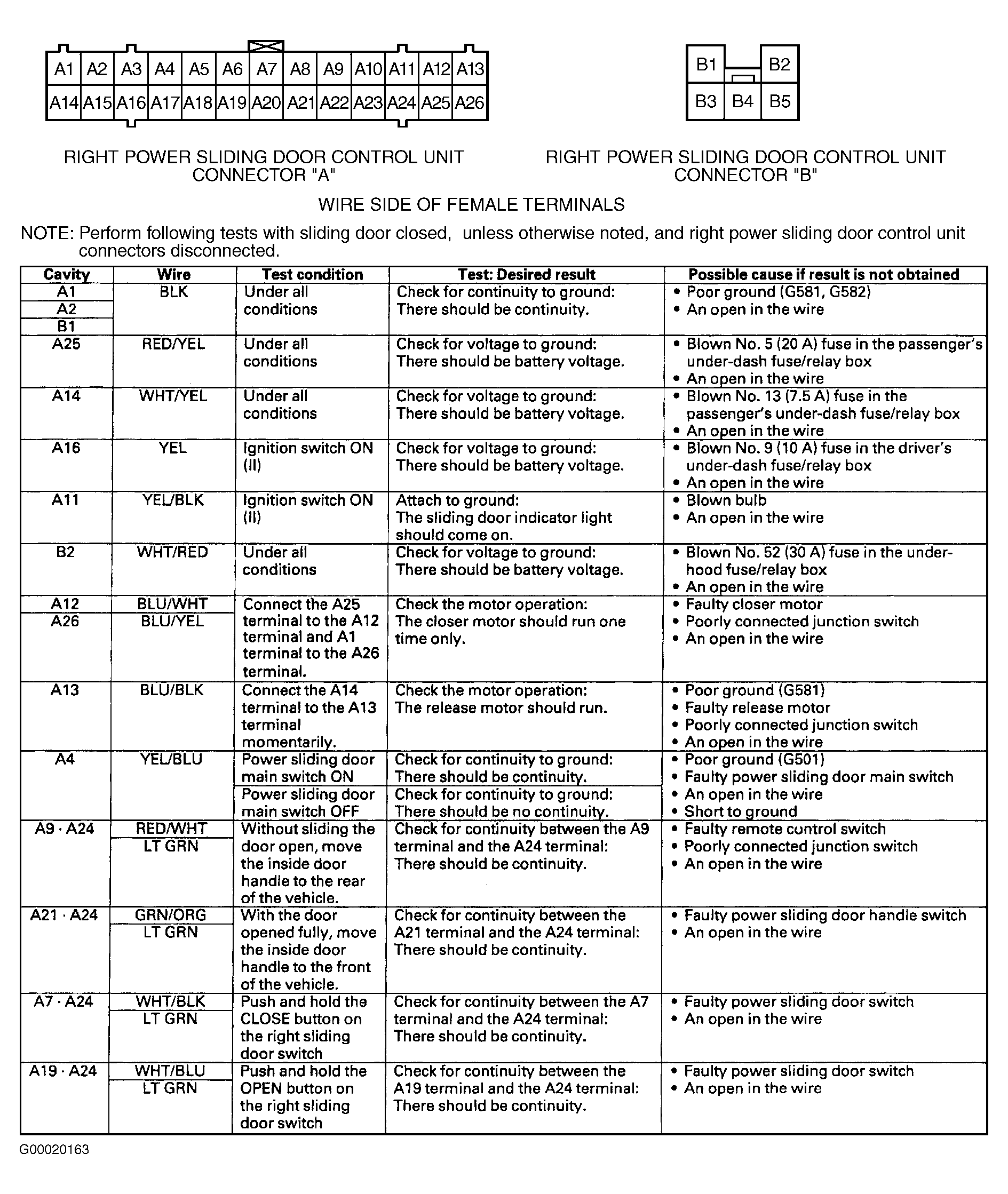

Fig 4: Right Power Sliding Door Control Unit Input Tests (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
