Immobilizer Control Unit-Receiver Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).

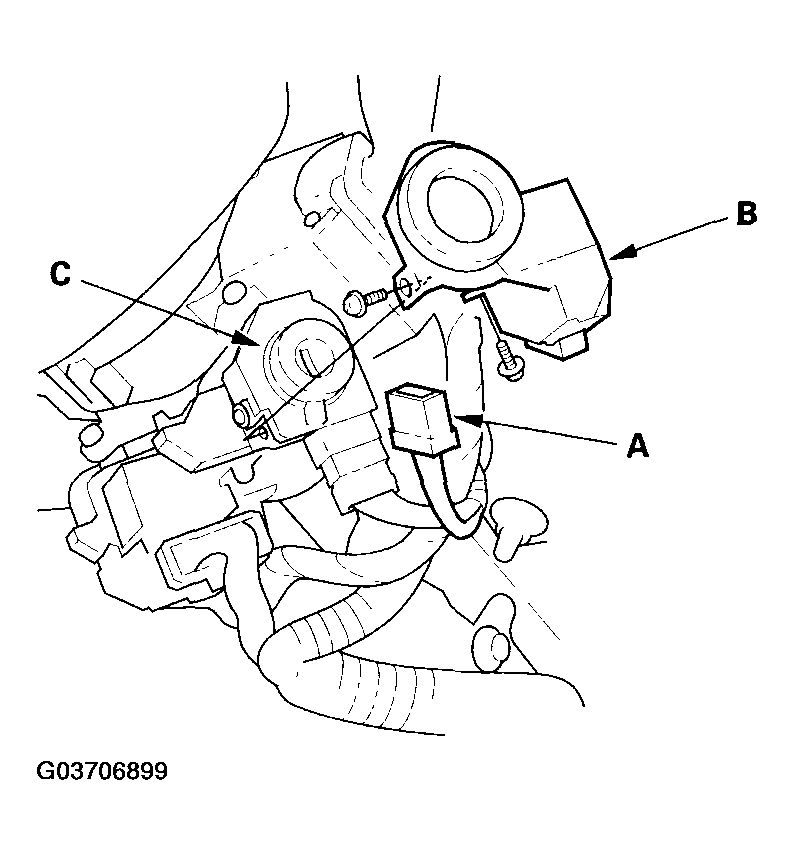

    Fig 1: Disconnecting 7P Connector From Immobilizer Control Unit-Receiver
    G03706899Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).
  5. Install the immobilizer control unit-receiver in the reverse order of removal.
  6. After replacement, check the immobilizer system.
