Dashboard Power Tailgate Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's switch panel (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL/INSTALLATION ).

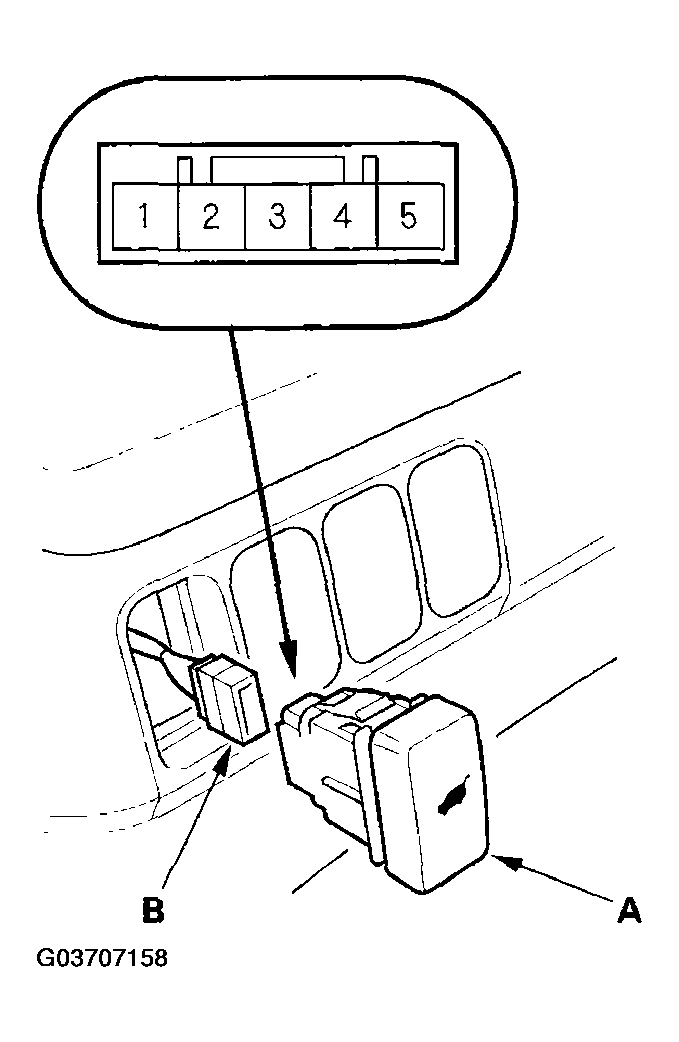

Push out the power tailgate switch (A) from behind the dashboard, and disconnect the 5P connector (B) from switch.

Fig 1: Pushing Out Power Tailgate Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2.

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the illumination bulb (C) or the switch.

Fig 3: Replacing Illumination Bulb Or Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
