Drive Unit Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear pillar (see TRIM REMOVAL/INSTALLATION - PILLAR AREAS ) and headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P and 8P connectors (A) from the drive unit (B).

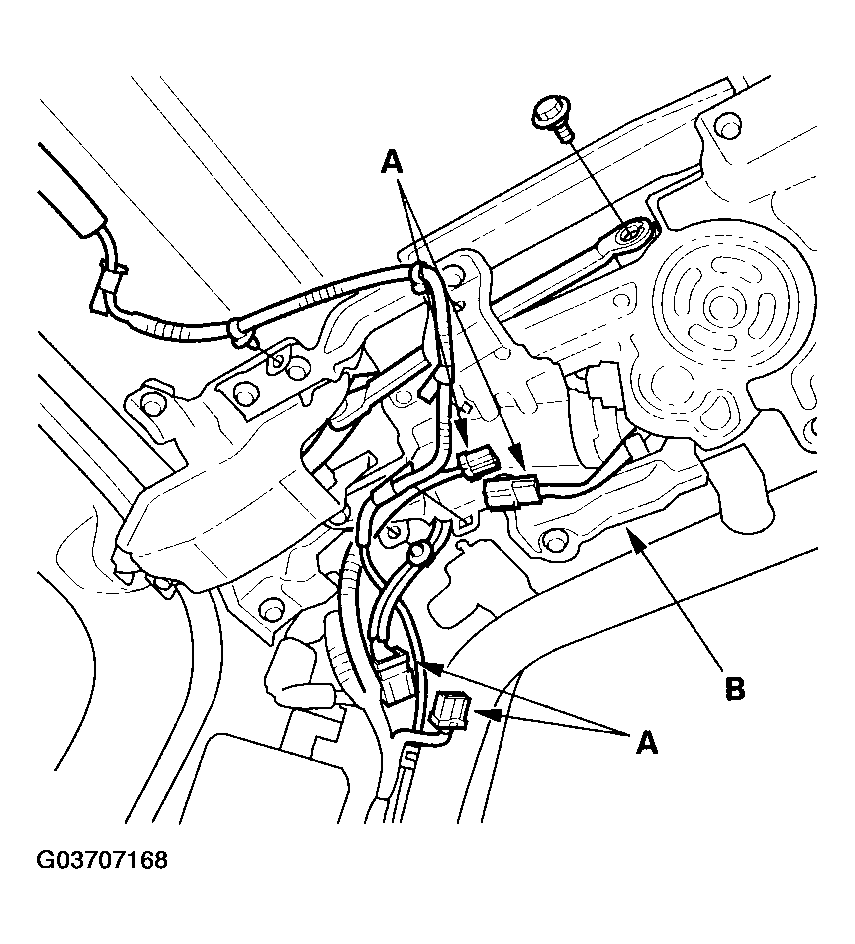

    Fig 1: Disconnecting 2P And 8P Connectors From Drive Unit
    G03707168Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Close the tailgate, then remove the nut and support strut (C).
  4. Remove the mounting bolts and drive unit (A).

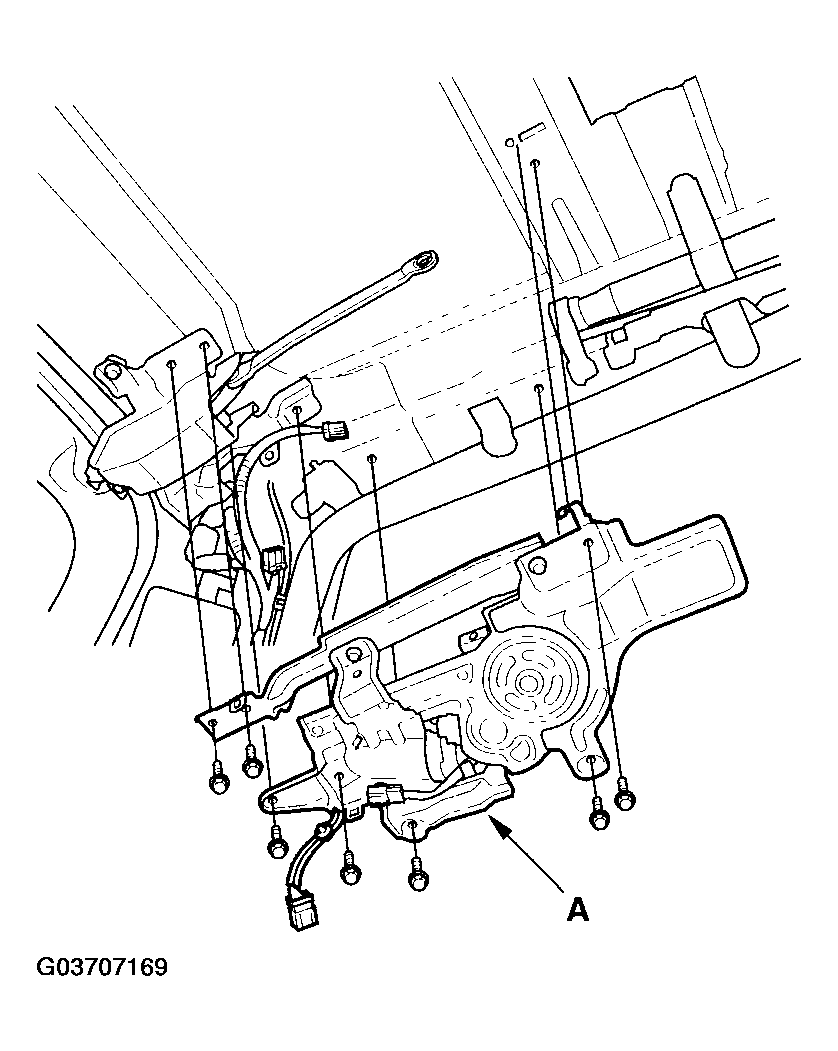

    Fig 2: Removing Mounting Bolts And Drive Unit
    G03707169Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install in the reverse order of removal.
