Pinch Sensor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Open the tailgate.
Remove the clips, screws and nuts from the pinch sensor (A).
NOTE: The illustration shown in Fig 1, shows right side pinch sensor, left side is symmetrical.

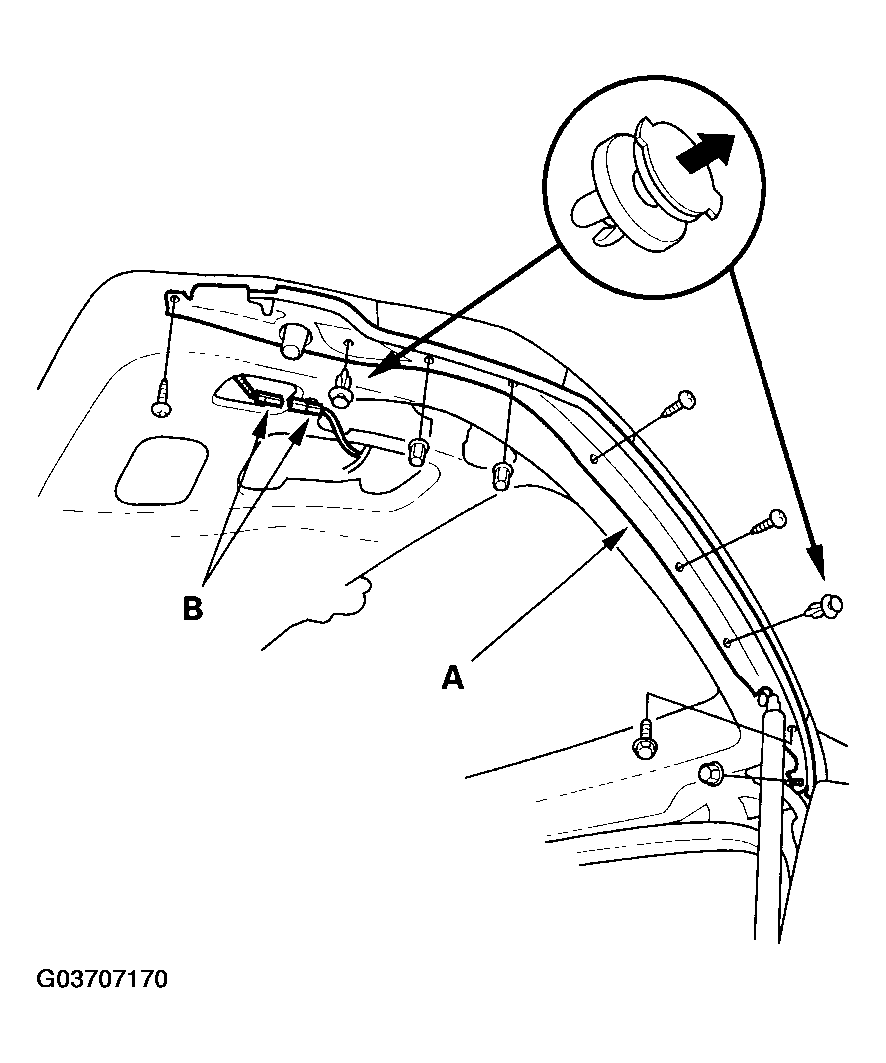

Fig 1: Removing Pinch Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the pinch sensor.
Install in the reverse order of removal.
