Brake Pedal Position Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 4P connector from the switch (A).

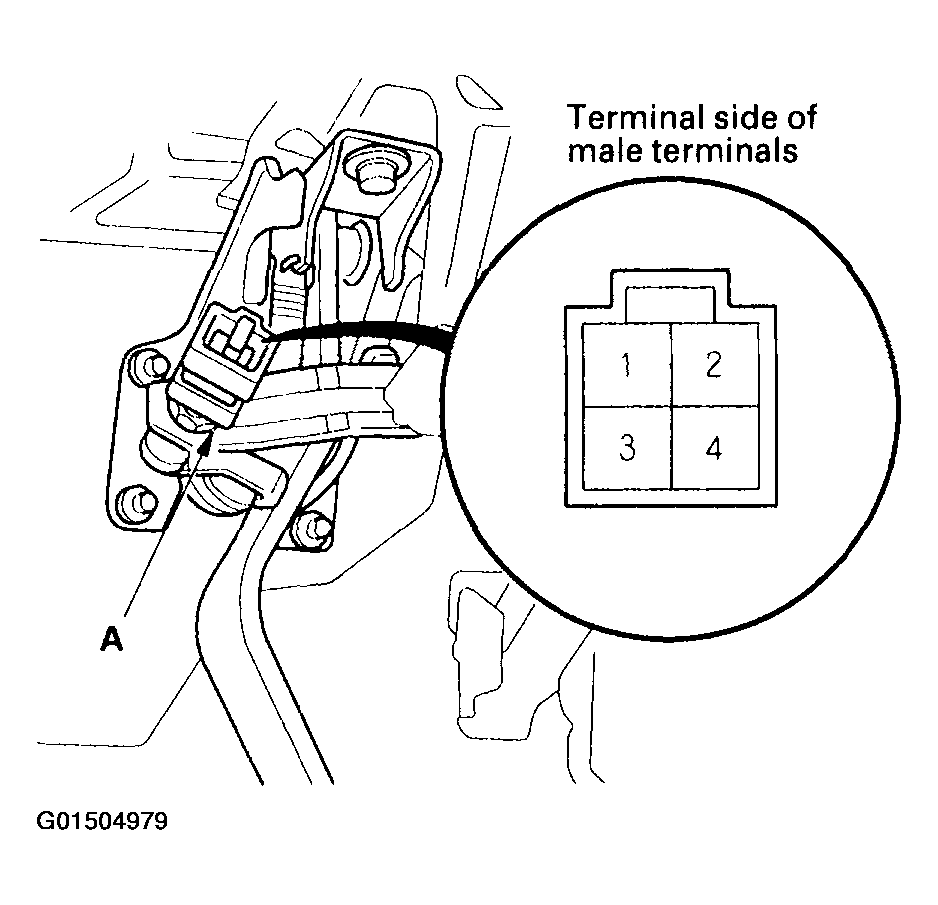

Fig 1: Disconnecting The 4P Connector From The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake pedal position switch.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, adjust or replace the switch or adjust the pedal height (see ADJUSTMENTS in appropriate DISC & DRUM article under MECHANICAL - HYDRAULIC in BRAKES).
Fig 2: Checking For Continuity Between The Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
