ABS/TCS Control Unit Inputs and Outputs for Connector B (16P)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: ABS/TCS Control Unit Connector B (16P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

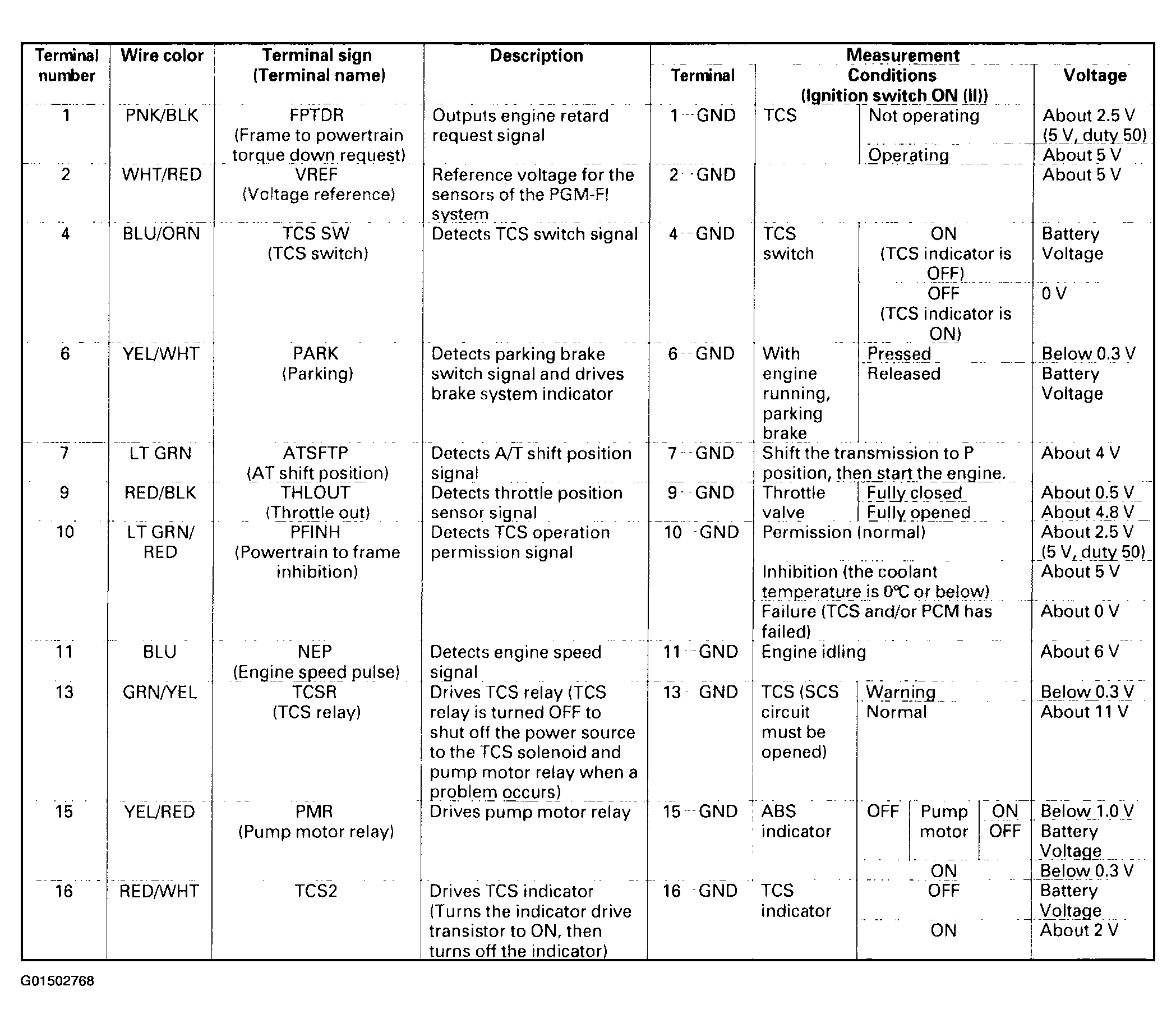

Fig 2: ABS/TCS Control Unit Inputs & Outputs For Connector B (16P) Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
