System Charging
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
- Be careful when connecting service equipment.
- Do not breathe refrigerant or vapor.
Use only service equipment that is U.L.-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.
If accidental system discharge occurs, ventilate work area before resuming service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

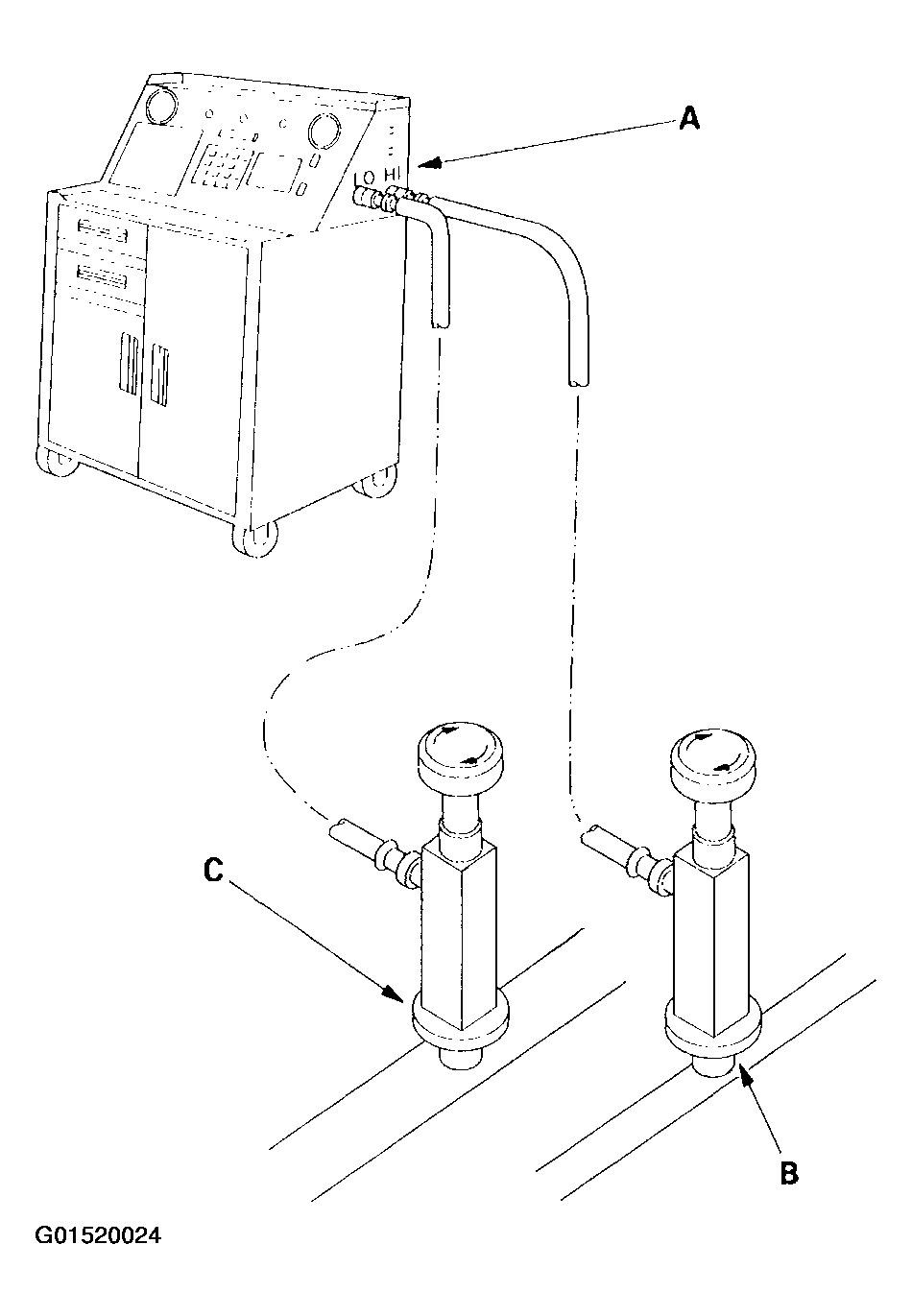

- Connect a R-134a refrigerant recovery/recycling/charging station (A) to the high-pressure service port (B) and the low-pressure service port (C), as shown, following the equipment manufacturer's instructions.
- Evacuate the system (see System Evacuation ).
- Add the same amount of new refrigerant oil to the system that was removed during recovery. Use only DENSO ND-OIL 8 refrigerant oil.
- Charge the system with the specified amount of R-134a refrigerant. Do not overcharge the system; the compressor will be damaged.
Select the appropriate units of measure for your refrigerant charging station.
Refrigerant capacity with rear A/C:
- 850 to 900 g
- 0.85 to 0.90 kg
- 1.8 to 1.9 lbs
- 30.0 to 31.7 oz.
Refrigerant capacity without rear A/C:
- 600 to 650 g
- 0.60 to 0.65 kg
- 1.3 to 1.4 lbs
- 21.2 to 22.9 oz.
- Check for refrigerant leaks (see Refrigerant Leak Test ).
- Check for system performance (see A/C System Test ).
