Circuit Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Connector A terminals are identified by squares on following circuit diagrams. Connector A terminals are identified by circles.

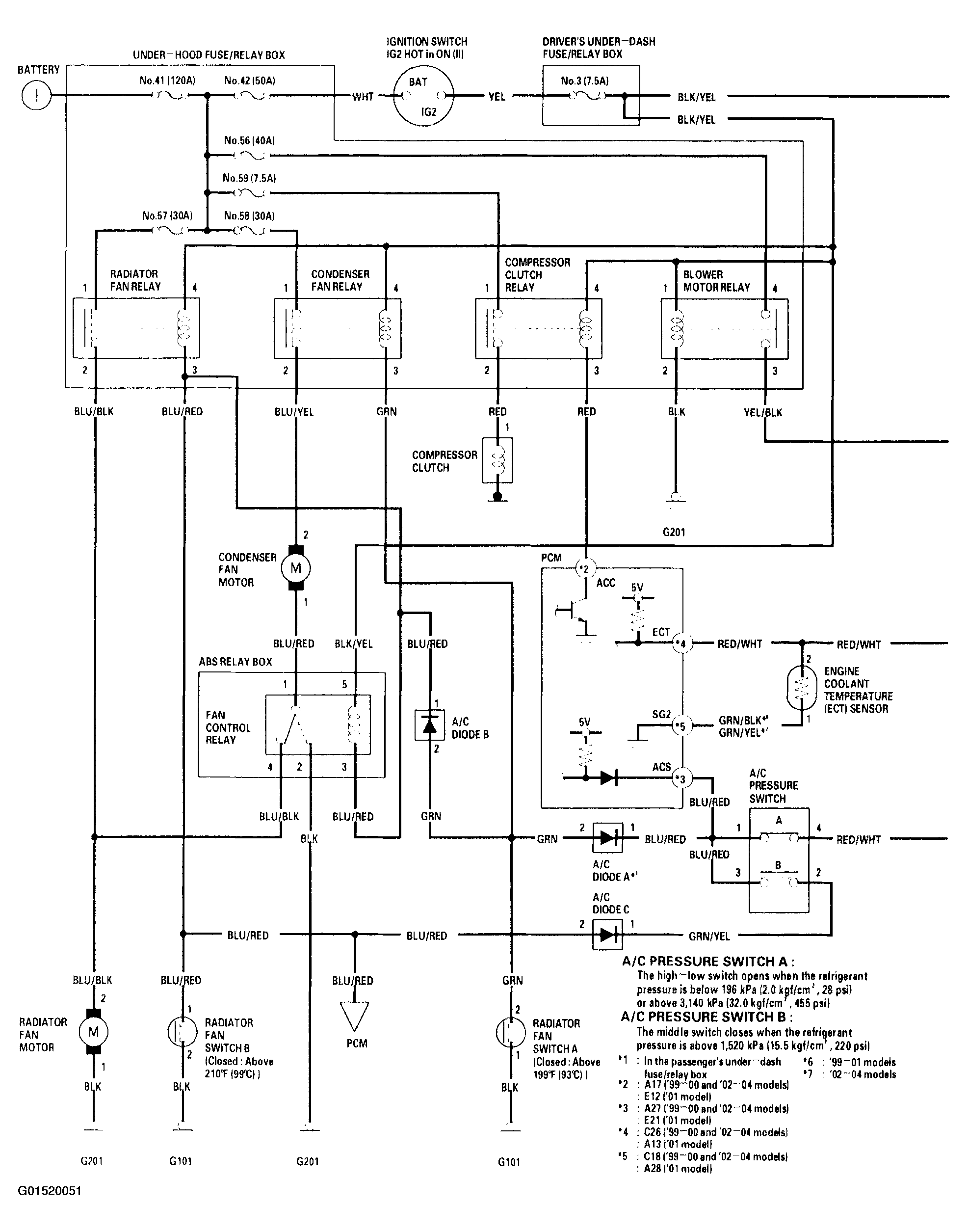

Fig 1: Climate Control Circuit Diagram (Without Navigation System - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

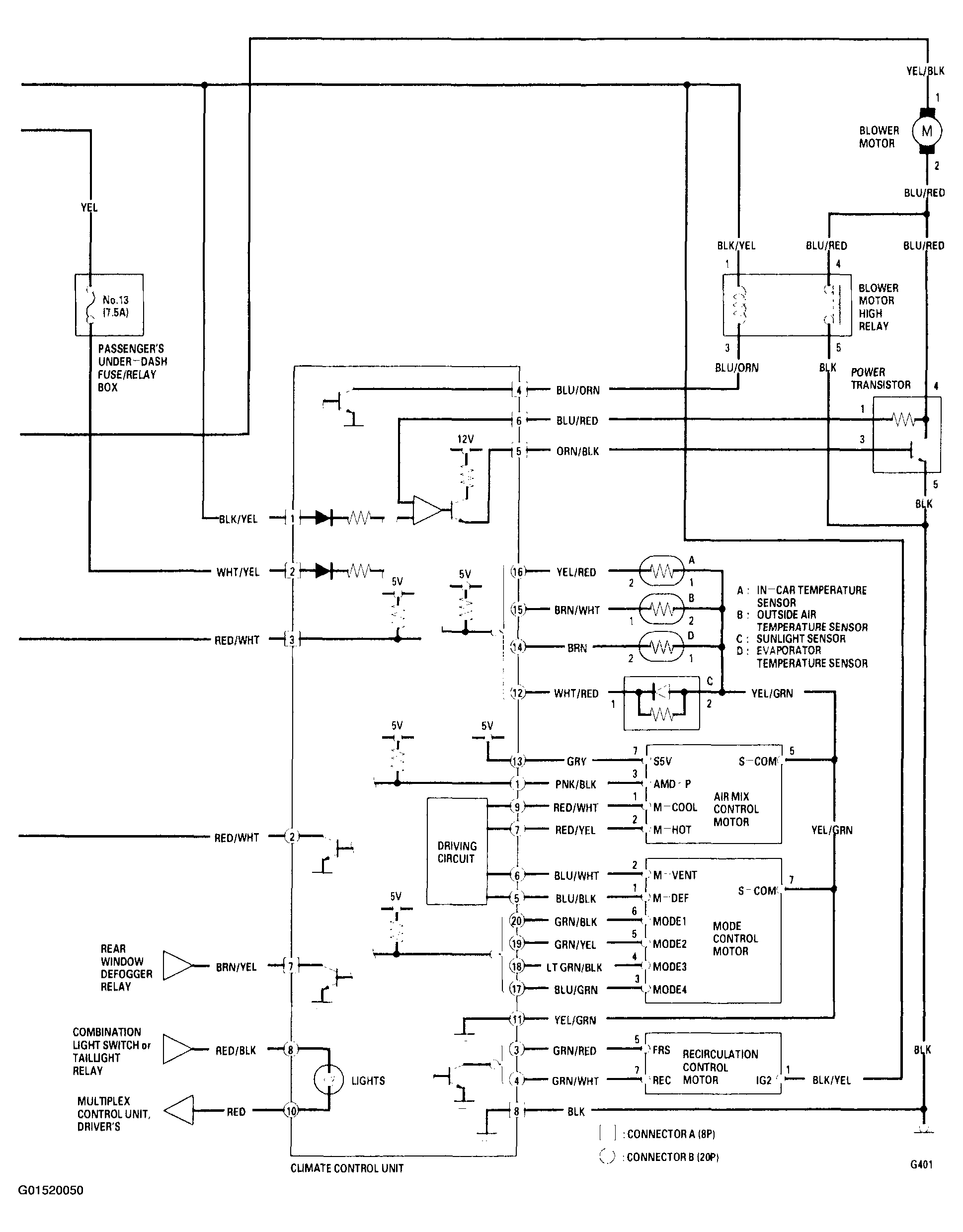

Fig 2: Climate Control Circuit Diagram (Without Navigation System - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

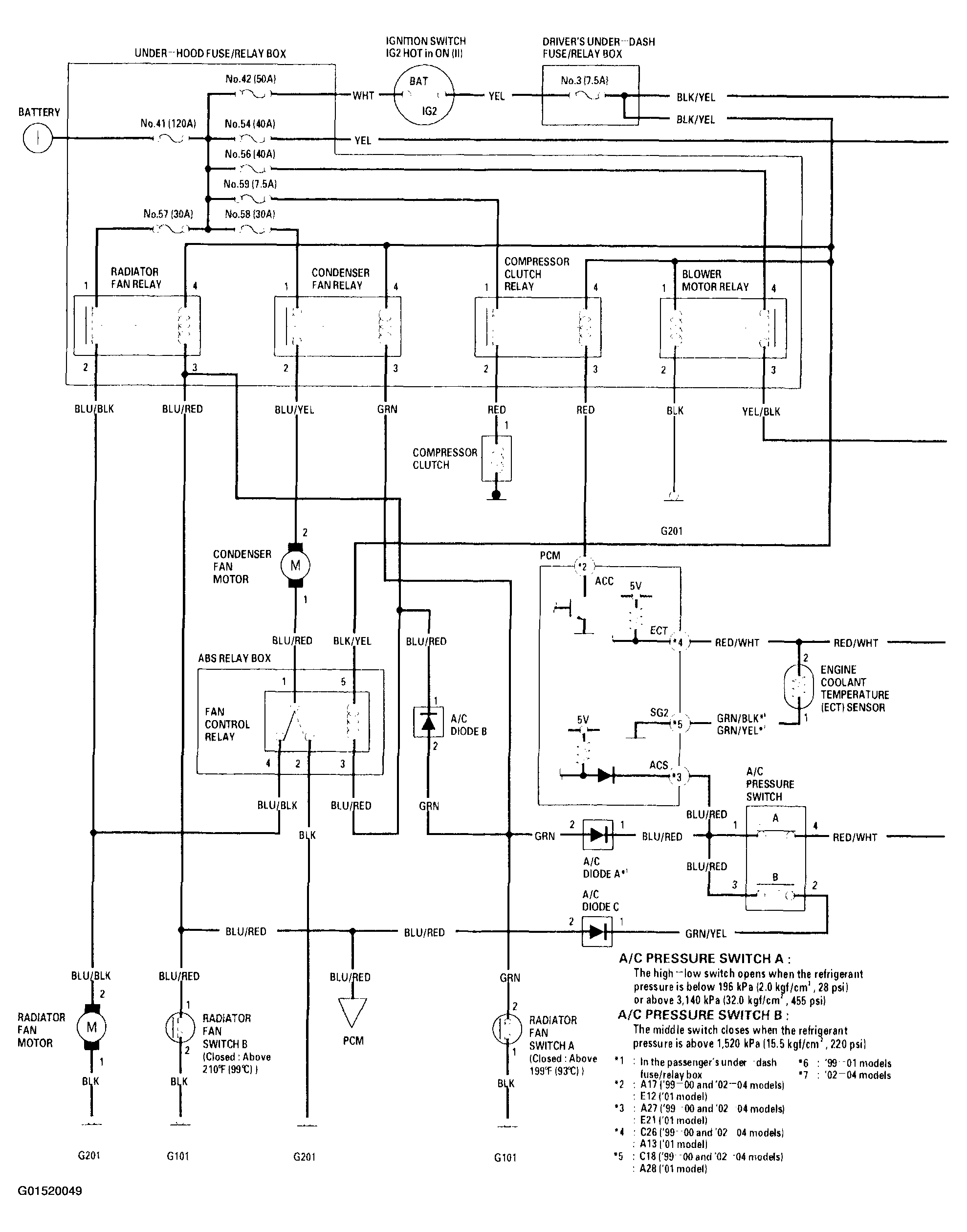

Fig 3: Climate Control Circuit Diagram (With Navigation System - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

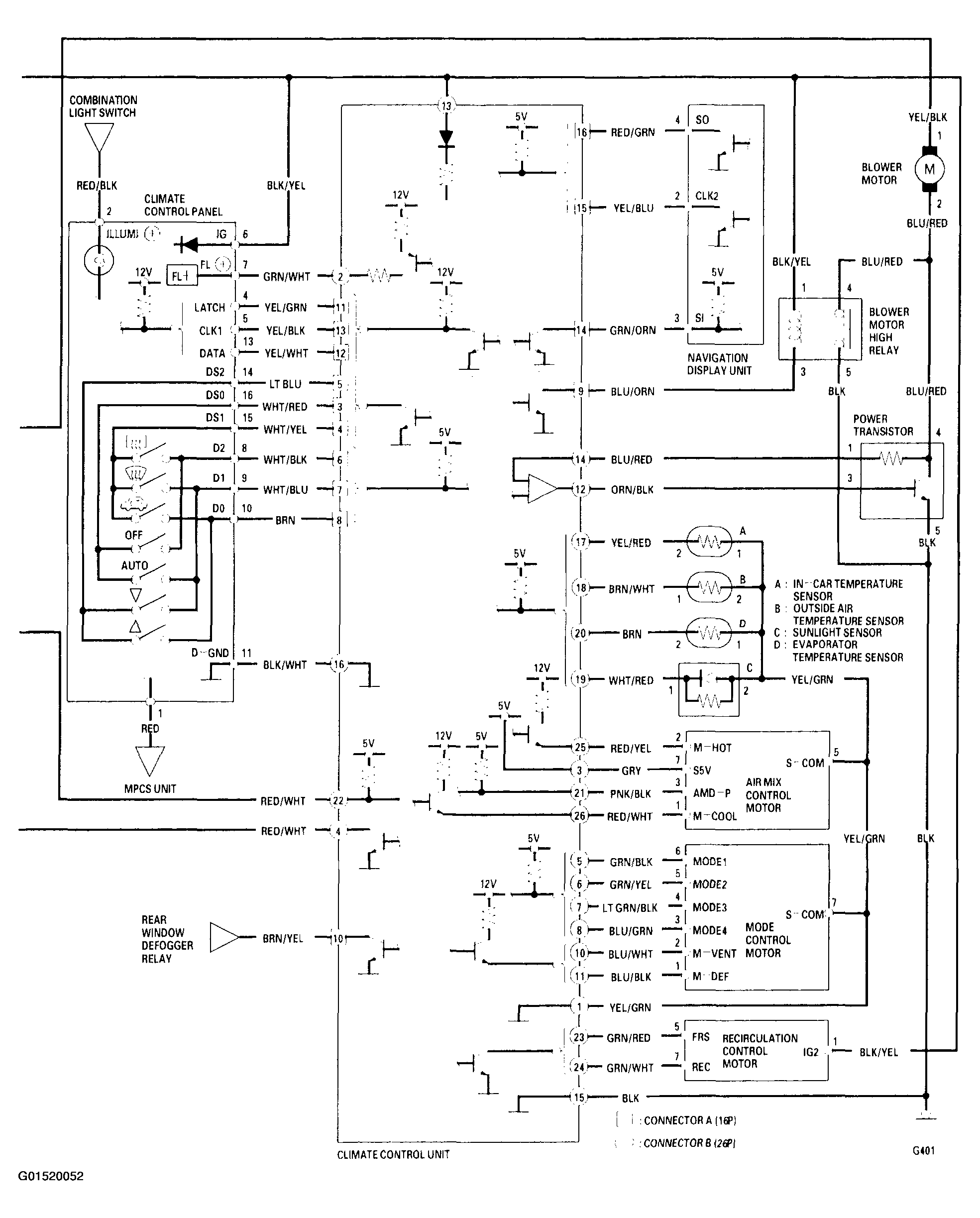

Fig 4: Climate Control Circuit Diagram (With Navigation System - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
