Connecting Rod Journal Code Locations

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

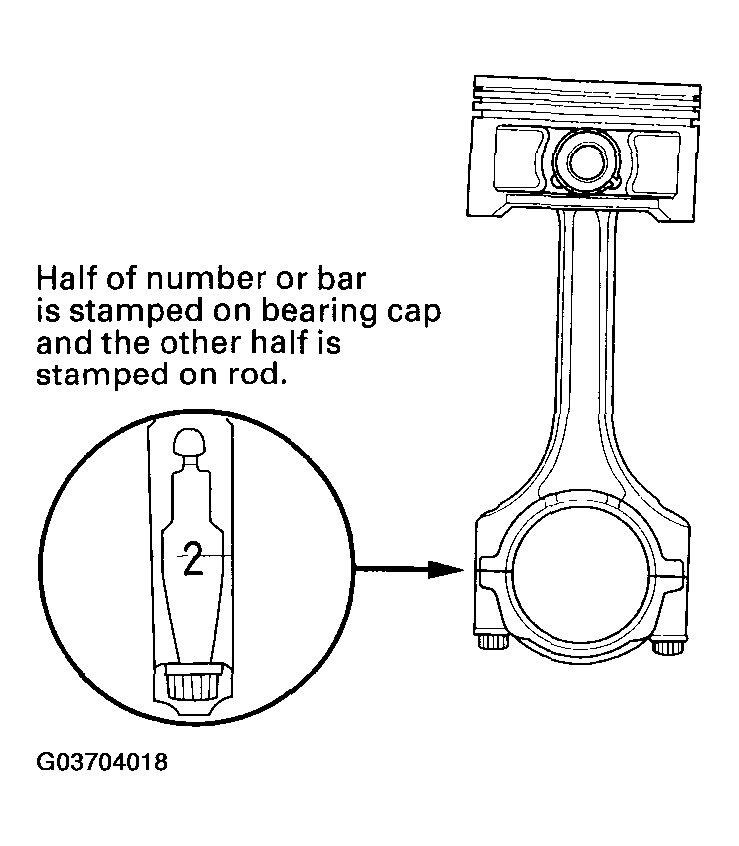

Fig 1: Locating Connecting Rod Journal Code
G03704018Courtesy of AMERICAN HONDA MOTOR CO., INC.

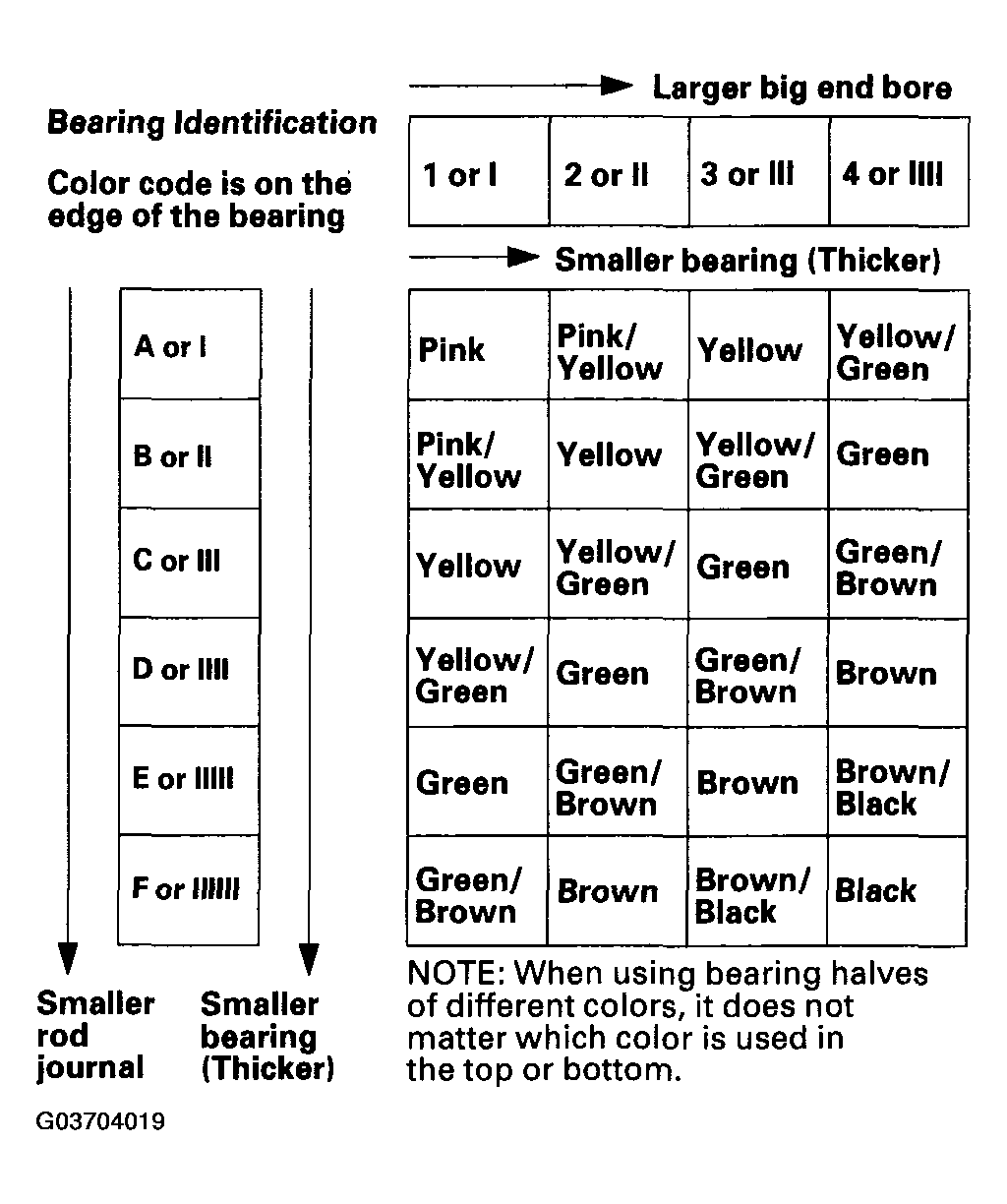

Fig 2: Connecting Rod Journal Code Specification Chart
G03704019Courtesy of AMERICAN HONDA MOTOR CO., INC.
