Engine Mount Control Unit Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION ), and the right kick panel (see step 2 in TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Disconnect the engine mount control unit 20P connector (A).

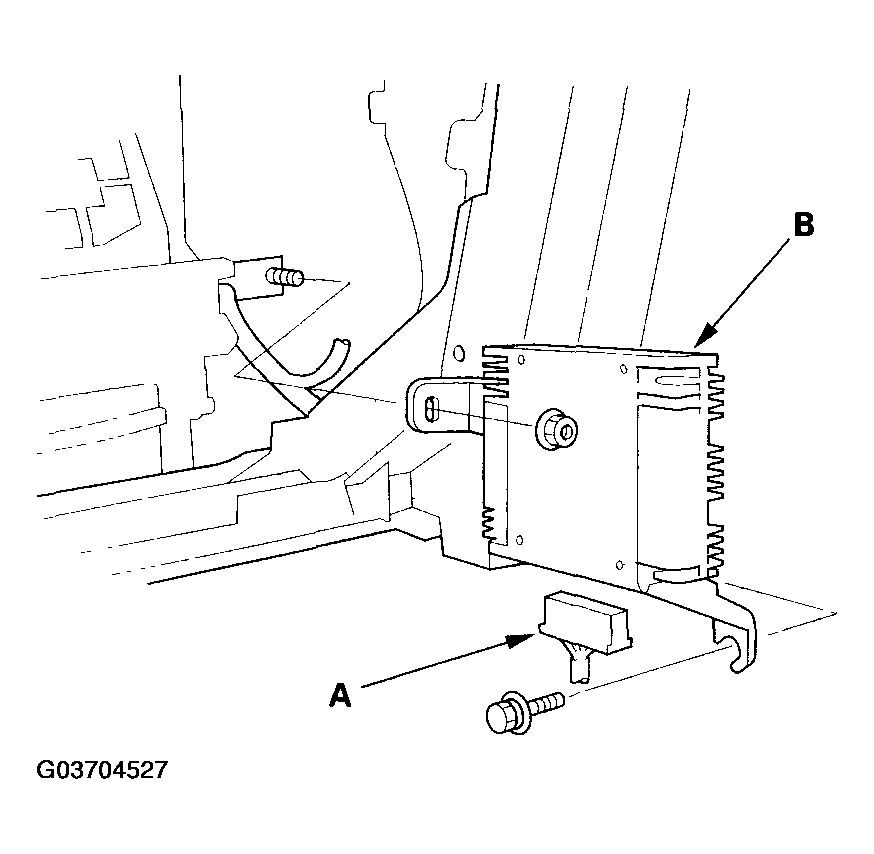

    Fig 1: Disconnecting Engine Mount Control Unit 20P Connector
    G03704527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the engine mount control unit (B).
  4. Install the engine mount control unit in the reverse order of removal.
