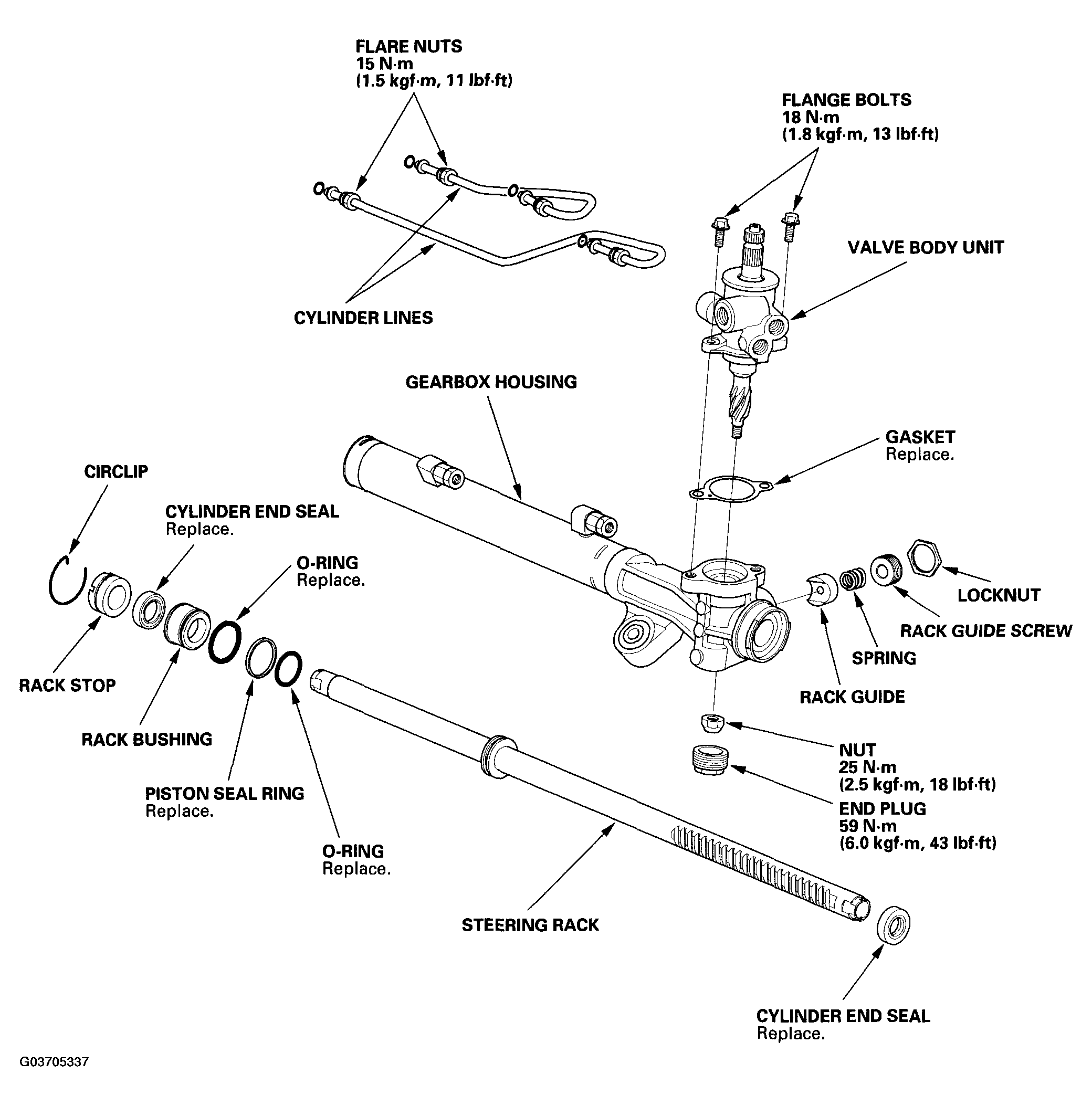

Exploded View
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- Driver handle, 480 mm 070GD-0010100
- Attachment, 24 x 26 mm 07746-0010700
- Pilot, 22 mm 07746-0041000
- Driver 07749-0010000
- Attachment, 42 x 47 mm 07746-0010300
- Piston seal ring guide, 42 mm 07ZAG-S7A0100
- Piston seal ring sizing tool, 42 mm 07ZAG-S7A0200
- Pincer Oetiker 1098, or equivalent, commercially available
NOTE:
Refer to the EXPLODED VIEW
as needed during the following procedure.
