A/C Refrigerant Oil Replacement
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Recommended PAG oil: DENSO ND-OIL 8
- P/N 38897-PR7-A01AH: 120 mL (4fl.oz)
- P/N 38899-PR7-A01: 40 mL (1 1/3fl.oz)
Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.

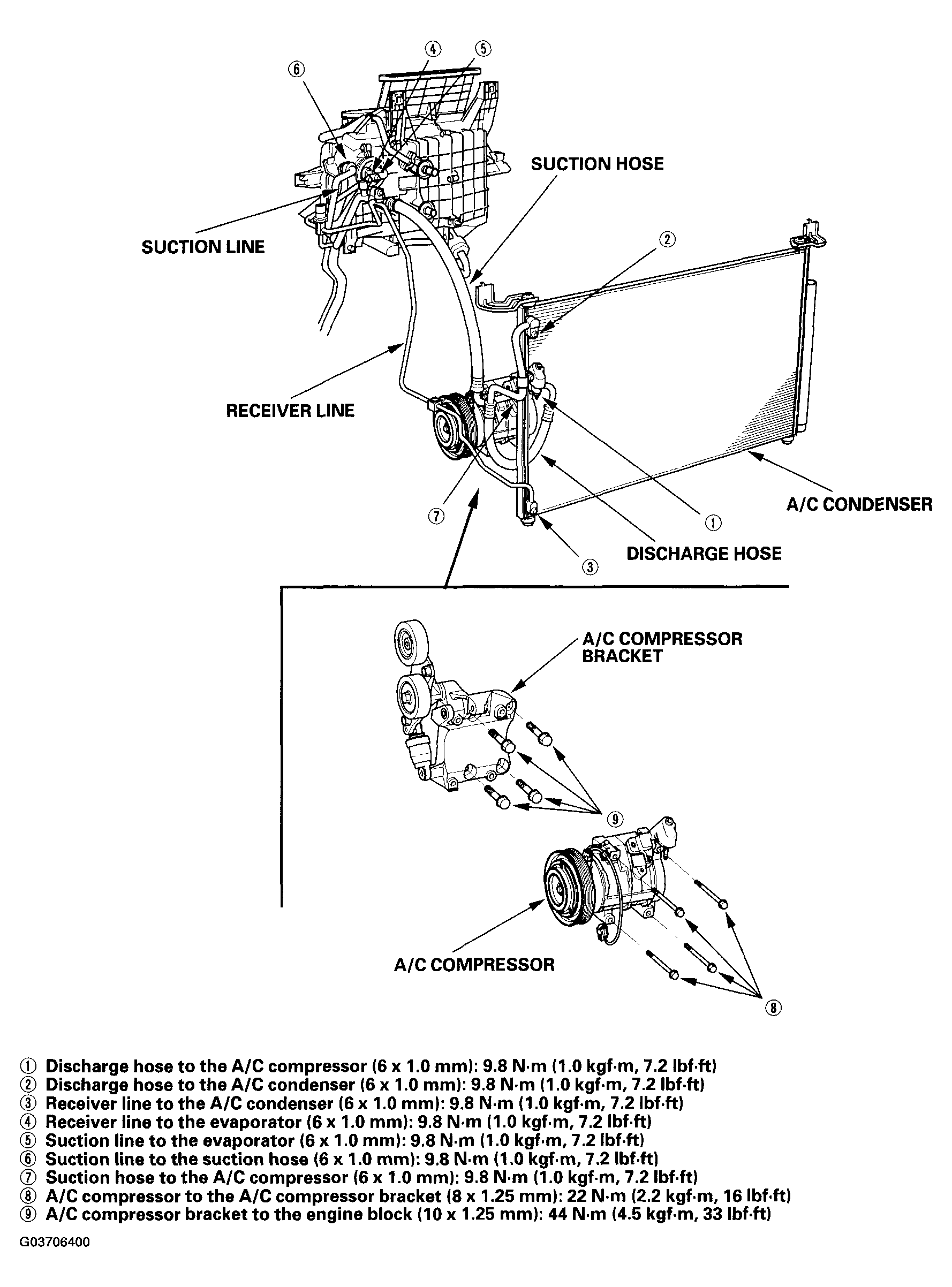

| A/C condenser | 50 mL (1 2/3 fl. oz) |
| Evaporator | 40 mL (1 1/3 fl. oz) |
| Rear evaporator | 40 mL (1 1/3 fl. oz) |
| Line or hose | 10 mL (1/3 fl. oz) |
| Leakage repair | 25 mL (5/6 fl. oz) |
| A/C compressor | For A/C compressor replacement, subtract the volume of oil drained from the removed A/C compressor from 180 mL (6 fl. oz), and drain the calculated volume of oil from the new A/C compressor: 180 mL (6 fl.oz) - Volume of removed A/C compressor = Volume to drain from new A/C compressor |
NOTE:
Even if no oil is drained from the removed A/C compressor, don't drain more than 50 mL (1 2/3 fl.oz) from the new A/C compressor.
