Alarm Module: Locations

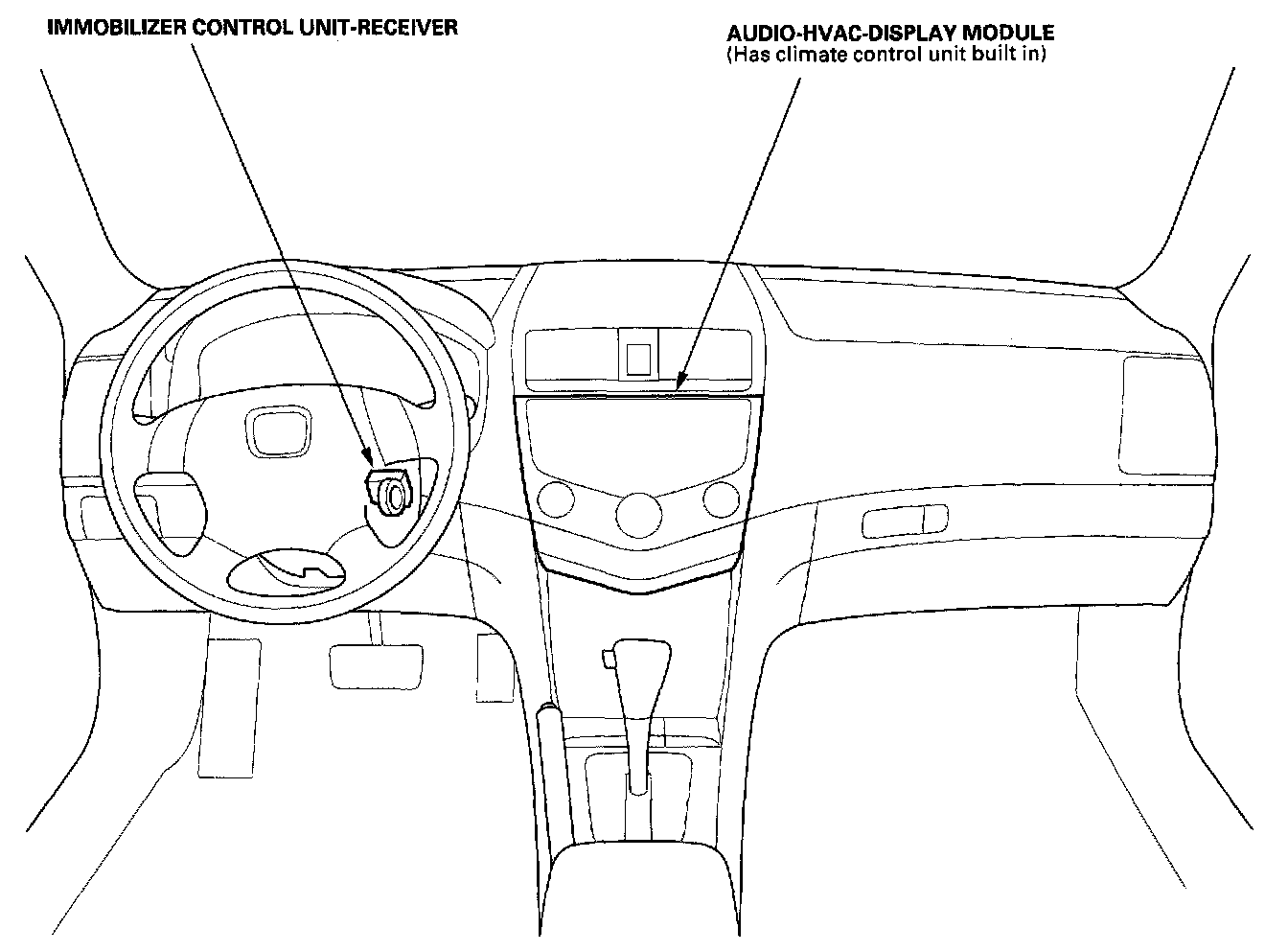

Relay And Control Unit Locations - Dashboard:

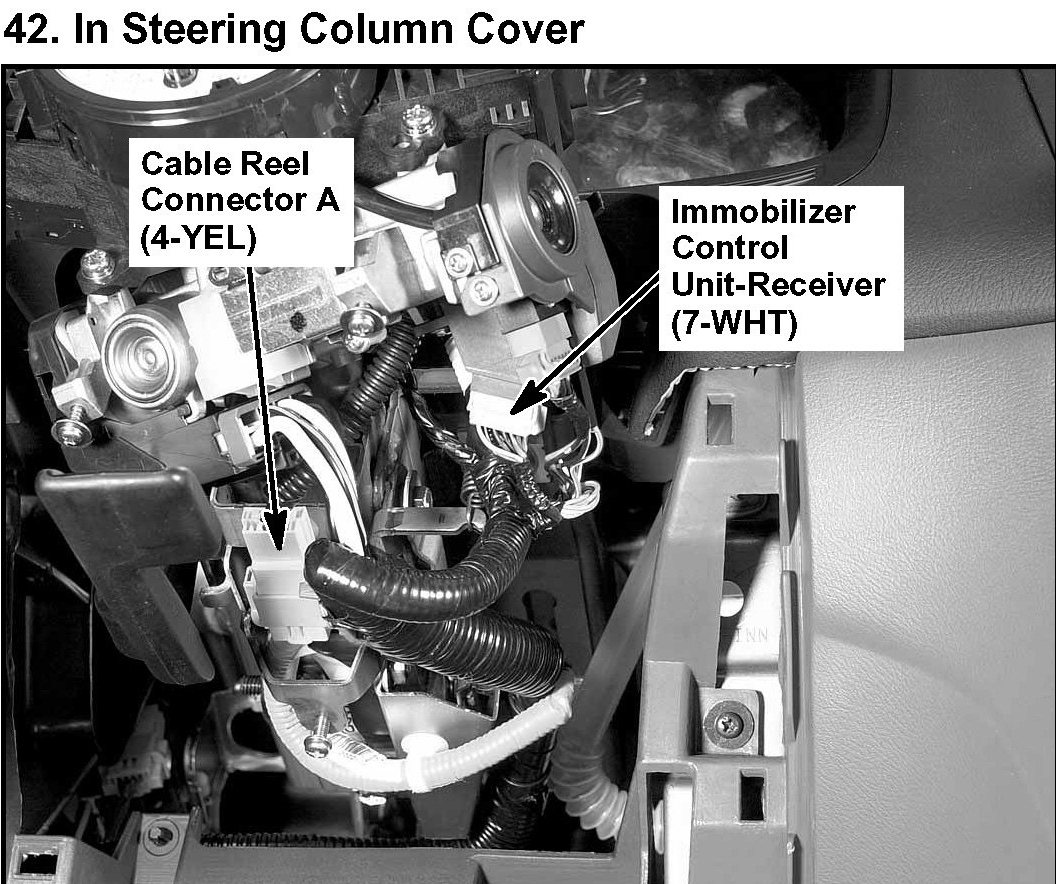

42. In Steering Column Cover:

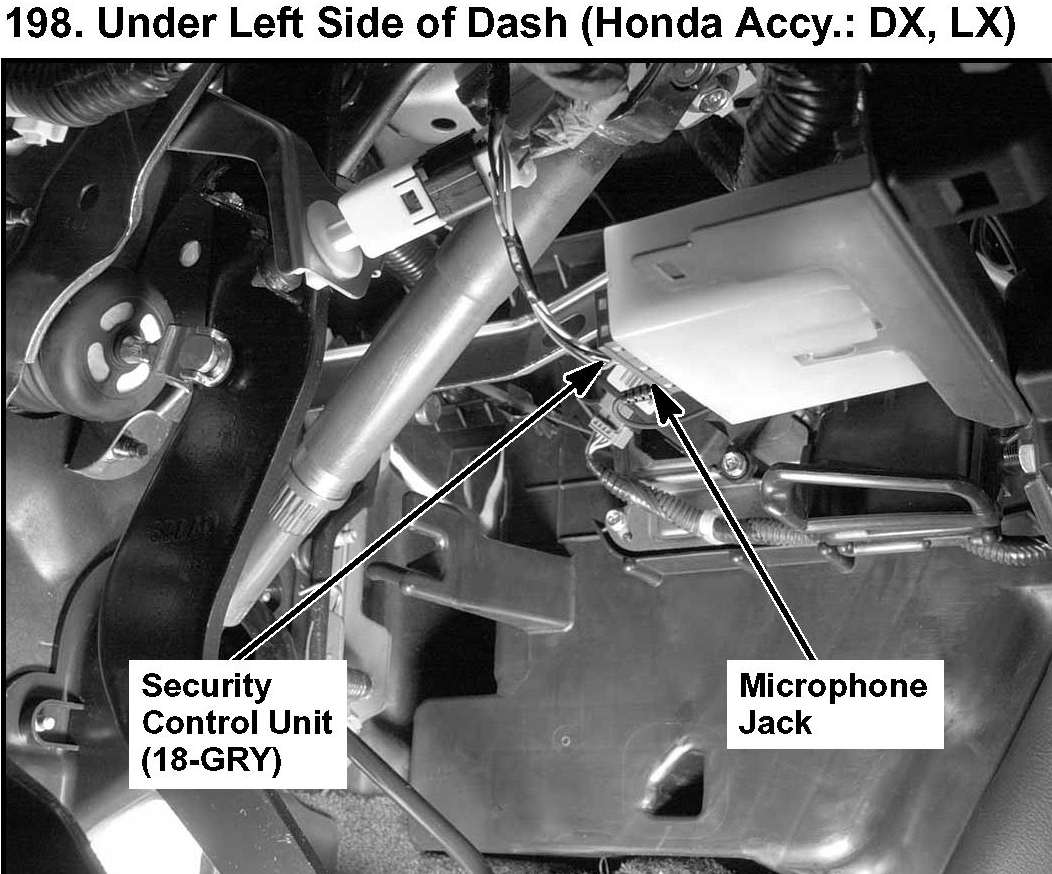

198. Under Left Side Of Dash (Honda Accy.: DX, LX):
