Navigation Module: Locations

Relay And Control Unit Locations - Roof And Trunk (4-door):

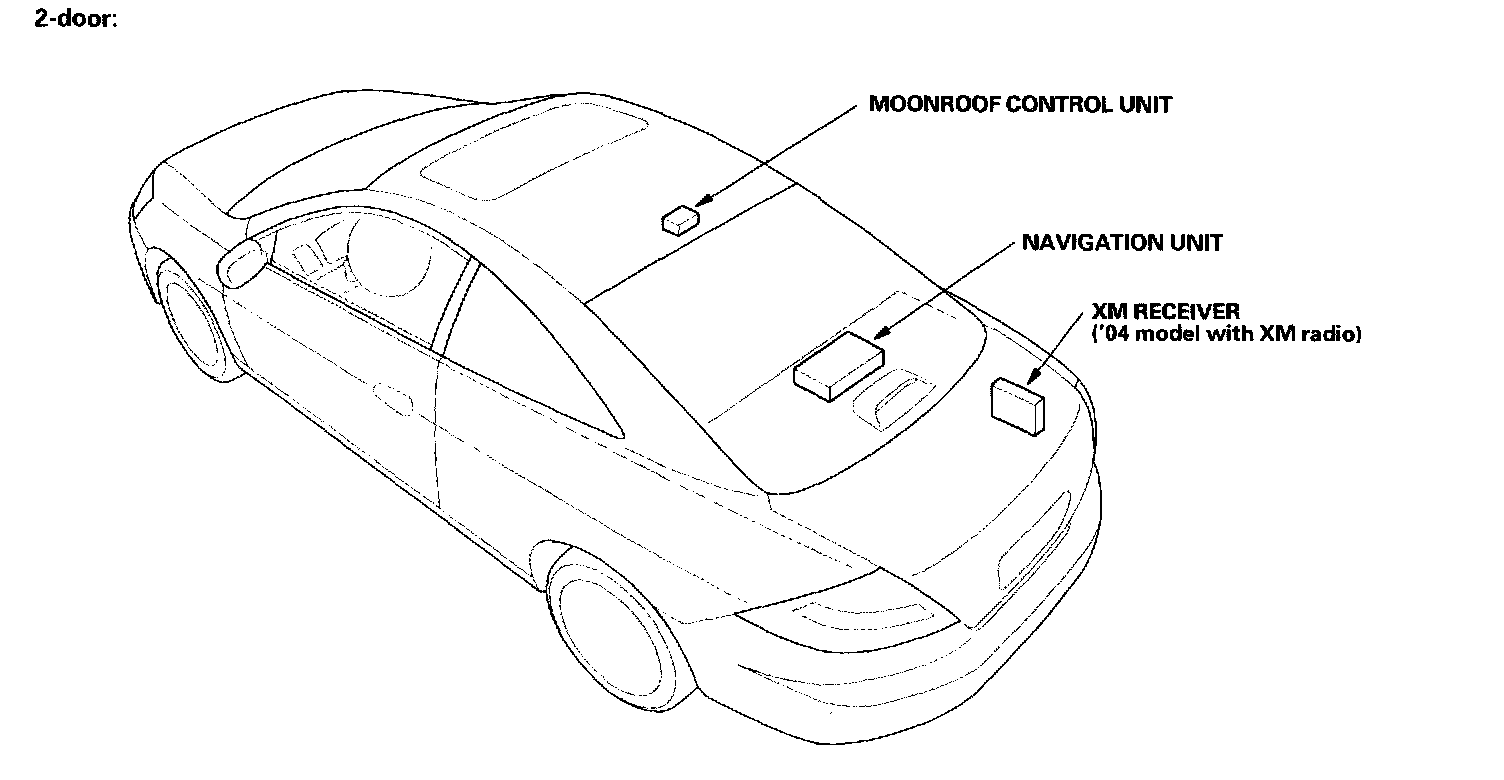

Relay And Control Unit Locations - Roof And Trunk (2-door):

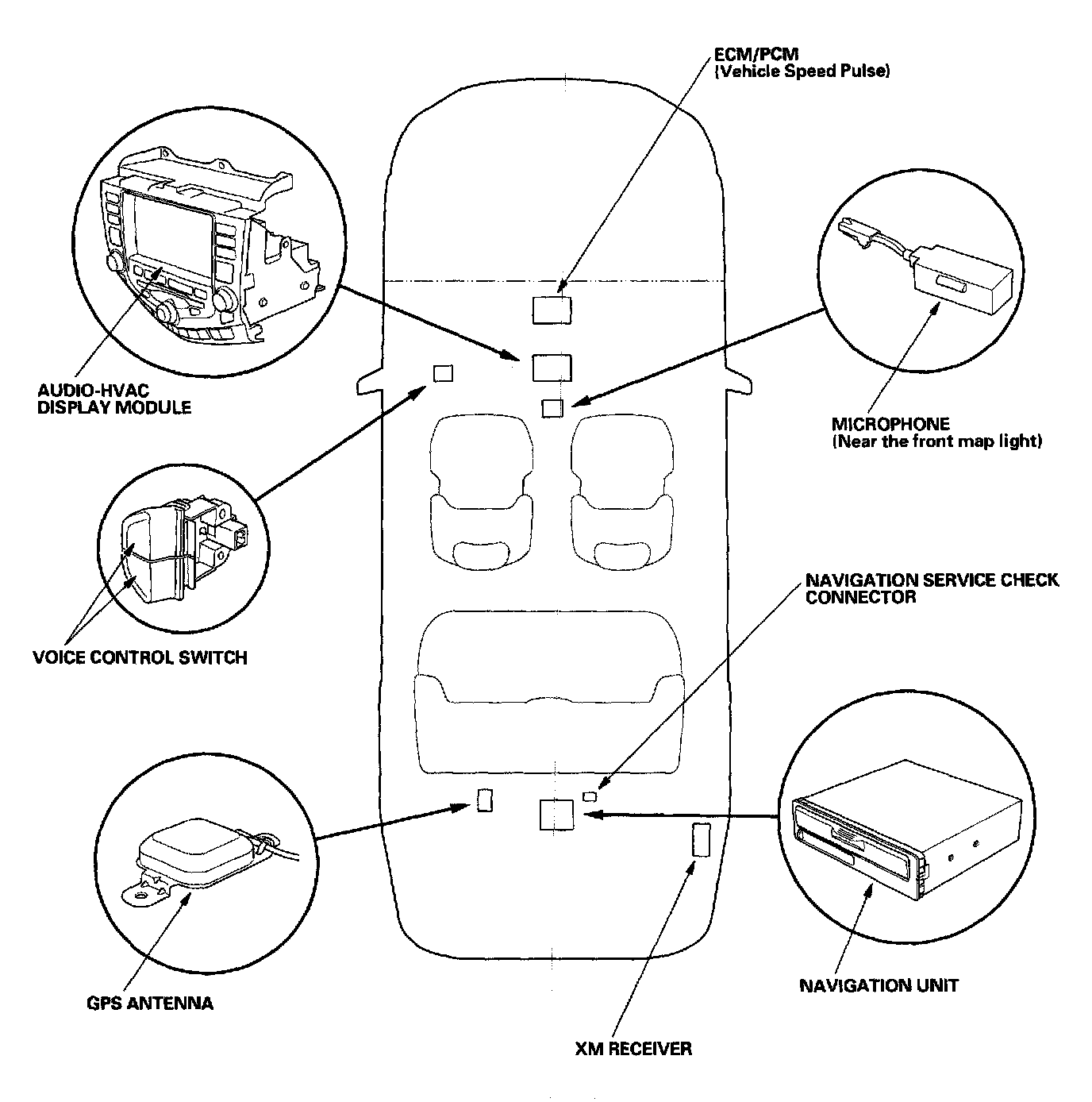

Navigation System Component Location Index:

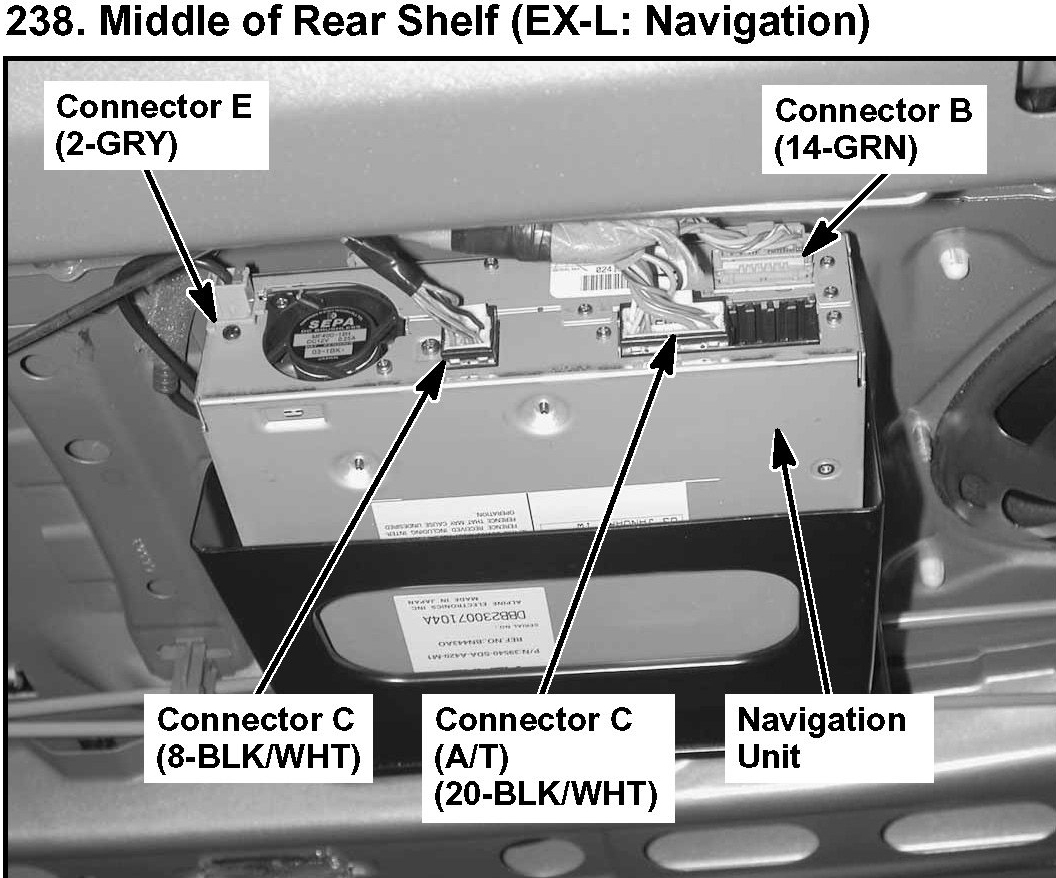

238. Middle Of Rear Shelf (EX-L: Navigation):

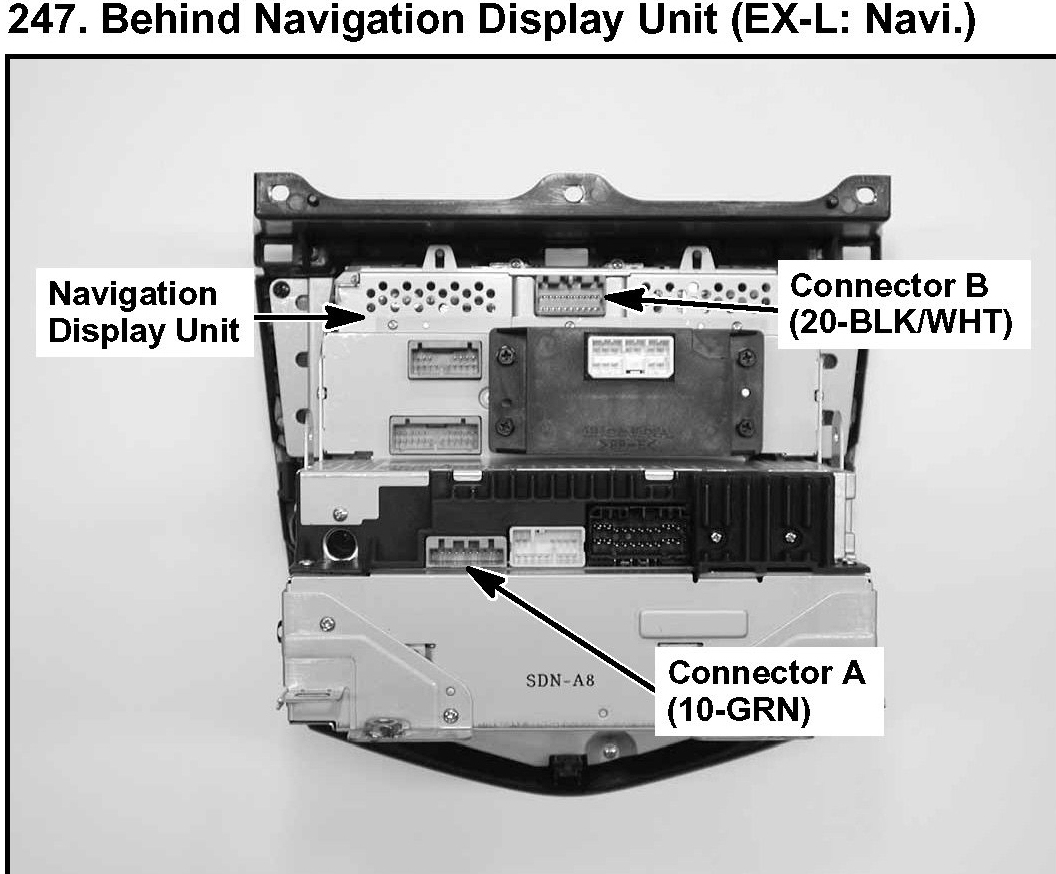

247. Behind Navigation Display Unit (EX-L: Navigation):

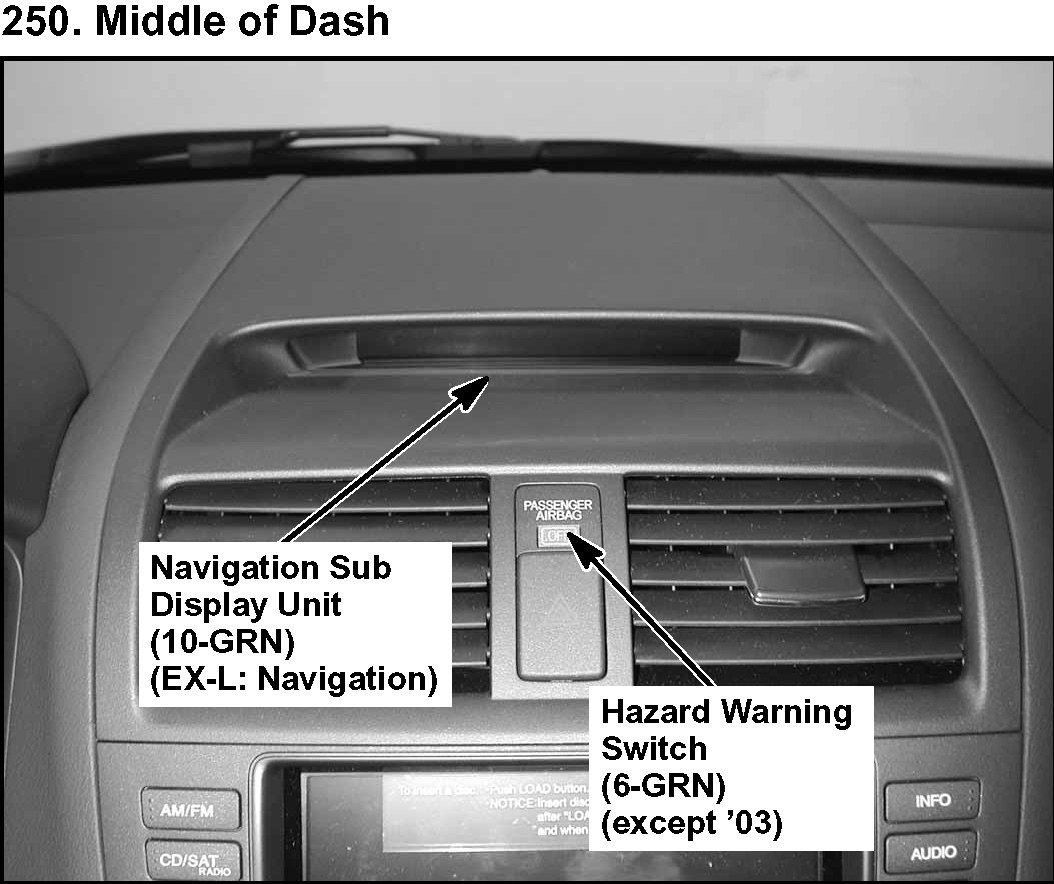

250. Middle Of Dash:
