Frame: Specifications

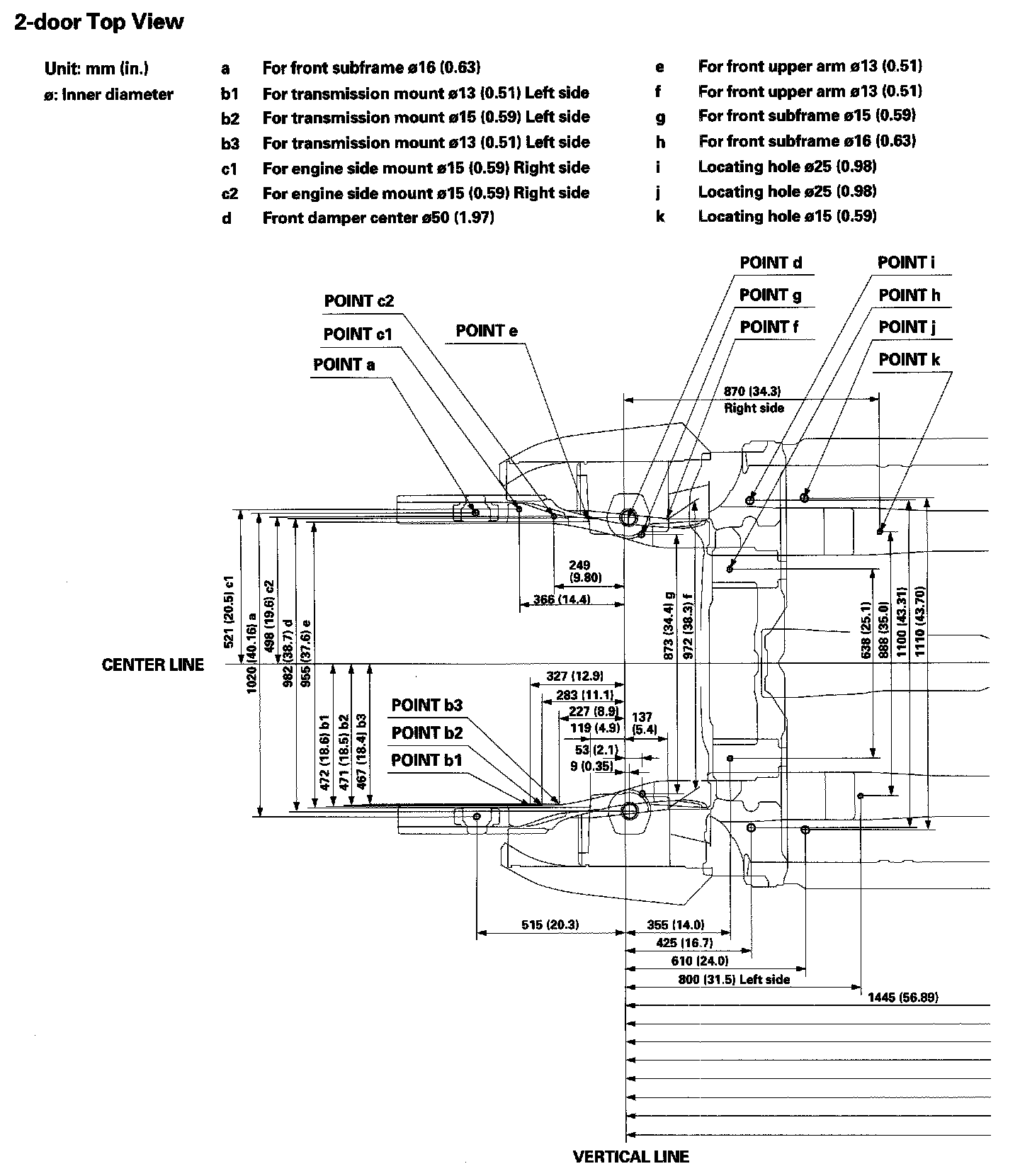

Frame Repair Chart - 2-door Top View Part 1 Of 2:

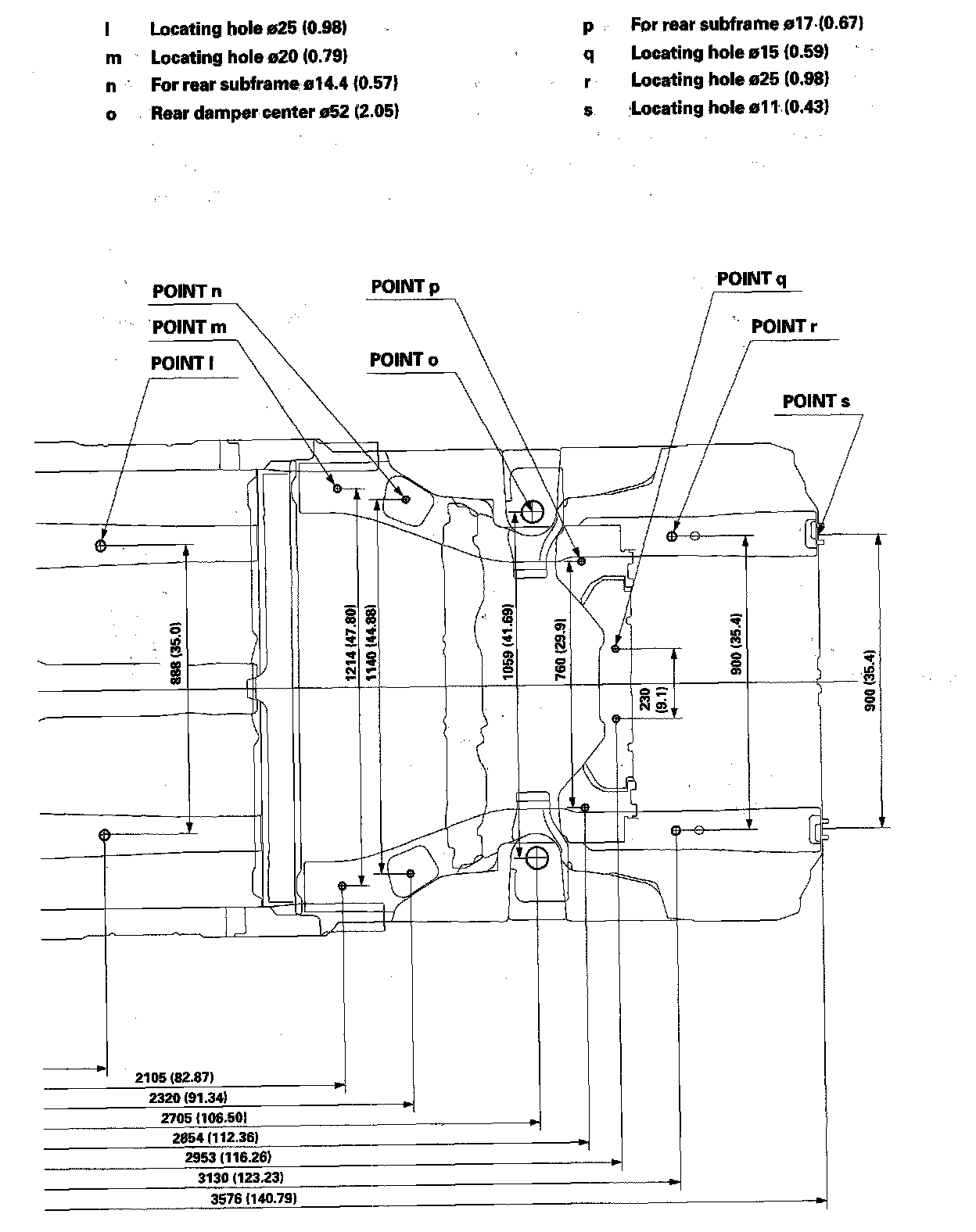

Frame Repair Chart - 2-door Top View Part 2 Of 2:

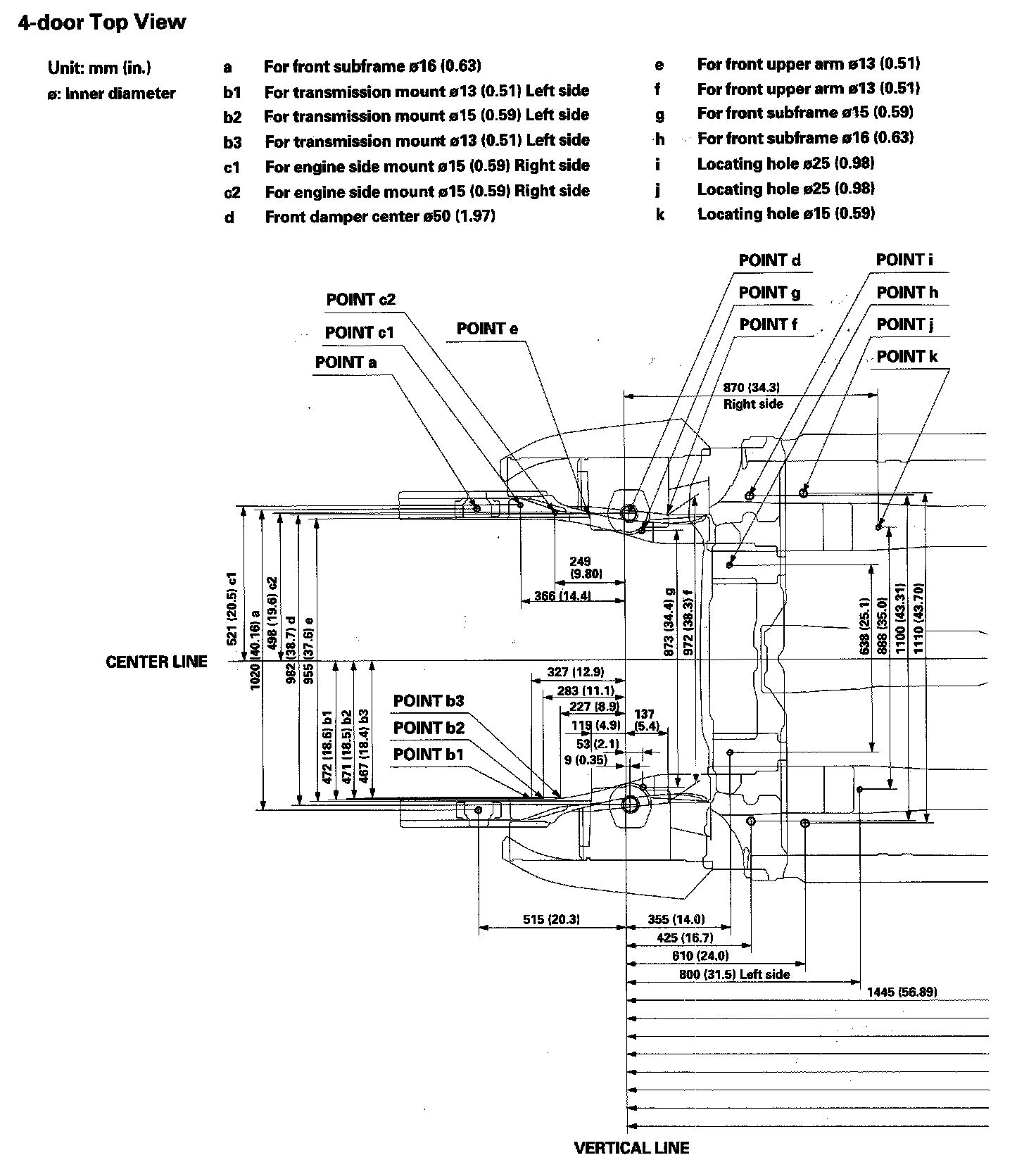

Frame Repair Chart - 4-door Top View Part 1 Of 2:

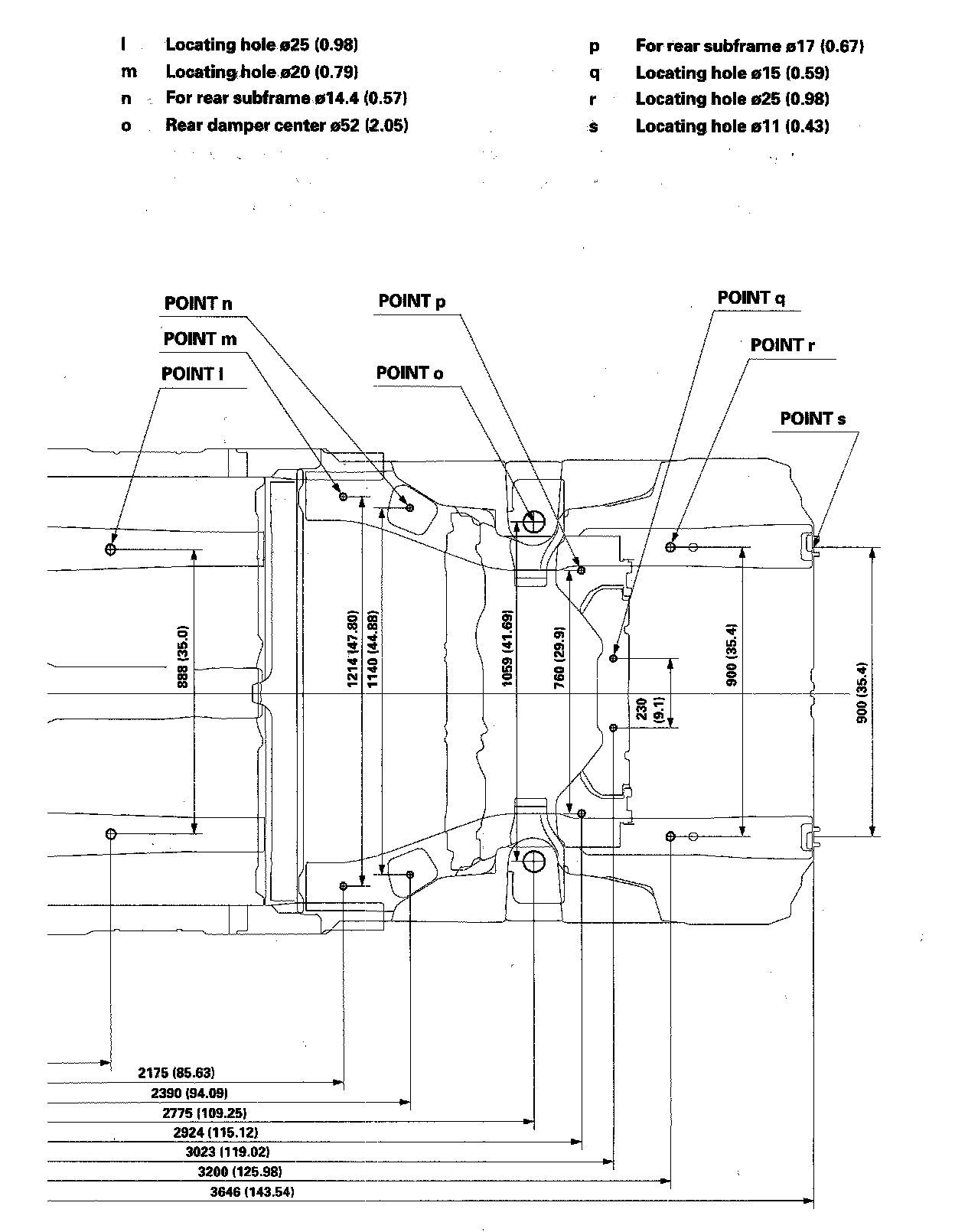

Frame Repair Chart - 4-door Top View Part 2 Of 2:

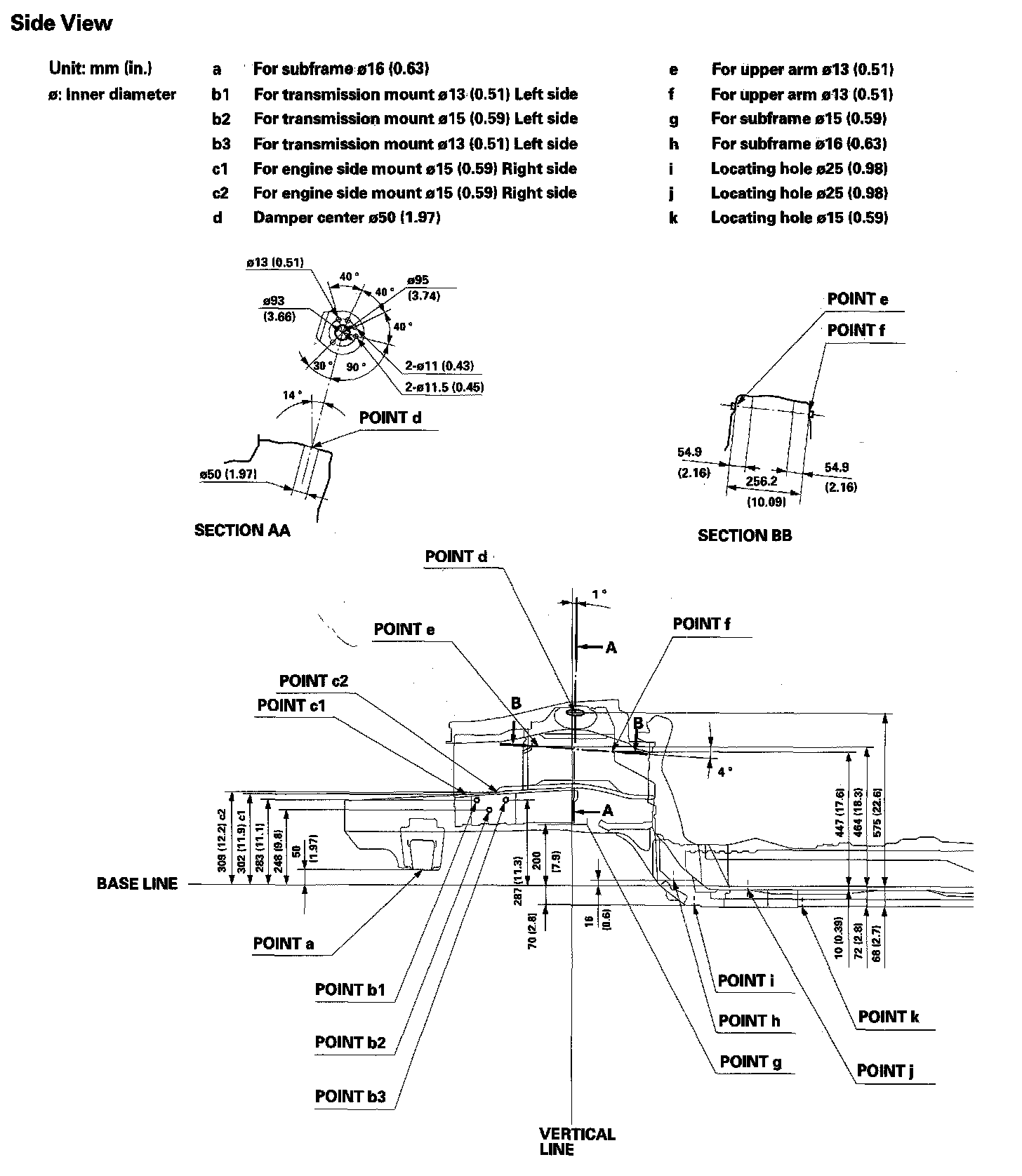

Frame Repair Chart - Side View Part 1 Of 2:

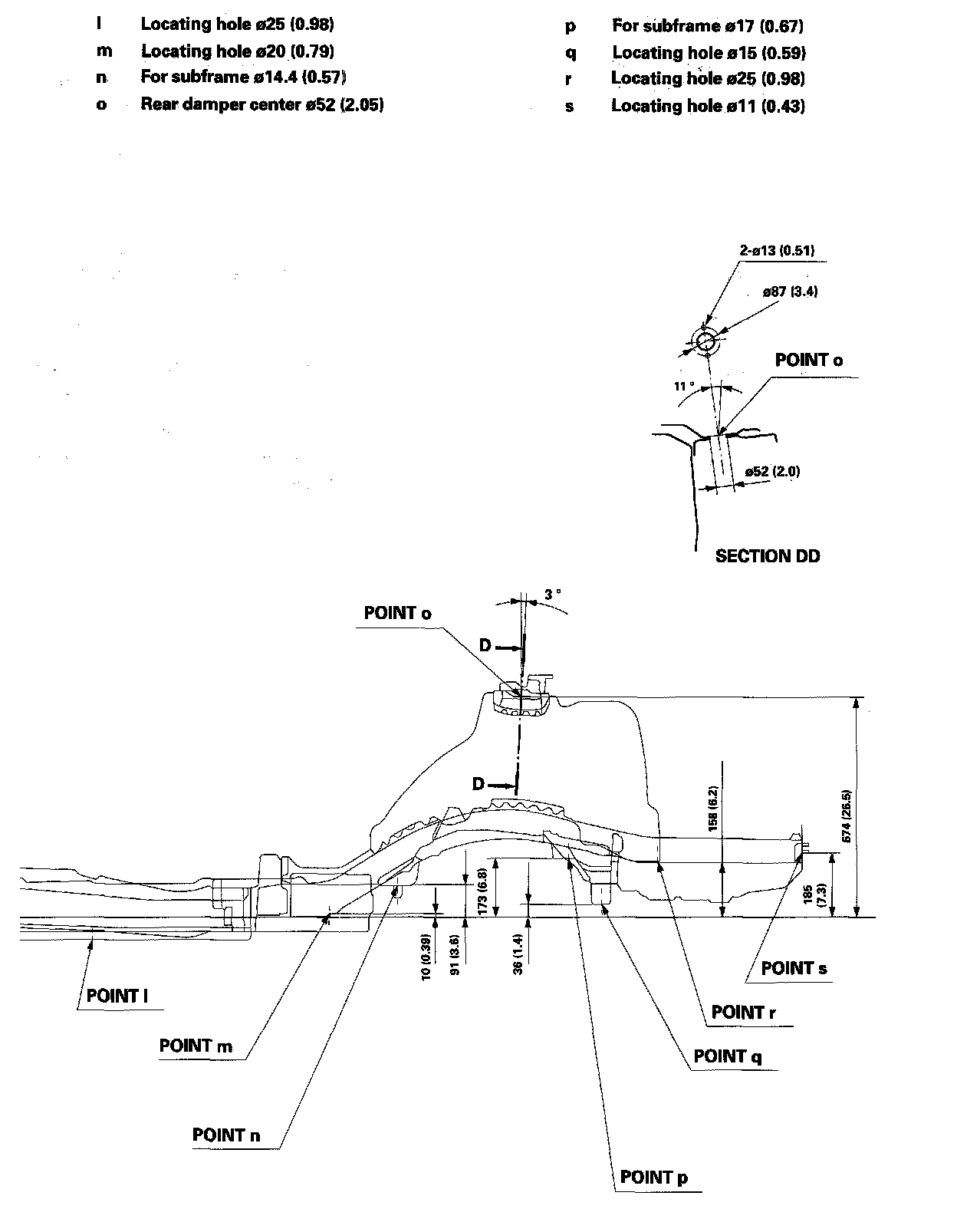

Frame Repair Chart - Side View Part 2 Of 2:
